These 8-, 16-, or 24-port Araknis Networks™ 100-Series Unmanaged Gigabit Switches provide powerful and reliable enterprise-grade networking solutions. They offer support for 1 Gbps on all front-facing ports simultaneously for fast data transmission and reliable video conferencing.
These 8-, 16-, or 24-port Araknis Networks™ 100-Series Unmanaged Gigabit Switches provide powerful and reliable enterprise-grade networking solutions. They offer support for 1 Gbps on all front-facing ports simultaneously for fast data transmission and reliable video conferencing. Designed with IT Datacomm installations in mind, these products feature LEDs and ports on the front for quick patching and diagnostics. Plus, they include rack ears that provide multiple mounting options, and have a fanless design for silent operation. See how the 24-port, 16-port, and 8-port models compare to the competition.
Fanless
Fanless design for silent operation
Gigabit
10/100/1000 Mbps on all ports
Multi-Mounting
Versatile mounting options with included rack ears
Metal Housing
Durable, high quality design
Plug-n-Play
Easy setup with zero configuration
When it comes to big bandwidth and high-speed Ethernet this switch has you covered with a whopping 1 Gbps on every port at the same time. It's perfect for data transmission, video conferencing, and supporting several high-bandwidth devices such as Apple® TVs, Smart TVs, and more. And thanks to its enterprise-grade engineering and performance, you can rest assured that it will stack up against the competition.

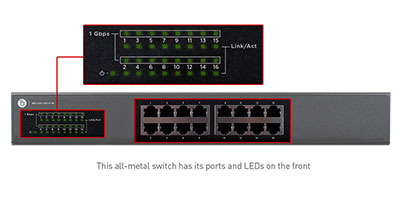

The standard design for IT/Datacomm installs, this all-metal switch has its ports and LEDs on the front, making it easy to see when links are present and connectivity between devices is active. Plus this front-facing design allows for simple moves, adds, and changes (MACs) - perfect for creating agile environments.
When it comes to rack mounting, versatility is key. That's why this switch comes equipped with rack ears that have multiple holes to allow for flush and recessed placement. And thanks to their square design you can flip them around to mount on the wall or ceiling if needed. And of course feet are included as well, for simple shelf or on-cabinet placement.
Not all networking gear lives in the IT closet, so you'll appreciate the completely fanless design that provides silent operation no matter where you put it. Openings on the sides provide easy ventilation for added reliability without any distracting fan noise.
| AN-100-SW-F-24 | AN-100-SW-F-16 | AN-100-SW-F-8 |
|---|---|---|
2 MB |
2 MB |
2 MB |
35.7 Mpps |
23.8 Mpps |
11.9 Mpps |
9 K |
9 K |
9 K |
8 K |
8 K |
4 K |
512 KB |
512 KB |
128 KB |
48 Gbps |
32 Gbps |
16 Gbps |
Black |
Black |
Black |
13" x 1.7" x 8.28" |
13" x 1.7" x 8.28" |
9.1" x 1.73" x 4.84" |
10 to 90% |
10 to 90% |
10 to 90% |
32 - 104° F |
32 - 104° F |
32 - 104° F |
11W |
8W |
3.5W |
100-240V AC, 50/60 Hz |
100-240V AC, 50/60 Hz |
100-240V AC, 50/60 Hz |
4.4 lbs |
4.0 lbs |
2.0 lbs |
64KB (SRAM) |
64KB (SRAM) |
|
24 |
16 |
8 |
Flash Memory |
Forwarding Rate |
Jumbo Frame Support |
MAC Table Size |
Packet Buffer |
Switching Capacity |
Color |
Dimensions (W x H x D) |
Operating Humidity |
Operating Temperature |
Power Consumption |
Line Voltage |
Weight |
SDRAM Memory |
RJ-45 1000BASE-T Ports |
Araknis Networks® products have a 2-Year Limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products which have been abused, modified, or disassembled. Products to be repaired under this warranty must be returned to Snap One or a designated service center with prior notification and an assigned return authorization number (RA).
