Episode® 650 Commercial Series 70-Volt Pendant Speaker with Gripple Kit (Each)
KIT-ECS-650-PND4-WHT
Click to enlarge
Description
Specs
Support
Description
Description
Ideal for spaces with tall, open ceilings, this Pendant Speaker gets the sound down where you need it and features wide dispersion that’s perfect for background music and paging applications. Thanks to smart engineering that includes a Gripple™ cable mounting kit and carrying handle, installing it has never been easier. Equipped with top-quality components, a two-way design and outstanding driver voicing, this speaker provides exceptional sound clarity while hitting dynamic highs and lows.
Episode® 650 Commercial Series Pendant Speaker with Woofer and Gripple™ Kit
Ideal for spaces with tall, open ceilings, this Pendant Speaker gets the sound down where you need it and features wide dispersion that’s perfect for background music and paging applications. Thanks to smart engineering that includes a Gripple™ cable mounting kit and carrying handle, installing it has never been easier. Equipped with top-quality components, a two-way design and outstanding driver voicing, this speaker provides exceptional sound clarity while hitting dynamic highs and lows.
Smart Engineering

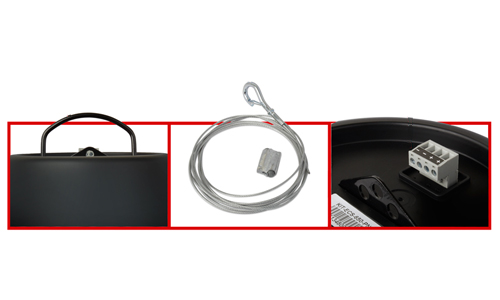

This pendant features a built-in handle for easier carrying. The screw terminal comes preinstalled on the speaker – not in some baggie you forgot about back at ground level. Lastly, the included Gripple cable mounting kit greatly simplifies the hanging process – just throw the 10’ cable over the ceiling grid and insert it into the spring-loaded connector – no tools required. Plus it releases easily, so you can readjust as needed. Note: An extra Gripple cable mounting kit is included to serve as a safety cable when the building code requires.
Premium Components

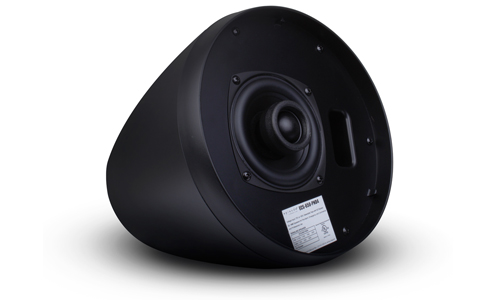

Top-quality components provide uniform sound and wide dispersion that’s perfect for projecting music and paging in large buildings with high, open ceilings. This pendant speaker has a two-way design featuring a 4” Mica-filled polypropylene woofer and 1” silk dome tweeter with neodymium magnet, plus a 1.2” oversized voice coil. Outstanding driver voicing is combined with a 1st order crossover for sound clarity beyond expectations, while a computer-optimized, low-turbulence tube port provides improved low-frequency response.
Tool-Less Tap Settings

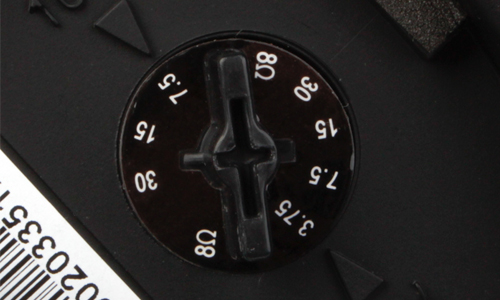

Our tap adjustment is on the top – not hidden behind the grill – so it’s easily accessible. Plus its “handy” tool-less design means you don’t need any tools to adjust it. Available settings are 3.75W, 7.5W, 15W, and 30W taps, plus an option for 8-ohm bypass.
Smarter Packaging
Working on a commercial jobsite where EPS foam isn’t allowed, or tired of cleaning up huge mounds of trash when the job is over? Our environmentally friendly cardboard packaging cuts down on waste – plus we ship everything you need for the install in one box.
UL Listed
This pendant speaker is UL 1480 listed. It is approved for use in fire protective signaling systems – and has passed the stringent standards needed to get the UL stamp of approval.
Specs
Specifications
| KIT-ECS-650-PND4-BLK | KIT-ECS-650-PND6-BLK | KIT-ECS-650-PND4-WHT | KIT-ECS-650-PND6-WHT |
|---|---|---|---|
65Hz - 20kHz |
60Hz - 20kHz |
65Hz - 20kHz |
60Hz - 20kHz |
UL1480 Listed |
UL1480 Listed |
UL1480 Listed |
UL1480 Listed |
Black |
Black |
White |
White |
8.9" |
10.9" |
8.9" |
10.9" |
9.1" |
12.2" |
9.1" |
12.2" |
6 lb |
8.2 lb |
6 lb |
8.2 lb |
130° |
110° |
130° |
110° |
8Ω |
8Ω |
8Ω |
8Ω |
80w |
120w |
80w |
120w |
40w |
60w |
40w |
60w |
84 db |
87 db |
84 db |
87 db |
70v: 3.75w/7.5w/15w/30w, 100v: 7.5w/15w/30w |
70v: 7.5w/15w/30w/60w, 100v: 15w/30w/60w |
70v: 3.75w/7.5w/15w/30w, 100v: 7.5w/15w/30w |
70v: 7.5w/15w/30w/60w, 100v: 15w/30w/60w |
1" Silk Dome with Ferro-fluid cooled Neodymium Magnet |
1" Silk Dome with Ferro-fluid cooled Neodymium Magnet |
1" Silk Dome with Ferro-fluid cooled Neodymium Magnet |
1" Silk Dome with Ferro-fluid cooled Neodymium Magnet |
1.2" Copper on Aluminum Bobbin |
1.2" Copper on Aluminum Bobbin |
1.2" Copper on Aluminum Bobbin |
1.2" Copper on Aluminum Bobbin |
4" Vacuum-formed, Mica-Filled Polypropylene |
6.5" Vacuum-formed, Mica-Filled Polypropylene |
4" Vacuum-formed, Mica-Filled Polypropylene |
6.5" Vacuum-formed, Mica-Filled Polypropylene |
Frequency Response |
Certifications |
Color |
Diameter |
Height |
Weight |
Speaker Dispersion Angle |
Nominal Impedance |
Power Peak |
Power RMS |
Sensitivity |
Transformer Tap Settings |
Tweeter |
Voice Coil |
Woofer |
Support
Manuals and Guides
Sales Resources
Lifetime Limited Warranty
This Episode® product has a Lifetime Limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products which have been abused, modified or disassembled. Products to be repaired under this warranty must be returned to Snap One or a designated service center with prior notification and an assigned return authorization number (RA).
