FX Luminaire® SF Surface-Mounted Wall Light | Zoning, Dimming and Color
FX-SF-ZDC-FB
Description
Specs
Support
Description
Description
The SF Surface-Mounted Wall Light simplifies wall and step light installations while offering a modern, streamlined profile. Available with 1 LED or ZDC configurations, the fixture’s integrated LEDs and specialized optics are designed to project light at a 40º angle, creating beautiful wall and ground-washing effects.
FX Luminaire® SF Surface-Mounted Wall Light | Zoning, Dimming and Color
The SF Surface-Mounted Wall Light simplifies wall and step light installations while offering a modern, streamlined profile. Available with 1 LED or ZDC configurations, the fixture’s integrated LEDs and specialized optics are designed to project light at a 40º angle, creating beautiful wall and ground-washing effects.
With only 1.0" (25 mm) of exposed depth and an overall height of 2.5" (64 mm), the SF easily accommodates tight spaces and modern risers. The mounting system includes guidelines for proper fixture positioning and a final installation with no visible hardware.
Fully potted with an IP66/IP67 rating, the SF Surface-Mounted Wall Light is ideal for a range of low-profile applications.
Color Your World
This product is equipped with zoning, dimming, and color capabilities usable when paired with the Luxor® controller. Luxor features 30,000 vibrant colors using state-of-the-art RGBW LED technology to create custom lighting themes for outdoor holiday displays, sporting events, company parties, or special occasions. Plus, adjust color temperatures for distinctive looks throughout the year.
Set the Mood
Zoning programs lights into preset themes for outdoor activities like barbecues, meetings, or parties. Dimming adjusts desired dimming percentage anywhere within a system. Create up to 250 individual lighting groups that can be controlled independently and dimmed from 1–100%.

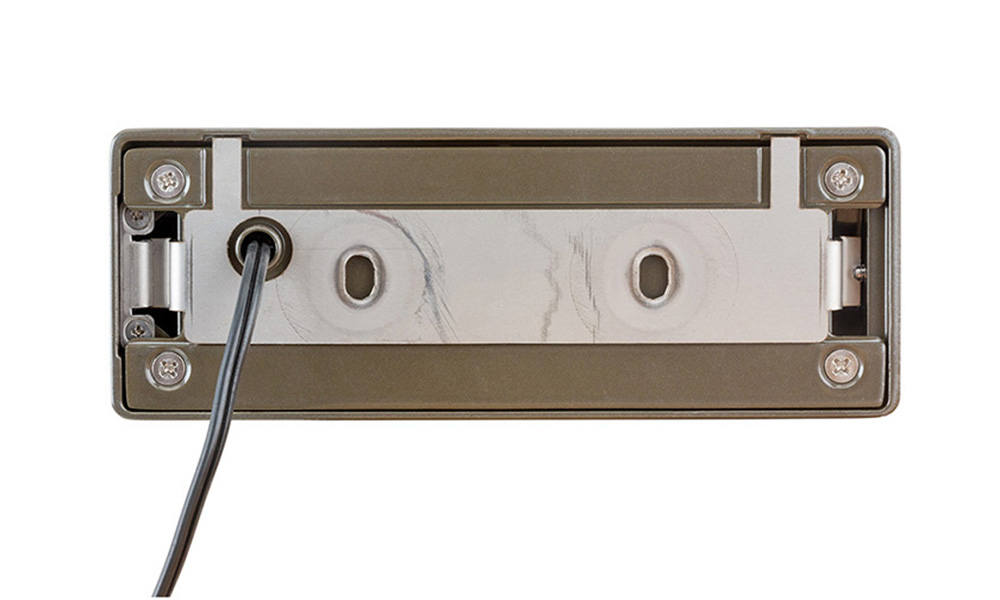

Surface-mounted with stainless steel hardware
Low-profile at 2.5" (64 mm) tall and 1" (2.5 cm) of exposed depth

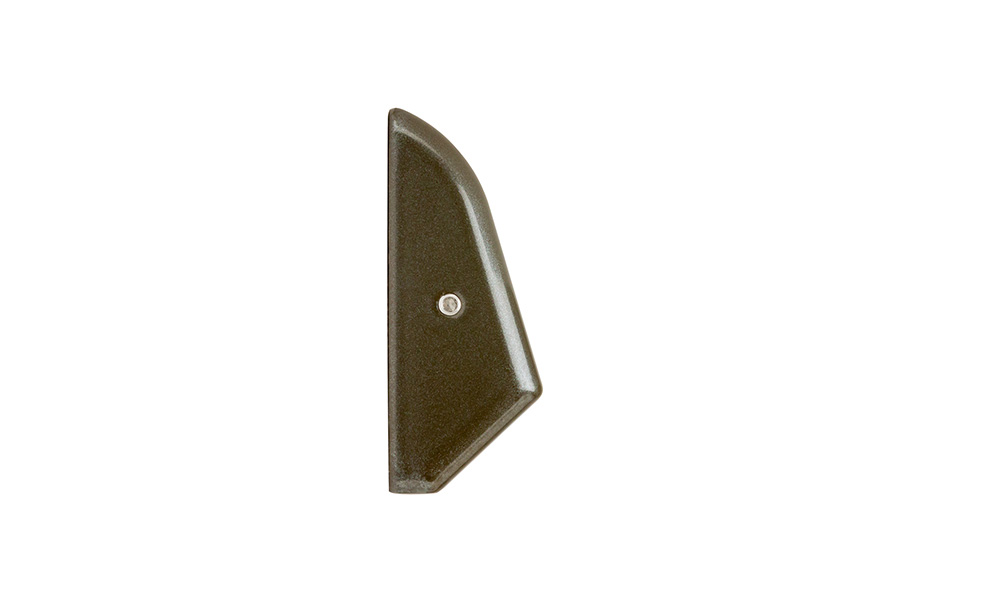

Modern, angled look with no visible hardware
Specialized optics for wall- and ground-washing effects
Serviceable with an IP66/IP67 rating
Specs
Specifications
| FX-SF-ZDC-FB | FX-SF-ZDC-BZ |
|---|---|
Stainless Steel |
Stainless Steel |
76 |
76 |
Input: 10 to 15V |
Input: 10 to 15V |
Input: 3.6W |
Input: 3.6W |
21 |
21 |
VA: 4.3W Color Rendering Index: 86 Maximum Candela: 49 RGBW: Yes |
VA: 4.3W Color Rendering Index: 86 Maximum Candela: 49 RGBW: Yes |
55,000 Hrs |
55,000 Hrs |
2.5" (64 mm) |
2.5" (64 mm) |
1" (2.5 cm) |
1" (2.5 cm) |
Finish |
Lumens |
Voltage |
Power Requirements |
Efficacy |
Features |
Minimum Rated Life (L70) |
Height |
Depth |
