System design shouldn’t be a hassle. So we’re providing everything you need to know to create the best possible experience for yourself and your clients. Use these Lutron lighting courses and how-to documents to learn as much as you need for your next job.

Explore Training

Design A System

Lighting loads (a.k.a. lamps or bulbs) are an important variable of any lighting project. Knowing which lamps your customer wants to control, or which type of system is already installed, is an important part of the design process.

Understanding Light Loads

There are several different types of light loads.

Incandescent

What end users consider “plain” lightbulbs. Current passes through the tungsten filament until it glows. Over time, this filament weakens until it breaks.

Fluorescent

A tube filled with mercury vapor. This gas excites the phosphor lighting element inside, producing visible light regulated by the ballast.

CFL

This energy-efficient, curved-tube lightbulb is another form of fluorescent lighting, and was designed to replace incandescent bulbs in lamps or fixtures.

LED

Solid-state light-emitting diode that uses electroluminescence instead of heat to create light. An LED driver regulates this current.*

MLV

Magnetic low voltage converts 120V down to 12V or 24V using heavy core and coil transformers. This is typically used in commercial or accent lighting.*

ELV

Electronic low voltage uses circuitry-based electronic transformers to convert 120V down to 12V or 24V.*

*Note: different types of light loads may not be mixed together on the same circuit. Watch the LMS videos to learn more about load compatibility, or ask your electrician for details.

Calculating A Load

Count the number of light fixtures in the room, and multiply that number by the output of each lamp. For example, if you’re creating a scene for a kitchen with 6 lamps, and each fixture has a 75W bulb, your total light load will be 450 Watts.*

*Note: LEDs and other lamps will often have two ratings, the actual consumption and the “equivalent to” light output. You should use the actual number for your calculation.

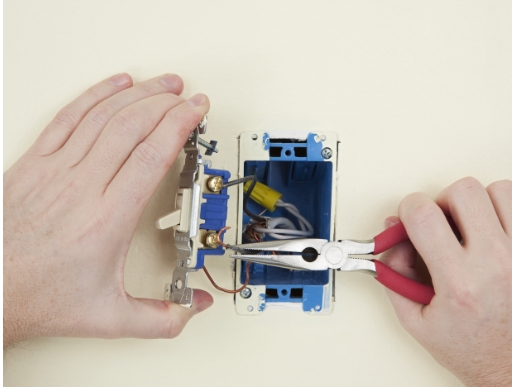

Behind The Wires

On most jobs, you’ll work with an electrician to get these products installed. But, for dealers who want to understand how devices wire into a system, Lutron provides a wiring wizard on their website with a step-by-step guide.

Behind The Wires

On most jobs, you’ll work with an electrician to get these products installed. But, for dealers who want to understand how devices wire into a system, Lutron provides a wiring wizard on their website with a step-by-step guide.

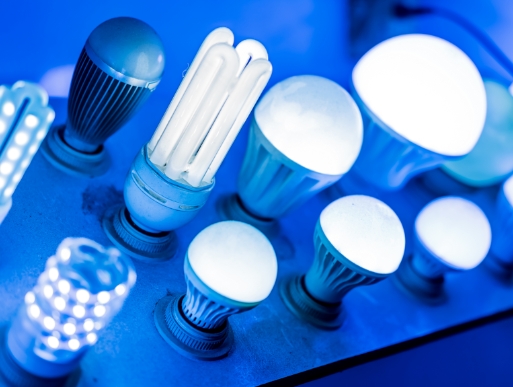

Finding The Right Lightbulb

For any Caséta or RA2 Select system where you plan to use LEDs, use Lutron’s customized lightbulb selection tool to figure out which LED you need to buy.

Finding The Right Lightbulb

For any Caséta or RA2 Select system where you plan to use LEDs, use Lutron’s customized lightbulb selection tool to figure out which LED you need to buy.

Other Checklists

Whether you’re programming the system, walking your customer through its features, or want to review your planned design, use this checklist to ensure you’ve crossed off every action item.

System Design Template >>

You’re ready to set things up.
