Triad PDX Series 4 In-Ceiling DT /SURROUND Speaker (Each) - 6"

Color
Paint Manufacturer
Paint Code
Grill

- By ordering this product with custom specifications you acknowledge that the sale is final and the product may not be returned or exchanged.

- Send us a sample of the wood that you would like the speaker to match. Your order will be placed on hold for up to 14 days as we wait for your wood sample. Samples not received after 14 days will cause your order to be canceled. Please send your physical sample along with a copy of your Triad Order attached to the address listed below.

Triad Speakers
Sales - RUSH - Paint Sample
15835 NE Cameron Blvd.
Portland, OR 97230
- Your order will be placed on hold for up to 14 days as we wait for your color sample. Samples not received after 14 days will cause your order to be canceled. Your sample must be of a solid color. Wood, multi colored wallpaper/fabrics and faux finishes CANNOT be sent as samples for custom paint matching. Please send your physical color sample along with a copy of your Triad Order attached to the address listed below.

Triad Speakers
Sales - RUSH - Paint Sample
15835 NE Cameron Blvd.
Portland, OR 97230

Add to cart
Description
Specs
Support
Description
Description

Bring premium sound to your architectural speaker projects with Triad PDX, which combines easy-to-install Push Lock by Swarm technology with the industry-leading sound of Triad.

Triad PDX Series 4 In-Ceiling DT/Surround Speaker - 6"

Bring premium sound to your architectural speaker projects with Triad PDX, which combines easy-to-install Push Lock by Swarm technology with the industry-leading sound of Triad. Triad PDX uses high-performance materials and the finest components like carbon fiber, Kevlar, Teteron, and dual voice coils. Furthermore, each speaker is designed and engineered in Portland, OR., with a full acoustic analysis in an anechoic chamber for the perfect audio experience. Installation is also a breeze with Push Lock by Swarm technology, an exclusive toolless mounting solution specifically designed for Snap One that delivers the industry's fastest and most secure installation.

Up close of Triad PDX push lock

Easy, Toolless Install

Give your customers the ultimate audio experience with the ultimate install! Triad PDX features Push Lock by Swarm technology, a toolless mounting solution designed for Snap One. Push Lock secures the speaker with the simple press of a button for the fastest and most secure install on the market for both in-ceiling and in-wall speakers. Plus, the dogs cinch down an extra 6mm when you need additional security in situations with uneven sheetrock, popcorn ceilings, etc.

Triad PDX being installed in ceiling

Seamless Installation, Your Way!

Triad PDX offers an exceptional solution for a seamless installation. Each speaker can be installed at once with zero tools, or you can remove the speaker and install the cradle with its optional backbox and grille, which allows you to return and place the speaker post-construction. All of this is done without compromising the industry-leading sound and build quality for which Triad is known.

Image of the back of a rear enclosure for Triad PDX

Optional Rear Enclosures

All Triad PDX speakers have an optional rear enclosure that reduces sound propagation to adjacent rooms while providing a predictable environment for installation, giving your customers the very best custom audio experience.

Triad Series 5 Family shot

Classic Triad Voicing

Triad PDX speakers use top-shelf crossover components and are tuned like all other Triad speakers to give them their coveted Triad sound. They can even seamlessly integrate with other Triad speakers due to their Timbre matching, allowing you to mix and match speakers within the series to meet the needs of each room while providing identical tonal qualities throughout the home.

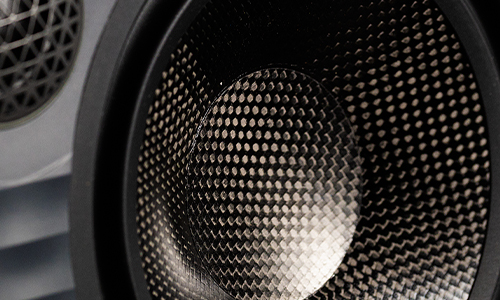

Upclose image of the carbon fiber mesh of the Triad PDX speaker

Woven Carbon-Fiber Woofer

The high fiber count woven Carbon Fiber woofer's strength and responsiveness ensures stunning linear tonal balance, while the cone's PVA coating dampens resonance for higher sonic purity. A high excursion 1-1/4" voice coil allows increased motor stamina, heat reduction, improved power handling, and superior bass performance.

The pivoting tweeter being adjusted

Dual Pivoting Teteron Dome Tweeters

Everything about Triad PDX centers around the purest sound quality possible. The dual Pivoting Teteron dome tweeter with oversized surround increases piston area, resulting in higher sensitivity and reduced motion, providing smoother frequency response. The tweeter is mounted in a mechanically inert die-cast tweeter bridge, eliminating vibration from the woofer below. You can even use the bridge as an installation handle.

Image of the Tweeter adjustment switch

Tweeter Adjustment Switch

The tweeter adjustment switch helps you deliver detailed and clear sound in any space. It compensates for an overly reflective or overly damped room by either cutting or increasing the tweeter level to improve performance.

Upclose image of the cast aluminum bar in the Triad PDX speaker

Single Stereo or Surround Selectable

World-class audio offers flexibility to deliver stunning audio in any space, and Triad helps achieve this by providing options for single stereo or surround sound. For smaller areas, choose dual voice coil mode for stellar stereo reproduction. Or go with surround mode for your home theater or media room integrations.

New construction brackets

New Construction Brackets

Our new construction brackets offer enhanced flexibility during installation in new builds. They go in before the drywall, allowing the drywaller to cut holes for them and streamline the installation process.

Custom colored grills image

Optional Custom Colored Grilles

Order your speaker with a standard Triad white speaker grille or, for a slight upcharge, order a custom-colored grille to match the room's décor or wall/ceiling color.

2 pieve baffle that helps secure speak in ceiling

Secure On Site

Not all job sites are secure during the construction phase, leaving components left onsite susceptible to theft. With The Triad PDX 2-piece baffle/speaker module assembly, you can remove the speaker module for safe storage offsite until the site is secure while the Frame/HVAC cover and grille remain installed.

Specs
Specifications
TS-PDX-IC64-DTS
45Hz - 23KHz
9.26 in. (235mm)
8.3 in. (211mm)
Dog Type: Push Lock by Swarm
Dog Clamping Range: 3/8" to 1-1/8"
-20C to +50C
w/grille: 5.68 lbs (2.58 Kg)
2.8kHz
Crossover type/slope: Linkwitz-Riley / 12dB
100°
9.5 Ohms
Minimal impedance: 8 Ohms
(dB) @ 1W/1M: 89dB
Size: 2 x 3/4" (19mm)
Material: Teteron Dome
Tweeter Mechanism: Pivoting +/- 10°
Size: 6-1/2" (160mm)
Cone Material: Carbon Fiber
Surround Material: NBR (Buna-N rubber)
Woofer Voice Coil Diameter: 1-1/4"
Magnet type: Ferrite
Woofer Excursion (Peak to Peak): 8.5mm
w/ Enclosure: 6.2" (157mm)
w/o Enclosure: 4.97" (126mm)
20-25L
TS-PDX-NCB-IC6
TS-PDX-ENCL-ICDTS6
Power Handling (Max): (1.33x RMS): 115W
Power Handling (RMS): 85W

Frequency Response
Diameter
Cutout Diameter
Mounting
Operating Temperature
Weight
Crossover Frequency
Speaker Dispersion Angle
Nominal Impedance
Sensitivity
Tweeter
Woofer
Mounting Depth
Optimal Air Volume Behind Speaker
NCB Size
Enclosure
Power Handling

Triad Limited Warranty Term

This Limited Warranty runs for a period of ten (10) years for indoor speakers, three (3) years for Triad powered subwoofers, subwoofer amplifiers and outdoor speakers, five (5) years for all Triad PAMP V2 Amplifiers and two (2) years for all other Triad electronics, provided that Triad Distributed Audio Series 1, Series 2, or Series 3 branded speakers will have a limited lifetime warranty, except for the grill, which is warranted for five (5) years. The terms of our limited warranties can be found here.
