The Atlona AT-UHD-CLSO-612ED is an advanced six-input, multi-format switcher with built-in 4K scaling and mirrored HDBaseT and HDMI outputs. It simplifies classroom and small office system integration by providing two HDBaseT inputs, two HDMI inputs, and two multi-function analog inputs.

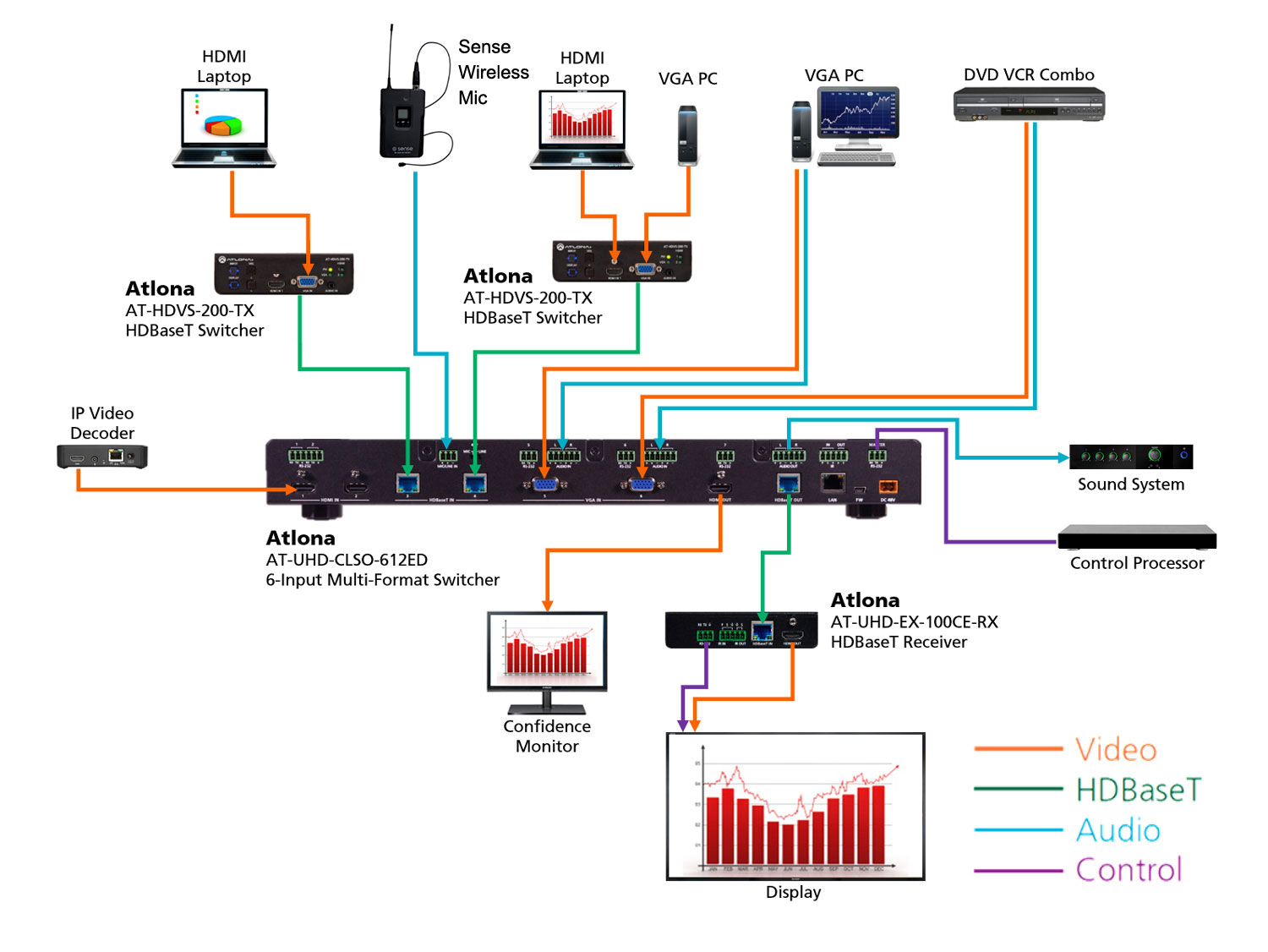

The Atlona AT-UHD-CLSO-612ED is an advanced six-input, multi-format switcher with built-in 4K scaling and mirrored HDBaseT and HDMI outputs. It simplifies classroom and small office system integration by providing two HDBaseT inputs, two HDMI inputs, and two multi-function analog inputs. HDBaseT inputs enable integration of remote sources at lecterns, meeting tables, and walls via HDBaseT transmission, alongside locally connected sources. The CLSO-612ED is designed to be the central component of an automated AV system; it combines the benefits of a scaling switcher with automatic display control and automatic input selection, plus the advantages of HDBaseT signal transmission to extend AV, power, control, and Ethernet over a single cable. The switcher enables input selection from the front panel, RS-232, or TCP/IP commands, and is ideal for applications where multiple signals with different resolutions must be optimized for a display. Professional audio features such as a microphone input with 48 volt phantom power and ducking are also included, allowing the switcher to address a wide array of AV needs in professional settings. In addition to automated input selection, the switcher can be controlled via the Atlona AT-ANC-108D button control panel.
Used with Atlona HDVS-150/200 or AT-UHD-EX-100CE-TX-PD series transmitters, this device is ideal for placement at remote sources near lecterns, conference tables, and instructor’s desks up to 330 feet (100 meters) from the switcher. It also simplifies integration of remote sources by eliminating power supplies when used with PoE-powered transmitters. A single category cable carries AV signals, Ethernet, control and PoE power.
These inputs support up to two DVI, HDMI and DisplayPort sources. These inputs are compatible with PCs, Blu-ray players, document cameras, teleconference systems, or other wireless solutions with industry standard digital audio/video outputs.
This switcher accepts RGBHV, component, S-video, or composite signals using common adaptors and break out cables, and also provides input options for legacy analog sources.
The CLSO-612ED provides control to a display through TCP/IP, RS-232, or CEC*, without the need for a separate control system. This simplifies system design and integration while reducing costs. With automatic display control, the CLSO-612ED can trigger a display to power on automatically whenever a laptop or other device is connected locally to the switcher or over HDBaseT. Then, when the user disconnects the laptop, it forces the display to power off. Ease of presenter interaction with the system, and the savings incurred by automatic display shutdown provide a significant return on investment. The CLSO-612ED’s display control capability can also be triggered by an external control system. A power button on the front panel can be used for manual on/off control of either the CLSO-612ED or the display. Front panel volume controls are also available to control the display’s internal audio, or another device with volume control, such as a DSP or another switcher.
The CLSO-612ED automatically selects an input source based on detection of the 5 volt hot plug detect (HPD) signal, as well as active video. This ensures reliable auto-switching operation for all video sources, including DVRs, DisplayPort / Mini DisplayPort adapters, and other devices that always maintain the HPD line at the 5 volt “high” state but may not be delivering active video.
Dedicated RS-232 connections for all local sources and destinations, plus transmission over HDBaseT, allow the switcher to be used as a RS232 distribution system to all local and remote sources and displays. This lowers the cost of control system integration by reducing the number of RS-232 interfaces on the processor, providing much-needed install flexibility.
We offer a wide range of communication equipment—including switchers, receivers, transmitters, converters, and more—that work together to create fully-integrated commercial conferencing solutions.
| AT-UHD-CLSO-612ED |
|---|
CAT5e/6 @ 4K: up to 70 meters / up to 230 feet CAT5e/6 @ 1080p: up to 70 meters / up to 328 feet CAT6a/7 @ 4K: up to 100 meters / up to 328 feet |
Switchable – Complaint/Non-compliant – 1.4 |
8-bit, 10-bit, 12-bit Color Space: YUV, RGB Chroma Subsampling: 4:4:4, 4:2:2 |
17.24" x 1.73" x 10" |
20 to 90% non-condensing |
32°F to 122° |
43W |
-4°F to 140 |
7.10 lb |
4096×2160@24/25/30Hz, 3840×2160@24/25/30Hz, 2048x1080p, [email protected]/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@50/59.94/60Hz, 576p, 576i, 48 |
PCM 2Ch |
2560×2048, 2560×1600, 2048×1536, 1920×1200, 1680×1050, 1600×1200, 1600×900, 1440×900, 1400×1050, 1366×768, 1360×768, 1280×1024, 1280×800 1280×768, 1152×768, 1024×768, 800×6 |
32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz |
up to 24-bit |
Yes |
AC100-240V ~ 50/60Hz |
DC 48V/3.125A |
HDBaseT Connections |
HDCP Compliance |
HDMI Max Color Depth |
Dimensions (W x H x D) |
Operating Humidity |
Operating Temperature |
Power Consumption |
Storage Temperature |
Weight |
Supported Resolutions |
HDMI |
VESA Resolution |
Supported Sample Rates |
Bit Rate |
CEC |
Power Input |
Power Output |
