Description
Description
Discover a speaker that virtually disappears into the customer’s wall while producing room-filling audio. Once installed, the Episode® Kameleon Series 12x16 Invisible Speaker can be covered with any finish the customer wants to blend right in with the room’s décor – making it a perfect solution for the most demanding applications. Plus it’s built like a traditional loudspeaker, so it doesn’t vibrate the wall around it to create sound like mounted transducers do. And for the finishing touch, we included a mounting template and spring-loaded brackets to allow for step-by-step installation.
Episode® Kameleon Series Invisible Speaker
Discover a speaker that virtually disappears into the customer’s wall while producing room-filling audio. Once installed, the Episode® Kameleon Series 12x16 Invisible Speaker can be covered with any finish the customer wants to blend right in with the room’s décor – making it a perfect solution for the most demanding applications. Plus it’s built like a traditional loudspeaker, so it doesn’t vibrate the wall around it to create sound like mounted transducers do. And for the finishing touch, we included a mounting template and spring-loaded brackets to allow for step-by-step installation.

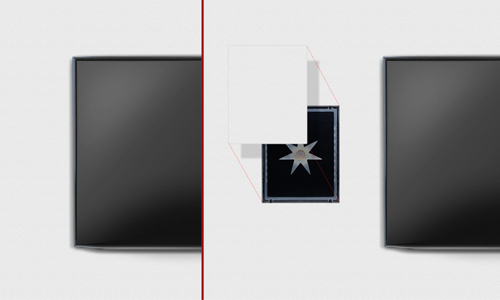

Power of Invisibility
This architectural speaker is perfect for the most discerning customers and interior designers who desire a quality, hidden performance. Once installed and covered to match, it becomes part of the wall – completely disappearing from sight.
Room-Filling Sound
This subwoofer produces quality sound in a flat-form factor that incorporates directly into the wall, and has a 170 degree dispersion to provide more coverage than the average loudspeaker can.
Small & Sophisticated
This subwoofer's sealed cabinet provides impeccable responsiveness and highly accurate sound from a form factor that’s up to 20% smaller than comparable subs. A glossy, polyurethane finish and flush-mounted grill gives a premium look and feel customers are sure to appreciate.
Ribbed Surround
An accordion-like ribbed surround allows for linear cone movement, so you get low distortion even at high volume levels.
Step-by-Step Installation
The initial part of the install is really similar to what’s done for a standard in-wall – cut the sheet-rock and mount the speaker in place – but then it’s time to make it invisible with your custom finish of choice. To help cut the complexity, we’ve provided step-by-step instructions for installing this product. Just use the included template to mark the appropriate holes, then cut it out, screw in the mounting brackets, and pop in the speaker. The brackets have pre-drilled holes for install ease, plus springs that support the speaker and allow you to get it perfectly level with the drywall. Once installed, the speaker needs to be covered in drywall, sanded, and the final cosmetic finish applied.
Specs
Specifications
| ES-KAMELEON-12x16 |
|---|
60 Hz - 22 kHz |
16.46" x 13.15" |
13" x 16.3" x 2.8" |
Each |
6.1 lb |
8 Ohm |
150W |
30W |
87 dB |
Frequency Response |
Cutout Dimensions (W x H) |
Dimensions (W x H x D) |
Sold As |
Weight |
Nominal Impedance |
Power Peak |
Power RMS |
Sensitivity |
Support
Manuals and Guides
Sales Resources
5-Year Limited Warranty
This Episode® Speaker product has a 5-Year Limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products which have been abused, modified or disassembled. Products to be repaired under this warranty must be returned to Snap One or a designated service center with prior notification and an assigned return authorization number (RA).
