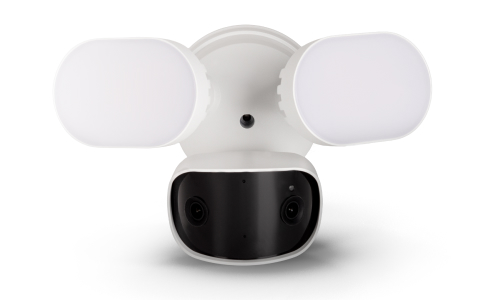

Luma Surveillance™ X20 7MP IP POE Floodlight Camera with Active Deterrence
Combining advanced surveillance features with active deterrence, the Luma 720 Series POE Floodlight Camera delivers enhanced safety, reliability, and performance. With Power over Ethernet (PoE) connectivity, this model is ideal for professional installs where consistent power and network stability are critical.
Unlike traditional single-lens cameras, the 720 Series features a dual-lens designthat delivers a wider field of view and higher-resolution imaging across a broader area — perfect for full coverage of driveways, yards, or large outdoor zones.
Integrated floodlight illumination and hybrid night vision give you full control over nighttime footage. Choose traditional IR for wide-area black-and-white visibility, or switch to full-color mode using powerful built-in floodlights that highlight important details like faces, vehicles, and clothing.
Flexible storage options include direct recording to a compatible Luma NVR over PoE or onboard microSD card storage for localized access. Critical events are captured and easily accessible whether you're building a standalone system or integrating into a larger surveillance network.
Active Deterrence capabilities add an extra layer of protection. Using AI-assisted intrusion zone and line-crossing analytics, the camera can flash lights and play an audible alarm or pre-set audio clip alerting trespassers that they are being monitored or are trespassing.
Engineered for durability, the camera is IP66-rated for protection against dust, rain, snow, and extreme temperatures. Built-in two-way audio enables users to listen and speak directly to visitors or potential intruders through the Luma View app.
Designed for seamless integration, the 720 Series offers robust support for Control4® and other leading control systems. It enables advanced automation and control with features like AI-triggered events and video playback, all accessible through the Control4 interface when paired with Luma Insights.
Setup and system management are simple with native OvrC® support, allowing for remote configuration, firmware updates, and real-time monitoring — no local UI access required.
Important Note - This camera requires additional power. We recommend including a separate PoE++ injector, such as the Luma 60W PoE++ Injector (LUM‑A20‑POE60W).

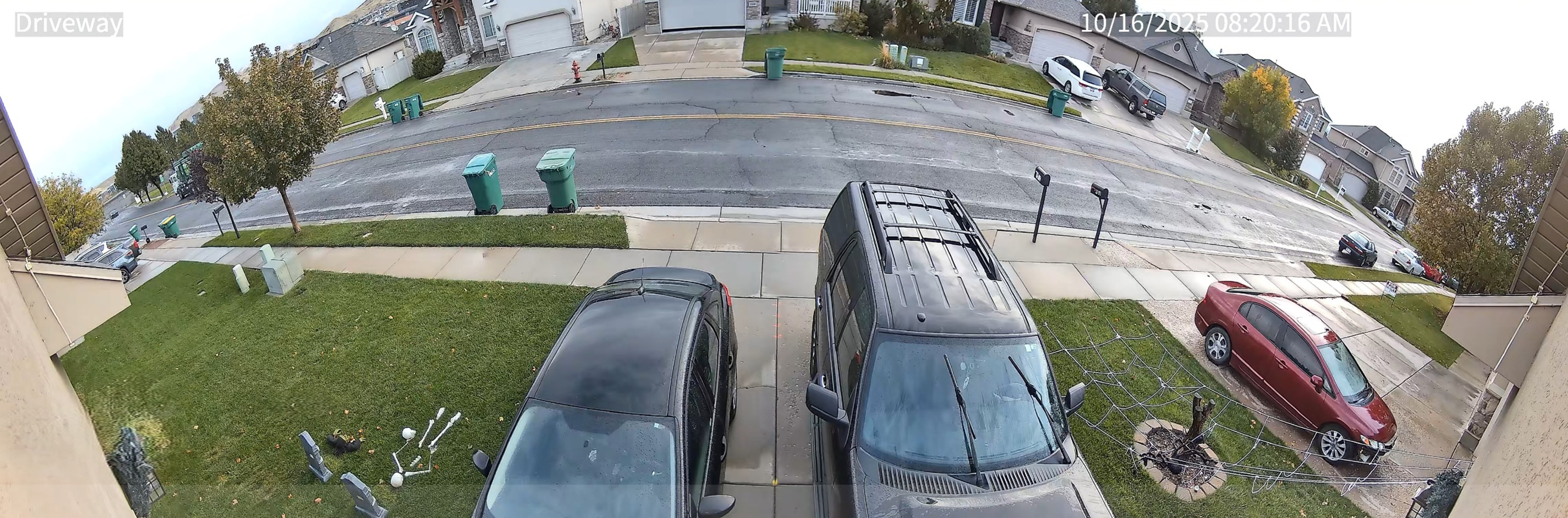

Dual-Lens Design for Seamless Wide-Area Coverage
The 720 Series features a dual-lens system that delivers an ultra-wide field of view without distortion or image gaps. By intelligently stitching the output from both lenses, the camera creates a smooth, seamless panoramic image combining the coverage of two cameras in one. Ideal for wide driveways, yards, or large entryways, this design captures more area with fewer blind spots and cleaner installation.
Floodlight Security Meets Smart Surveillance
Deliver enhanced security and peace of mind with the Luma Floodlight Camera. Combining powerful floodlight illumination with advanced surveillance features, it’s an ideal solution for both new surveillance installs and retrofitting existing floodlight fixtures.
Reliable, Professional Installation with PoE
The 720 Series Floodlight camera uses Power over Ethernet (PoE) for a clean, efficient install, delivering both power and data over a single cable. PoE helps simplify wiring, supports longer runs, and ensures stable performance, making it ideal for professional and large-scale installations.

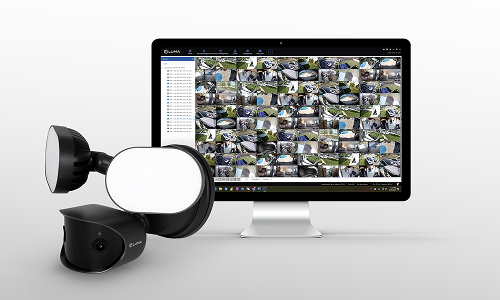

Secure Storage with NVR or MicroSD

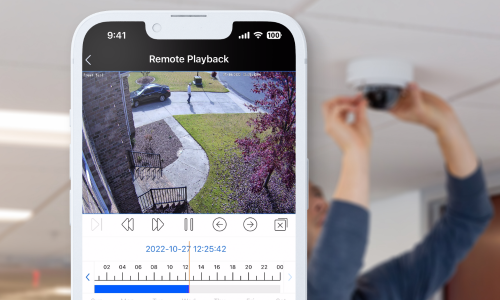

The Luma Floodlight Camera offers flexible storage options to fit any setup. Record locally to a microSD card or stream directly to a compatible Luma NVR for centralized management. Whether it’s a simple standalone install or part of a larger system, your footage is securely captured and easy to access.
Intelligent Analytics
Featuring the latest AI technology, including advanced human, vehicle, and non-motor vehicle detection — Luma significantly reduces false notifications and helps your customers respond more accurately. AI-filtered events enable quick notifications, easy sharing, and streamlined viewing of key moments detected by the system throughout the day.

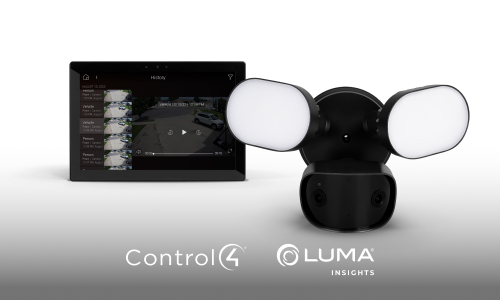

Smarter Control System Integration
Experience deeper integration with Control4, featuring camera thumbnails, single-camera views, enhanced PTZ controls, and AI-triggered events for faster, smarter automation.
With Luma Insights, take it even further—access video playback, cloud-stored event clips, and advanced AI detection for people, vehicles, packages, and pets, all within the Control4 interface. Also compatible with other leading control systems.

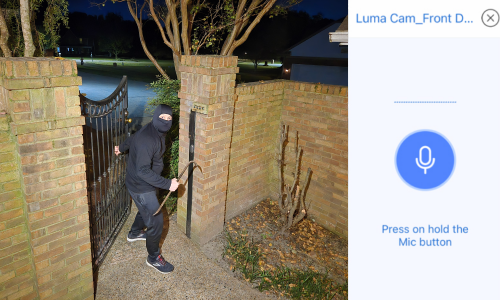

Built-in Microphone and Speaker
Is someone sneaking around your backyard? Let them know they're not welcome using the built-in microphone and speaker for two-way audio through the Luma View App.
NOTE: You cannot use both built-in microphone/speaker at the same time as the audio in/out connectors.

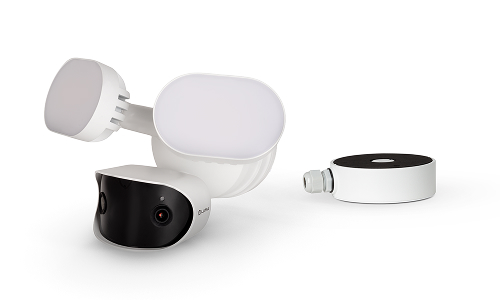

Compatible Mounts
Luma cameras are compatible with a variety of accessory mounts to help you tackle the job. Click here to view compatible mounts with this camera.
NDAA Compliant & ONVIF Conformant
We have you covered for any job that requires NDAA compliant equipment. All Luma X20 family surveillance solutions are fully NDAA compliant.
Luma cameras and NVRs are fully ONVIF conformant giving you greater choice and flexibility when designing or updating systems. They also support recording from the Control4 Chime video doorbell and DS2 intercom.
Specs
Specifications
| LUM-720-IP-FLDB | LUM-720-IP-FLDW |
|---|---|
Human, Vehicle & Non-motor Vehicle Detection |
Human, Vehicle & Non-motor Vehicle Detection |
F1.0 - F1.07 |
F1.0 - F1.07 |
1CH built-in microphone |
1CH built-in microphone |
37.8W @ 54V |
37.8W @ 54V |
No |
No |
ETL Listed, CE, FCC, UKCA, NDAA Compliant, ONVIF Conformance |
ETL Listed, CE, FCC, UKCA, NDAA Compliant, ONVIF Conformance |
Black |
White |
10.74 × 8.48 × 7.51in (273 × 215.6 × 191mm) |
10.74 × 8.48 × 7.51in (273 × 215.6 × 191mm) |
30fps |
30fps |
-4°F - 122°F (-20°C - 50°C) |
-4°F - 122°F (-20°C - 50°C) |
Yes |
Yes |
Chrome, Firefox, Safari, Edge |
Chrome, Firefox, Safari, Edge |
No |
No |
No |
No |
IPV4, IPV6, HTTP, HTTPS, 802.1x, FTP, SMTP, DNS, DDNS, UPnP, SNMP, NTP, P2P, RTSP, RTP, RTCP, TCP/IP, UDP, IGMP, ICMP, DHCP |
IPV4, IPV6, HTTP, HTTPS, 802.1x, FTP, SMTP, DNS, DDNS, UPnP, SNMP, NTP, P2P, RTSP, RTP, RTCP, TCP/IP, UDP, IGMP, ICMP, DHCP |
Horizontal: 200°, Vertical: 60° |
Horizontal: 200°, Vertical: 60° |
Yes |
Yes |
0.001 Lux @ F1.6, AGC ON 0 Lux with IR, 0 Lux with LED |
0.001 Lux @ F1.6, AGC ON 0 Lux with IR, 0 Lux with LED |
Dual 4MP (1/1.8") CMOS |
Dual 7MP (1/1.8") CMOS |
Yes |
Yes |
30m (98ft) |
30m (98ft) |
F1.0 - F1.07 |
F1.0 - F1.07 |
Yes |
Yes |
IP66 |
IP66 |
Built-in micro SD card slot; up to 1TB |
Built-in micro SD card slot; up to 1TB |
1 - 1/16000 sec |
1 - 1/16000 sec |
Main stream: H.265 / H.264, Sub/Third/Fourth stream: H.265 / H.264 / MJPEG |
Main stream: H.265 / H.264, Sub/Third/Fourth stream: H.265 / H.264 / MJPEG |
>100dB |
>100dB |
IP66 |
IP66 |
2D/3D DNR |
2D/3D DNR |
Floodlight |
Floodlight |
Fixed |
Fixed |
Motion, Line Crossing, Intrusion, Scene Change, Video Blur |
Motion, Line Crossing, Intrusion, Scene Change, Video Blur |
15m (50ft) |
15m (50ft) |
>42dB* |
>42dB* |
Motion detection, sensor alarm, SD card error, SD card full, IP address conflict, audio alarm, light alarm |
Motion detection, sensor alarm, SD card error, SD card full, IP address conflict, audio alarm, light alarm |
704×480 |
704×480 |
704×480 |
704×480 |
G.711 a/ulaw |
G.711 a/ulaw |
1CH built-in Speaker (110dB, level measured at 4inch distance) |
1CH built-in Speaker (110dB, level measured at 4inch distance) |
Yes |
Yes |
ONVIF |
ONVIF |
No |
No |
Less than 95% non-condensing |
Less than 95% non-condensing |
-22°F - 140°F (-30°C - 60°C) |
-22°F - 140°F (-30°C - 60°C) |
2.66 lbs (1.21 kg) |
2.66 lbs (1.21 kg) |
4560×1520, 2688×1520, 1920×1080, 1280×720, 704×480 |
4560×1520, 2688×1520, 1920×1080, 1280×720, 704×480 |
4560×1520 |
4560×1520 |
512kbps - 8Mbps (VBR/CBR) |
512kbps - 8Mbps (VBR/CBR) |
AI Event |
Aperture |
Microphone |
Power Consumption |
Audio Input Connectors |
Certifications |
Color |
Dimensions (W x H x D) |
Frame Rate |
Operating Temperature |
Backlight Compensation |
Browser Support |
Alarm Contact Inputs/Outputs |
CVBS Output |
Network / Ethernet Desc. |
Field of View |
Highlight Compensation |
Minimum Illumination |
Image Sensor |
Image Snapshot |
IR Range |
Lens |
Motion Detection |
Outdoor Rating |
SD Card Support |
Shutter Speed |
Streams |
WDR |
Protection Rating |
DNR |
Form Factor |
Focus |
Recording Trigger |
White LED Distance |
S/N Ratio |
Smart Alarm |
Sub Stream |
Third Stream |
Audio Compression |
Speaker |
Reset Button |
Interface Protocol |
Defog |
Operating Humidity |
Storage Temperature |
Weight |
Supported Resolutions |
Main Stream |
Bit Rate |
Support
Manuals and Guides
3-Year Limited Warranty
This Luma Surveillance™ product has a 3-Year Limited Warranty. This Warranty is described in greater detail here: 3-Year Limited Warranty
