Access Networks C670 Unleashed Wi-Fi 7 Indoor Access Point - Wall Mount
The Access Networks C670 is a tri-band Wi-Fi 7 wall-mount access point designed to deliver enterprise-grade wireless and wired connectivity in a single device. Supporting 2x2:2 MIMO per band, Multi-Link Operation (MLO), and a 5GbE uplink, it provides high-performance wireless coverage while enabling direct connection of wired devices through four 2.5GbE Ethernet ports, two PoE Out ports. The integrated wall-mount design allows installers to deliver both Wi-Fi and wired connectivity from a single in-room device in environments where ceiling mounting is impractical.
Wi-Fi 7 Certified
Wi-Fi 7 Unleashed Access Points from Access Networks deliver higher speeds, lower latency, and greater reliability to improve the network experience for every device. Designed to support modern high-density environments, Wi-Fi 7 technology helps meet the growing demand for faster and more dependable wireless connectivity in residential, hospitality, MDU, and commercial deployments. Key advancements include Multi-Link Operation (MLO) for improved traffic balancing, 320 MHz channels that double the throughput of Wi-Fi 6, and 4K QAM for up to 20% higher transmission rates. Together, these innovations enable exceptional wireless performance for even the most demanding connected environments.

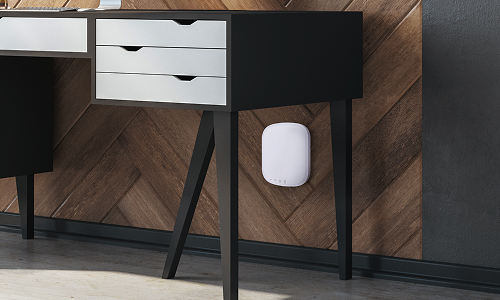

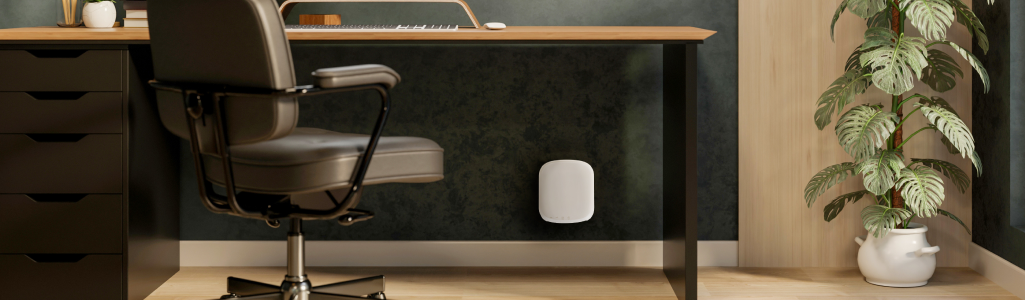

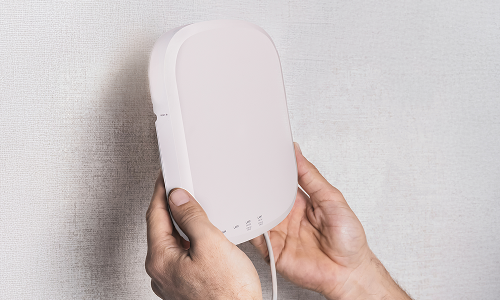

Wall Mount Applications

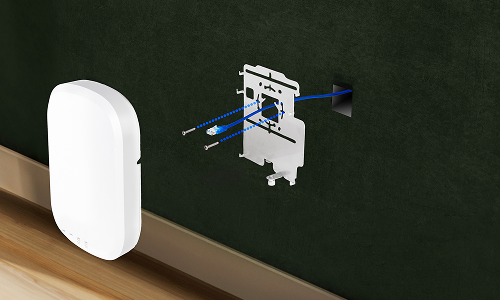

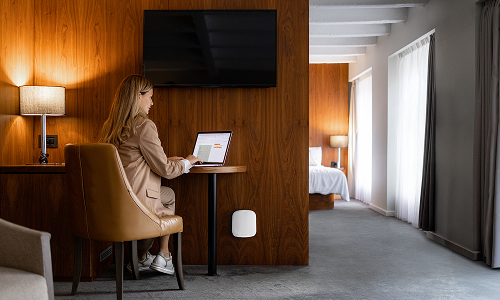

The C670 is purpose-built for environments where Ethernet terminates at the wall or ceiling installations aren’t practical. Its wall-mounted design delivers reliable Wi-Fi 7 coverage while providing direct connectivity for wired devices, making it ideal for hotel guest rooms, MDUs, offices, and residential spaces that require both wireless performance and local Ethernet access.
Additional Ports & Applications

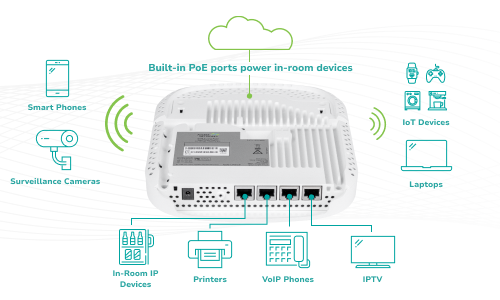

The C670 integrates wired connectivity directly into the access point with a 5GbE uplink and four 2.5GbE downlink ports, including two PoE Out ports. This allows installers to connect and power devices such as IP phones, cameras, control systems, and in-room entertainment equipment without the need for an additional switch. The result is a cleaner, more efficient installation that reduces hardware, simplifies deployments, and delivers a complete in-room networking solution across hospitality, MDUs, offices, and residential environments.
BeamFlex+ Adaptive Antenna Technology
BeamFlex+ adaptive antennas dynamically select from thousands of antenna pattern combinations in real time to optimize connectivity for every device. By directing Wi-Fi energy where it is needed most, BeamFlex+ improves coverage, reduces interference, and increases signal reliability.
For wall-mounted deployments, BeamFlex+ helps maintain consistent performance by adapting signal patterns based on device location and orientation, ensuring strong and stable Wi-Fi connections throughout the room.
5 GbE Eliminates Bottleneck
Optimized multi-gigabit Wi-Fi performance delivered using the built-in 1/2.5/5GbE port to connect to multi-gigabit switches.
Built-In Wireless Controller
Using the built-in enterprise-grade WLAN Controller, the access point helps optimizes the wireless environment for maximum performance and connectivity.
Installer-Friendly Deployment
The C670 deploys quickly and easily through the intuitive OVRC cloud platform. Pre-configure remotely, install onsite, and finalize setup in minutes via mobile device or browser.
High Client Density and Performance
Provides exceptional end-user experience within densely connected homes, small businesses, multi-dwelling units, and hospitality applications.
Complete Wi-Fi Management
With Access Networks and OvrC, your customers can easily manage their wireless devices. Easy-to-setup user profiles allow parents and managers to schedule and restrict Wi-Fi access using the OvrC Connect app.
Effortless Guest Wi-Fi Sharing
Sharing guest Wi-Fi is now seamless with the OvrC Wi-Fi QR Code Agent for Control4. Guests simply scan a QR code displayed on Control4 touchscreens or in the mobile app to join instantly with no need to type in long passwords. The code updates automatically when network settings change, giving clients a modern, hassle-free way to share Wi-Fi with friends, family, or customers. You can also set up guest SSIDs, limit bandwidth, or isolate traffic all without impacting the main network.
About Access Networks
Access Networks Unleashed Wi-Fi 7 Access Points provide the simplest way to deliver high-performance, enterprise-grade networking with the added benefits of Wi-Fi 7. With a built-in controller and full OvrC support, they’re easy to set up, manage, and maintain. The Access Networks Wi-Fi 7 Access Point portfolio offers the ideal solutions for delivering reliable connectivity across a variety of indoor and outdoor environments, while minimizing the need for on-site visits.
Specs
Specifications
| ANU-C670-US00 |
|---|
Limited Lifetime Warranty |
22.2 cm × 18.3 cm × 3.2 cm (8.76 in × 7.19 in × 1.26 in) |
1.78 lb |
0°C (32°F) to 40°C (104°F) |
802.3at: 25.5W 802.3bt PoH / uPoE: ~45.7W average |
Wi‑Fi CERTIFIED™ a/b/g/n/ac/ax/be (Wi‑Fi 6, Wi‑Fi 7) |
Up to 95% non‑condensing |
One 100M/1/2.5/5GbE (PoE‑in) port and four 10M/100M/1/2.5GbE LAN ports (up to two PoE‑out) |
Warranty |
Dimensions (W x H x D) |
Weight |
Operating Temperature |
Power Consumption |
Certifications |
Operating Humidity |
Ethernet |
Support
Manuals and Guides
Limited Lifetime Warranty
This Access Networks product includes a limited lifetime warranty. This warranty is described in greater detail here: Limited Hardware Warranty.
