Episode® Signature 1700 Series In-Wall Speaker (Each)

Speaker Size

- By ordering this product with custom specifications you acknowledge that the sale is final and the product may not be returned or exchanged.

- Send us a sample of the wood that you would like the speaker to match. Your order will be placed on hold for up to 14 days as we wait for your wood sample. Samples not received after 14 days will cause your order to be canceled. Please send your physical sample along with a copy of your Triad Order attached to the address listed below.

Triad Speakers
Sales - RUSH - Paint Sample
15835 NE Cameron Blvd.
Portland, OR 97230
- Your order will be placed on hold for up to 14 days as we wait for your color sample. Samples not received after 14 days will cause your order to be canceled. Your sample must be of a solid color. Wood, multi colored wallpaper/fabrics and faux finishes CANNOT be sent as samples for custom paint matching. Please send your physical color sample along with a copy of your Triad Order attached to the address listed below.

Triad Speakers
Sales - RUSH - Paint Sample
15835 NE Cameron Blvd.
Portland, OR 97230

Add to cart
UPP
Description
Specs
Support
Description
Description

A perfect solution for the best in distributed audio or home theater sound, these speakers deliver an incomparable audiophile-grade performance to please even the most discerning music and movie lovers.

SERIES

1700

APPLICATION

Distributed Audio & Home Theater

PLATFORM

In-Wall

WOOFER

Honeycomb Fiberglass Nomex Cone

TWEETER

Pure Titanium

BRACKET

ES-ESS-BRKT-IW

Episode® Signature 1700 Series In-Wall Speaker

A perfect solution for the best in distributed audio or home theater sound, these speakers deliver an incomparable audiophile-grade performance to please even the most discerning music and movie lovers.

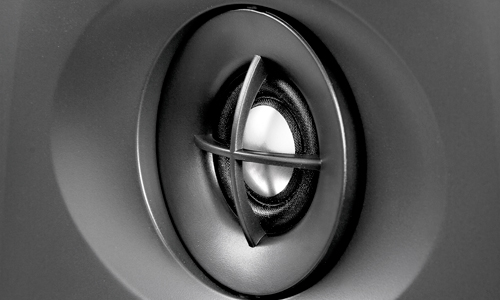

Adjustable Tweeter

Direct sound where you want to create more immersive experiences.

Honeycomb Fiberglass Nomex Cone Woofer

Forward-set woofer for wide dispersion and tight bass.

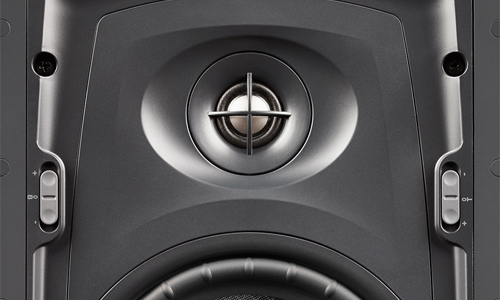

Compensation Switches

Adjust the tweeter or woofer’s output by up to 3dB for perfect, customized sound.

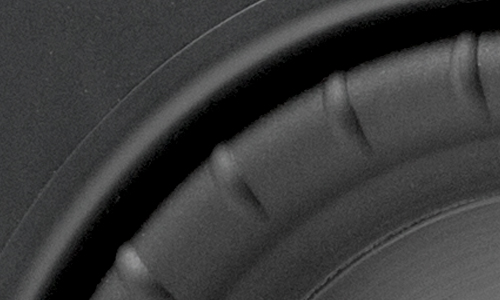

Ribbed Surround

Ensures linear cone movement for tighter bass with less distortion.

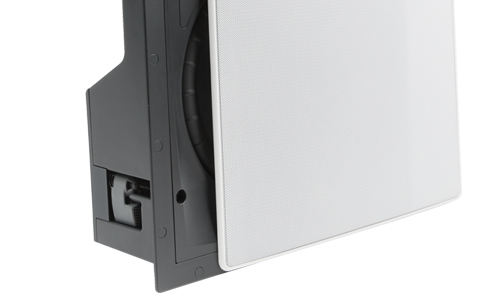

Thin-Bezel Design

Magnetic, one-step paintable grill keeps the speaker out of sight for a smooth, minimalistic finish.

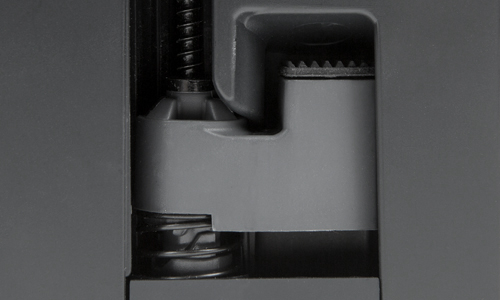

Exclusive Tension Dogs

Screws hold speakers in place during installation with just a quarter turn. Just tighten fully for easy release.

Simple, Versatile Brackets

These speakers are compatible with our ES-ESS brackets.

@@altText

Partner Rewards

Episode® Signature Speakers are available exclusively for Partner Rewards Members.

@@altText

Pure Sound

Raises the bar on everything you've ever heard.

@@altText

Form Rivals Function

Designed for the world’s greatest stage.

@@altText

Installs Made Easy

Integrator-friendly can’t even begin to describe it.

Specs
Specifications
ESS-1700T-IW-6 ESS-1700T-IW-8
Gold plated push terminals
Gold plated push terminals
43 Hz - 20 kHz
34 Hz - 20 kHz
Tweeter +1.5dB/0/-1.5dB
Tweeter +1.5dB/0/-1.5dB, Woofer +1.5dB/0/-1.5dB
11.7" x 7.6"
13.7" x 9"
5 lb
5.8 lb
2.6 kHz
2.3 kHz
8 ohm
8 ohm
140 Watts
160 Watts
90 dB
91 dB
1" Pure titanium dome tweeter
1" Pure titanium dome tweeter
6" Honeycomb fiberglass Nomex cone woofer
8" Honeycomb fiberglass Nomex cone woofer
Finished Dimension w/ Grill: 8.9" x 13"
Finished Dimension w/ Grill: 10.3" x 15"
7.6"
9"
11.7"
13.7"
Mounting Depth: 3.6"
Mounting Depth w/ Enclosure: 3.8"
Mounting Depth: 3.6"
Mounting Depth w/ Enclosure: 3.8"

Connector Type
Frequency Response
Adjustments
Cutout Dimensions (W x H)
Weight
Crossover Frequency
Nominal Impedance
Power Peak
Sensitivity
Tweeter
Woofer
Dimensions (W x H x D)
Cutout Width
Cutout Height
Mounting
Support

Support Documents

Episode Poster - Architectural Line
Episode Poster - Architectural Line
Want a full-size poster shipped to you? Email us here.

Lifetime Limited Warranty

All Episode® Signature Speakers have a Lifetime Limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products that have been abused, modified, or disassembled. Products to be repaired under this warranty must be returned to Snap One or a designated service center with prior notification and an assigned return authorization number (RA).
