Episode® Signature 1700 Series In-Wall Surround Speaker (Each)
ESS-1700T-IWSURR-6
Click to enlarge
Description
Specs
Support
Description
Description
A perfect solution for the best in distributed audio or home theater sound, these speakers deliver an incomparable audiophile-grade performance to please even the most discerning music and movie lovers.
SERIES
1700
APPLICATION
Distributed Audio & Home Theater
PLATFORM
In-Wall Surround
WOOFER
Honeycomb Fiberglass Nomex Cone
TWEETER
Pure Titanium
BRACKET
ES-ESS-BRKT-IWEpisode® Signature 1700 Series In-Wall Surround Speaker
A perfect solution for the best in distributed audio or home theater sound, these speakers deliver an incomparable audiophile-grade performance to please even the most discerning music and movie lovers.
Honeycomb Fiberglass Nomex Cone Woofer
Forward-set woofer for wide dispersion and tight bass.

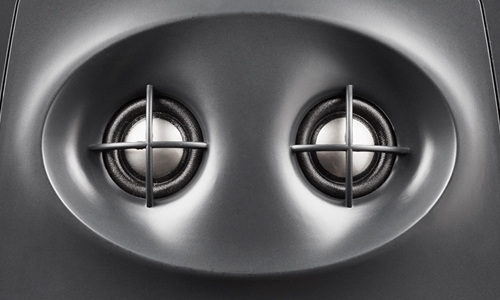

Dual Tweeters with Pure Titanium
Our dual tweeters deliver warm, refined, and mellow highs for incomparable performance.

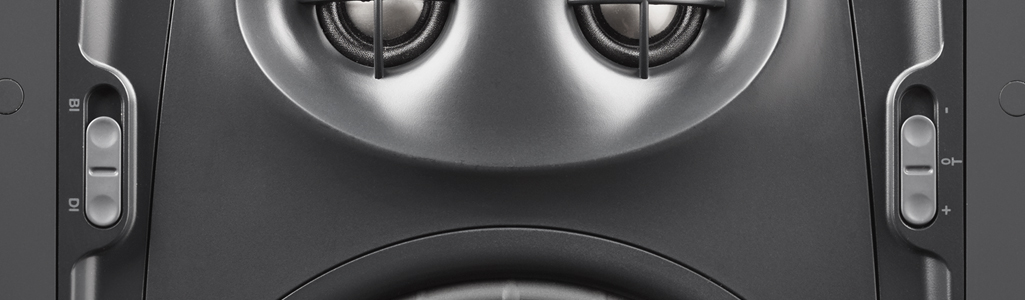

Surround Mode Switch
Set the speaker to bipole or dipole to get the perfect sound for your application and preference.
Tweeter Compensation Switch
Adjust the tweeter’s output by up to 3dB for perfect, customized sound.
Ribbed Surround
Ensures linear cone movement for tighter bass with less distortion.
Thin-Bezel Design
Magnetic, one-step paintable grill keeps the speaker out of sight for a smooth, minimalistic finish.
Exclusive Tension Dogs
Screws hold speakers in place during installation with just a quarter turn. Just tighten fully for easy release.
Install Cover
Protects speaker during install and doubles as a handle.
Simple, Versatile Brackets
These speakers are compatible with our ES-ESS brackets.
Partner Rewards
Episode® Signature Speakers are available exclusively for Partner Rewards Members.
Pure Sound
Raises the bar on everything you've ever heard.
Form Rivals Function
Designed for the world’s greatest stage.
Installs Made Easy
Integrator-friendly can’t even begin to describe it.
Specs
Specifications
| ESS-1700T-IWSURR-6 |
|---|
Gold plated push terminals |
43 Hz - 20 kHz |
Suround Mode Bi/Di |
5 lb |
8 ohm |
140 Watts |
90 dB |
3/4" Pure titanium dome tweeters |
6" Honeycomb fiberglass Nomex cone woofer |
Finished Dimension w/ Grill: 8.9" x 13" |
7.6" |
11.7" |
Mounting Depth: 3.7" Mounting Depth w/ Enclosure: 3.8" |
Connector Type |
Frequency Response |
Adjustments |
Weight |
Nominal Impedance |
Power Peak |
Sensitivity |
Tweeter |
Woofer |
Dimensions (W x H x D) |
Cutout Width |
Cutout Height |
Mounting |
Support
Manuals and Guides
Sales Resources
Support Documents
Episode Poster - Architectural Line
Want a full-size poster shipped to you? Email us here.
Lifetime Limited Warranty
All Episode® Signature Speakers have a Lifetime Limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products that have been abused, modified, or disassembled. Products to be repaired under this warranty must be returned to Snap One or a designated service center with prior notification and an assigned return authorization number (RA).
