JVC offers the ultimate BLU-Escent laser technology with 3,000 lumens brightness, 20,000 hour long-life illumination and 8K e-shiftX display. The RS4100 is a further upgrade with our best lens design and 100,000:1 Native Contrast. It also features the newest HDMI 2.1 standard with a 4K/120P & 8K/60P inputs along with 100% DCI color coverage for the pinnacle of home theater performance.
JVC offers the ultimate BLU-Escent laser technology with 3,000 lumens brightness, 20,000 hour long-life illumination and 8K e-shiftX display. The RS4100 is a further upgrade with our best lens design and 100,000:1 Native Contrast. It also features the newest HDMI 2.1 standard with a 4K/120P & 8K/60P inputs along with 100% DCI color coverage for the pinnacle of home theater performance.
3,000 Lumens Brightness provides a stunning image, even with larger screen home theaters. Vibrant color is assured with 100% REC709 and approximately 100% of the DCI standard. The BT2020 color mode insures full compatibility with the newest 4K HDR content. D-ILA imaging chips offer the best black level and contrast in the industry.
JVC’s proprietary 3rd generation “BLU-Escent” Laser Phosphor light engine uses Blue Laser diodes with a new compact design, higher output, greater efficiency and quieter operation. “BLU-Escent” enables 3,000 lumen light output and 20,000 hour long life illumination. Increased brightness ensures compatibility with larger screen sizes, and improved HDR performance, bringing greater depth and dimensionality to home theater screens. Laser also offers faster power on and power off, as well as dynamic dimming for infinite dynamic contrast.
High quality projection optics involve a lot more than just the lens. For 2022, JVC is adding a newly designed, high contrast optical block to further improve the image.

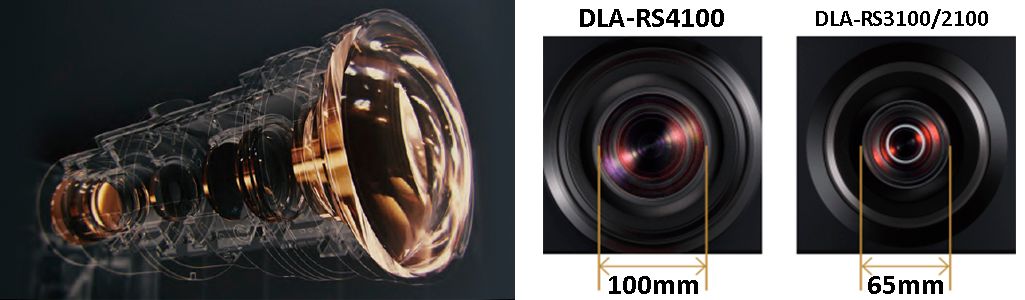

The RS4100 uses a 100mm diameter all glass design with 18 elements in 16 groups, and a full aluminum lens barrel for the highest resolution image at every corner of the screen. The 2X Zoom along with 100% Vertical and 43% Horizontal shift provide exceptional installation flexibility. The 100mm diameter maximizes light output to the screen. Five special low dispersion lens accommodate the different refractive index of Red, Green and Blue to suppress chromatic aberration, color bleeding etc. Fully motorized controls make it easy to adjust.
JVC is the first home theater projector to deliver 8K input and full 8K output. 8K e-shiftX uses a new 240hz Driver with 4-Way/Multi-Axis Shift to deliver true 8K resolution with over 35 million addressable pixels. It’s pixel perfect!
JVC supports HDMI 2.1, which is the latest standard, and includes both 4K/120P & 8K/60P inputs for the newest gaming devices.

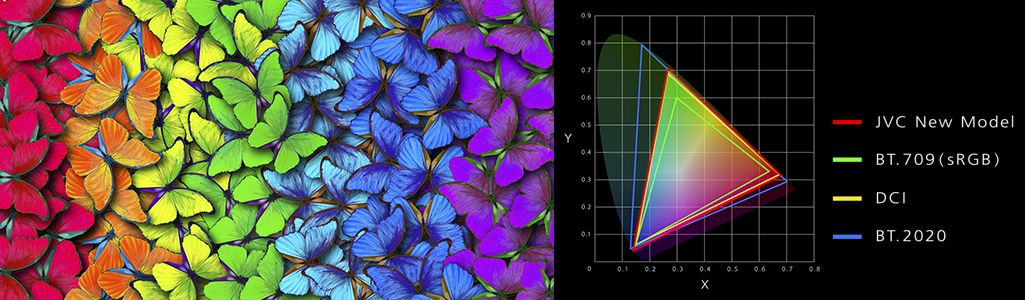

A cinema filter can be engaged which expands DCI color coverage to 100% and BT2020 coverage to approximately 77%.

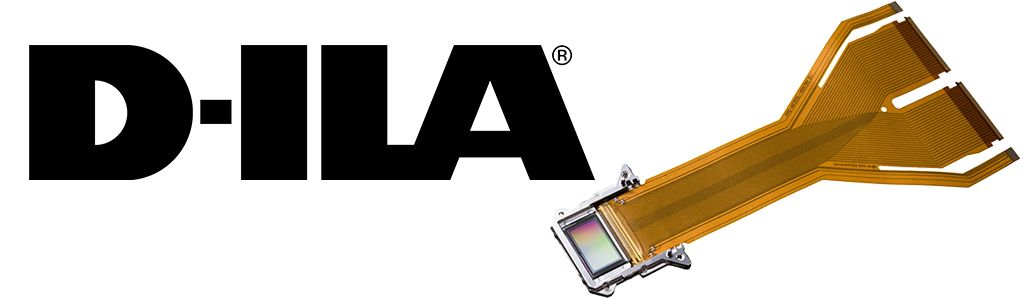

JVC’s latest D-ILA imaging chips offer the best black level and highest native contrast in the industry. A dual aperture light engine design in combination with these D-ILA chips improves the native contrast ratio to 100,000:1, with infinite dynamic contrast.
For use with an ultra-wide screen such as a 2.40:1 or Cinemascope design. This saves and recalls up to 10 different combinations of lens settings for different aspect ratios, including focus, zoom and lens shift, as well as pixel alignment and screen masking.
This is JVC’s unique Dynamic Tone Mapping solution which is essential for watching 4K HDR content. Hollywood does not have a standard for 4K HDR brightness. So, JVC dynamically analyzes the picture on either a frame by frame or scene by scene basis. Next, JVC seamlessly adjusts all aspects of picture quality for the absolute best picture with each program.
JVC leads the industry with their new Theater Optimizer feature. Simply input screen size and screen gain. The projector takes this into account, along with throw distance, lamp hours, and many other variables, and adjusts the picture over time to maintain the optimum picture for any home theater installation.
Just press play! JVC projectors offer completely automatic operation. During setup, the preferred picture mode can be saved for all popular signal types. Based on that, the JVC automatically switches picture modes, with no need for any input from the user. It does not get any easier than this.
This JVC projector is ISF licensed for the ultimate in calibration capability, and feature specific ISF memories which can be unlocked by a certified ISF calibrator.

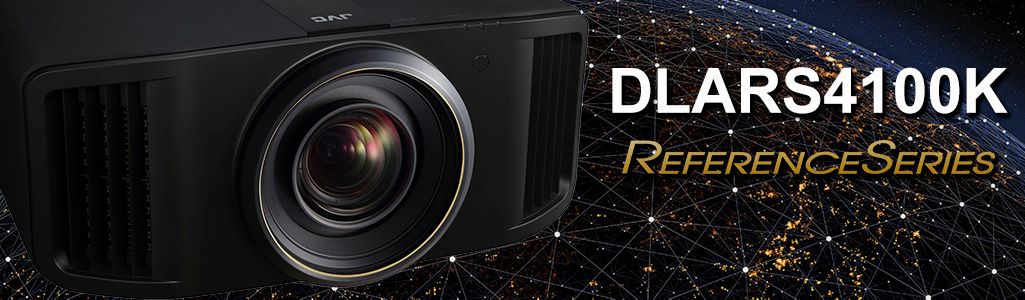

JVC-DLA-RS4100K |
---|
8K e-shift (4-direction shift), Native 4K (4096x2160), 8192x4320 Precision via 8K e-shiftX technology |
Aspect Ratio: 16:9 (Native) Imaging Device: 0.69 in DILA Device (4096 × 2160) ×3 |
3000 |
Native: 100,000:1 | Dynamic: ∞:1 |
2:1 |
Memory: Yes/with 10 Installation Modes |
BLU-Escent Laser Diode |
2 (48Gbps, HDCP2.3, no support for CEC) |
Yes |
1 |
1 |
19 3/4" x 9 3/16" x 20 3/4" |
55.77 lbs |
Supported Resolutions |
Features |
Lumens |
Contrast Ratio |
Zoom Ratio |
Lens |
Lightsource |
Inputs |
RS-232 Ports |
Ethernet Ports |
12V Trigger |
Dimensions (W x H x D) |
Weight |
We want to make our Distributed Brand program as easy as possible. That’s why we process all claims directly, without any third party telephone tag. Specific warranty terms and details from the manufacturer are below.
This projector comes with a 3-Year Parts & Labor/Advanced Replacement Warranty.
