Atlona® Captivate™ 4K ePTZ Auto-Framing Camera

- By ordering this product with custom specifications you acknowledge that the sale is final and the product may not be returned or exchanged.

- Send us a sample of the wood that you would like the speaker to match. Your order will be placed on hold for up to 14 days as we wait for your wood sample. Samples not received after 14 days will cause your order to be canceled. Please send your physical sample along with a copy of your Triad Order attached to the address listed below.

Triad Speakers
Sales - RUSH - Paint Sample
15835 NE Cameron Blvd.
Portland, OR 97230
- Your order will be placed on hold for up to 14 days as we wait for your color sample. Samples not received after 14 days will cause your order to be canceled. Your sample must be of a solid color. Wood, multi colored wallpaper/fabrics and faux finishes CANNOT be sent as samples for custom paint matching. Please send your physical color sample along with a copy of your Triad Order attached to the address listed below.

Triad Speakers
Sales - RUSH - Paint Sample
15835 NE Cameron Blvd.
Portland, OR 97230

Add to cart
Description
Specs
Support
Description
Description

The Atlona Captivate™ AT-CAP-FC110 is an enterprise-grade ePTZ camera ideal for use in video conferencing, distance learning, and other applications in huddle rooms and small to medium-sized meeting spaces. This camera features a USB-C® interface for video and audio. The CAP-FC110 can be used with the Omega™ Series, AT-USB-EX100-KIT, and OmniStream™, or interfaced directly with a PC. This camera offers a 110° wide horizontal field of view and features electronic pan, tilt, and zoom capabilities, as well as an auto-framing functionality that reframes the camera based on detection of up to six participants. The CAP-FC110 delivers high-quality imaging with video resolutions up to 4K @ 30 Hz and features a 2-microphone array with a 5-meter (16 foot) audio pickup range. It can be installed on a flat-panel display with an adjustable mounting clip and features a 1/4-20 UNC standard screw thread for a tripod or other camera mount.

Atlona® Captivate™ 4K ePTZ Auto-Framing Camera

The Atlona Captivate™ AT-CAP-FC110 is an enterprise-grade ePTZ camera ideal for use in video conferencing, distance learning, and other applications in huddle rooms and small to medium-sized meeting spaces. This camera features a USB-C® interface for video and audio. The CAP-FC110 can be used with the Omega™ Series, AT-USB-EX100-KIT, and OmniStream™, or interfaced directly with a PC. This camera offers a 110° wide horizontal field of view and features electronic pan, tilt, and zoom capabilities, as well as an auto-framing functionality that reframes the camera based on detection of up to six participants. The CAP-FC110 delivers high-quality imaging with video resolutions up to 4K @ 30 Hz and features a 2-microphone array with a 5-meter (16 foot) audio pickup range. It can be installed on a flat-panel display with an adjustable mounting clip and features a 1/4-20 UNC standard screw thread for a tripod or other camera mount.

Applications

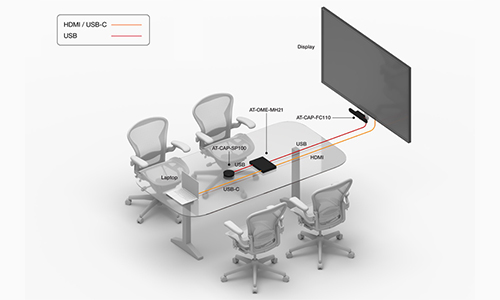

  • Huddle rooms – The CAP-FC110 offers a generous 110° coverage for huddle rooms and other, compact-sized spaces. Combine with the AT-CAP-SP100 speakerphone and AT-OME-MH21 switcher, or an Omega Series extender for a comprehensive huddle room AV solution.
  • Small to medium-sized meeting rooms – This camera automatically frames the image based on people detected within the camera’s field of view, and continuously adjusts as participants enter and leave. The CAP-FC110 can be used with the CAP-SP100 and AT-OME-MS42-KIT

Enterprise-Grade Camera for Huddle Rooms

The AT-CAP-FC110 delivers high-quality performance and imaging of a conventional PTZ camera, but with a size and price appropriate for environments with up to 6 people. This camera complements small Omega Series AV systems.

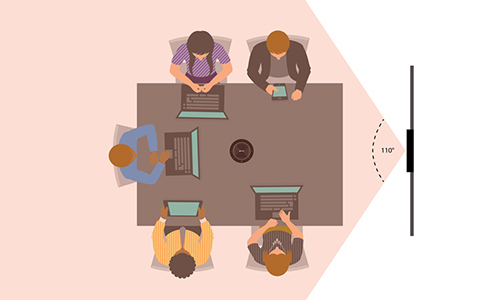

Wide Coverage for Small Spaces

This camera offers a wide 110° horizontal field of view that provides generous coverage for huddle rooms and smaller meeting spaces. User-adjustable ePTZ (pan, tilt, and zoom) position controls are available to achieve the best possible image composition.

Auto-Framing

The CAP-FC110 can automatically resize and center the image based on detection of up to six people. This is a great feature that optimizes image composition to help make the meeting more engaging for remote participants. The auto-framing continuously adapts whenever someone enters or leaves the camera’s field of view.

Technical Features

  • Designed for video conferencing and other applications with AV systems supporting USB interfacing and extension
  • USB-C interface for video and audio, as well as device powering
  • Universal PC and Mac® compatibility through standard UVC 1.1 (USB Video Class) driver enables simple plug-and-play operation
  • Works with popular soft codec and UC clients such as Microsoft Teams, Zoom, BlueJeans, Webex®, Google Meet™, GoToMeeting®, and Amazon Chime®
  • USB camera control available from compatible apps such as Zoom Rooms
  • Automatically detects and re-frames camera for up to 6 participants
  • 4x digital zoom and 110° wide horizontal field of view (zoom is fixed to 1x for 4K video)
  • Fast, responsive ePTZ (electronic pan, tilt, and zoom) camera functions
  • 2-microphone array with 5 meters (16 foot) audio pickup range
  • High-performance imaging, fine detail, and color rendering with 1/2.8” 4K CMOS sensor
  • Available video resolutions from 640×360 up to 4K @ 30 Hz (up to 1080p with ePTZ or auto-framing)
  • Fast and accurate autofocus, plus auto white balance mode
  • Auto exposure mode with backlight compensation for low-lighting conditions
  • Picture controls available for brightness, color, saturation, contrast, and sharpness
  • IR control – convenient handheld IR remote control included
  • Three camera presets available, accessible from IR remote
  • On-screen display (OSD) for setting up and adjusting camera settings
  • Adjustable mounting clip for installing camera on a display
  • Compatible with 1/4-20 UNC tripod screw thread standard
  • Supports wall installation below a display with third-party mounting hardware (image flip/mirroring available)
  • Includes installation guide, IR remote control, and 1.8 meters (6 foot) USB-C to USB type A male cable

Specs
Specifications
AT-CAP-FC110
USB interface: 1xUSB 3.0: Type C
MJPEG, H.264, H.265: 3840x2160 @ 30/25 Hz, 1920x1080 @ 30/25 Hz, 1280x720 @ 30/25 Hz, 640x360 @ 30/25 Hz
YUY2, NV12: 1920x1080 @ 30/25 Hz, 1280x720 @ 30/25 Hz, 640x360 @ 30/25 Hz
1/2.8” CMOS, Progressive scan
f=2.1 mm
D: 120.1°, H: 109.7°, V: 87°
32° F ~ 104° F (0° C ~ 40° C)
-4° F ~ 140° F (-20° C ~ 60° C)
1.89" x 2.91" x 8.27"
10.58 oz

Inputs
Video Resolution
Sensors
Lens
Viewing Angle
Operating Temperature
Storage Temperature
Dimensions (W x H x D)
Weight
