Wirepath™ Surveillance 750 Series Bullet Analog Outdoor Camera

Color

- By ordering this product with custom specifications you acknowledge that the sale is final and the product may not be returned or exchanged.

- Send us a sample of the wood that you would like the speaker to match. Your order will be placed on hold for up to 14 days as we wait for your wood sample. Samples not received after 14 days will cause your order to be canceled. Please send your physical sample along with a copy of your Triad Order attached to the address listed below.

Triad Speakers
Sales - RUSH - Paint Sample
15835 NE Cameron Blvd.
Portland, OR 97230
- Your order will be placed on hold for up to 14 days as we wait for your color sample. Samples not received after 14 days will cause your order to be canceled. Your sample must be of a solid color. Wood, multi colored wallpaper/fabrics and faux finishes CANNOT be sent as samples for custom paint matching. Please send your physical color sample along with a copy of your Triad Order attached to the address listed below.

Triad Speakers
Sales - RUSH - Paint Sample
15835 NE Cameron Blvd.
Portland, OR 97230

Add to cart
Description
Specs
Description
Description

Many surveillance applications present unique design challenges, but this bullet has you covered! Chock full of installer friendly features, this camera includes an external test port that makes video adjustments a breeze, external zoom/focus so you can completely install the camera before tweaking these settings, and a heater for smooth operation in extreme temperatures! It also features an exclusive Wirepath™ housing design that boasts a thicker, stronger mount bracket and wider barrel. This high-resolution, vandal-resistant camera is ideally suited for indoor/outdoor applications such as monitoring perimeters, warehouses and entrances.

Bullet Analog Outdoor Camera with IR and Heater

Many surveillance applications present unique design challenges, but this bullet has you covered! Chock full of installer friendly features, this camera includes an external test port that makes video adjustments a breeze, external zoom/focus so you can completely install the camera before tweaking these settings, and a heater for smooth operation in extreme temperatures! It also features an exclusive Wirepath™ housing design that boasts a thicker, stronger mount bracket and wider barrel. This high-resolution, vandal-resistant camera is ideally suited for indoor/outdoor applications such as monitoring perimeters, warehouses and entrances.

Important Notice - When powering the camera using a CCTV tester, you must connect the power via the Test Port adapter power connection - not the pigtail. In addition, the Test Port adapter power connection for this camera only uses a 12 V DC power supply. Using a 24 V AC, or other voltage power supply with the Test Port Adapter will result in damage to the camera, and possibly the power supply.
@@altText

High Resolution

@@altText

Adjustable field of view

@@altText

Protected from water and dust

@@altText

Easily power over long distances

@@altText

Easy setup with on-screen display

@@altText

Built-in Heater prevents freezing up

@@altText

Perfect foreground/ background contrast

@@altText

See in the dark with IR and Sense-Up

@@altText

Test port for fast installation

@@altText

External Zoom and Focus

To make this bullet as installer friendly as possible, we put the zoom/focus adjustments on the outside, meaning you can connect all your wires and get the camera completely installed before tweaking these settings. No more unscrewing the lens cap and letting in unwanted humidity every time you want to make an adjustment - just use the included hex wrench, which is the same tool used to adjust the mount bracket. Now that’s convenient!

@@altText

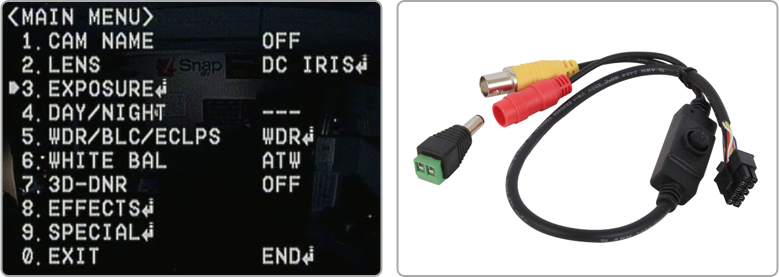

Test Port + CCTV Tester = Easy Adjustments

Using the external video test port, you can easily adjust video and OSD settings right there at the camera with our optional CCTV tester No more running back and forth to the DVR to adjust zoom, focus or video enhancements. The included breakout cable allows you to power the camera even if there’s no power on the jobsite, and it has an OSD joystick for easy control of On-Screen Display.

@@altText

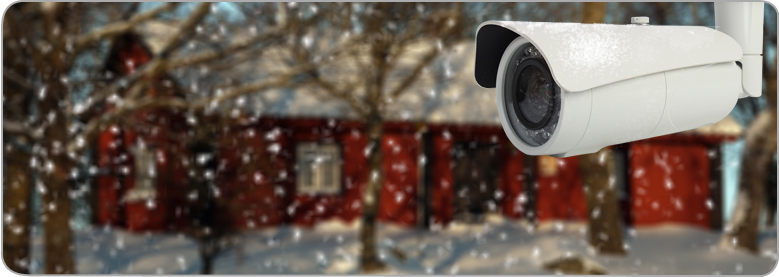

Built-in Heater

This bullet includes a heater that will turn on and off automatically to raise the temperature inside the camera when necessary, allowing it to operate effectively all the way from -40° to 140° Fahrenheit.

@@altText

Auto Iris Lens

A built-in motor controls the amount of light that reaches the camera’s imaging sensor, allowing it to adjust to get the best picture possible in any condition. Ideal for situations where lighting conditions vary and there’s a lot of natural light.

@@altText

True Day/Night

For more accurate, vivid color reproduction during daytime use, an IR Cut filter is automatically moved over the lens to block unwanted IR. At night, the filter is removed to deliver maximum visibility and clear IR illumination.

@@altText

OSD

Optimize performance by tailoring the camera’s settings for the specific application using the on-screen menu. An RS-485 connection is available to remotely change these settings with a compatible DVR.

@@altText

S-WDR

Provides clearer images and even lighting in applications that are simultaneously both bright and dark. This is particularly useful in areas with windows and lots of natural light.

@@altText

Backlight Compensation

Reduces silhouetting so you see foreground subjects clearly when positioned in front of a bright background light source.

@@altText

Highlight Compensation

Don't get blinded by the light! By blocking headlights and other intensely bright areas, contrast is dramatically improved for critical areas of the image.

@@altText

Sense-Up

See in color -in the dark! By automatically slowing the shutter speed, the camera is able to pick up the slightest traces of light to display a bright image.

@@altText

Smart IR

Automatically adjusts the amount of IR LED intensity to eliminate over-exposure and evenly illuminate the subject.

@@altText

3D DNR

A powerful digital signal processor scans the image and reduces noise in low-lux conditions for a sharper image.

@@altText

Privacy Masking

Block out sensitive or privileged areas by placing rectangular blocks or "masks" over installer-defined areas.

Specs
Specifications
WPS-750-BUL-AH-GR WPS-750-BUL-AH-WH
Gray
White
Arm 90°: 3.4" x 4.72" x 9.96"
Arm Straight: 3.4" x 3.28" x 11.62"
Arm 90°: 3.4" x 4.72" x 9.96"
Arm Straight: 3.4" x 3.28" x 11.62"
30% - 80% RH
30% - 80% RH
14°F - 140°F
14°F - 140°F
3.6W, 300mA
3.6W, 300mA
12V DC (1A), 24V AC (500mA)
12V DC (1A), 24V AC (500mA)
1.70 lb
1.70 lb
>48dB
>48dB
Yes
Yes
Yes
Yes
Yes
Yes
78.1° (3.7mm) - 28.1° (12mm)
78.1° (3.7mm) - 28.1° (12mm)
0.45
0.45
0.01 Lux color, 0 Lux IR on
0.01 Lux color, 0 Lux IR on
1/3" Color Sony Super HAD II
1/3" Color Sony Super HAD II
80 Ft.
80 Ft.
Yes
Yes
NTSC:768(H) x 494(V)
NTSC:768(H) x 494(V)
550
550
2:1 Interlace
2:1 Interlace
Yes
Yes
Internal
Internal
IP66
IP66
Yes
Yes

Color
Dimensions (W x H x D)
Operating Humidity
Operating Temperature
Power Consumption
Line Voltage
Weight
Signal to Noise Ratio
Auto Gain Control
Auto Iris
Backlight Compensation
Est. Horizontal Viewing Angle
Gamma
Minimum Illumination
Image Sensor
IR Range
Motion Detection
Effective Pixels
Resolution (TVLs)
Scanning System
Smart IR
Sync Mode
Weather Rating
White Balance

5-Year Limited Warranty

This Wirepath™ product has a 5-Year Limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products which have been abused, modified or disassembled. Products to be repaired under this warranty must be returned to SnapAV or a designated service center with prior notification and an assigned return authorization number (RA).
