This Wirepath™ Surveillance Multi-function CCTV Tester with 3.5in LCD Display will save you time - and money - on your very next CCTV installation. Not only can you see the camera video to adjust focus or the varifocal lens, but you can also power the camera directly from its lithium ion battery. That means only one trip up the ladder to mount the camera, test cables, and adjust settings. Plus it's a complete multimeter and UTP cable tester - all in one tool.
This Wirepath™ Surveillance Multi-function CCTV Tester with 3.5in LCD Display will save you time - and money - on your very next CCTV installation. Not only can you see the camera video to adjust focus or the varifocal lens, but you can also power the camera directly from its lithium ion battery. That means only one trip up the ladder to mount the camera, test cables, and adjust settings. Plus it's a complete multimeter and UTP cable tester - all in one tool.

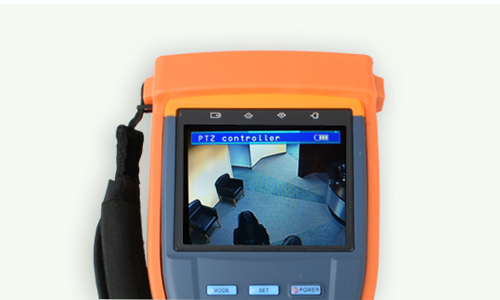

See what you've been missing with one of the largest color screens available on a tester! Perform real-time camera adjustments like focus and zoom, or tweak advanced settings like BLC or Sens-Up to adjust for lighting conditions.

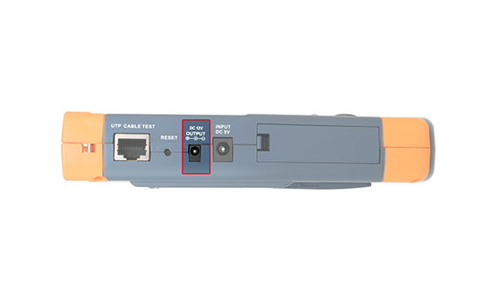

Did you get to the job before the power company flipped the switch? No problem! Use the built-in 12VDC, 700mA output and included cable to power the camera from the tester's internal battery. One trip up the ladder and you're done! This product outputs DC 12v/700mA.

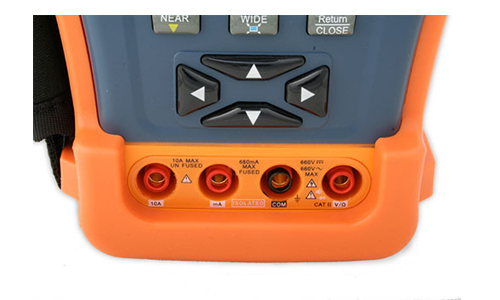

It slices, it dices - this Ginsu of testers is a complete multimeter. Using the included probes you can check all of the following in a single convenient package: voltage, continuity, resistance, current, capacitance and diode. This is perfect for checking voltage drops over long cable runs to ensure you don't underpower your cameras.

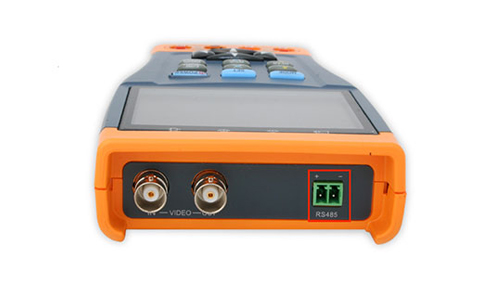

Detailed on-screen camera setup options can be adjusted by using the RS-485 PTZ test mode. Directional controls adjust menu options for quick and easy setup. When using a true PTZ camera you can adjust pan, tilt, zoom, aperture, scan tests and configure camera presets. More than twenty PTZ protocols are supported including PELCO-D. A built in address search feature will find the attached device and report its address. In addition to RS485 it also supports RS232 and RS422 interfaces with baud rates ranging from 150 to 19200bps.

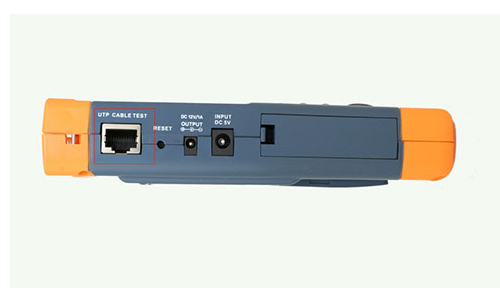

If you use baluns or IP cameras, you'll love the built-in UTP tester. Just plug in the included adapter back at the head-end, then use the large LCD to confirm continuity and see pin mapping.

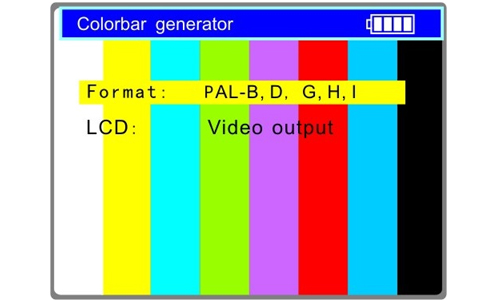

Built-in color bar generator for adjusting color in the DVR or calibrating CCTV monitors.

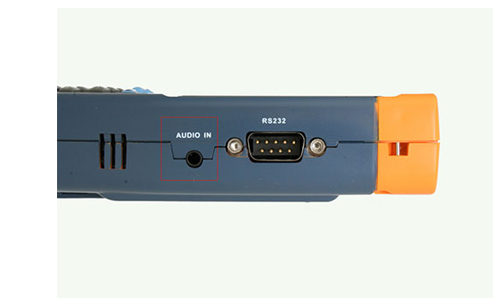

Need to confirm that a camera's microphone is working? Use the included adapter and listen to audio through the tester's built in speaker.

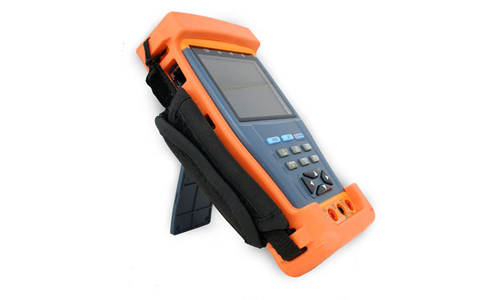

We've spent many hours on ladders, so we've included features to help you get things done - while trying to not fall off. A carrying case is included to hold all the accessories and an easy-grip handle works great for lefties or righties. Plus there's a flip-out stand for setting on top of the ladder or workbench.
| WPS-CCTV-TESTER |
|---|
3.7" x 6.93" x 1.42" |
30%-90% |
14°-122°F |
.75 lb |
Dimensions (W x H x D) |
Operating Humidity |
Operating Temperature |
Weight |
This Wirepath™ product has a 2-Year Limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products which have been abused, modified or disassembled. Products to be repaired under this warranty must be returned to Snap One or a designated service center with prior notification and an assigned return authorization number (RA).
