Digital Watchdog IR LED IP PoE+ Illuminator - 850nm
These SiteWatch™ DW-ILIRIP850 are NDAA/TAA compliant IP-enabled Infrared (IR) LED outdoor illuminators. The illuminators incorporate the latest surface mount Dual-Core™ LEDs, combined with enhanced optical output and outstanding reliability to provide users with smart lighting solutions for a wide range of applications. The SiteWatch™ illuminators include an interchangeable lens pack to deliver a variety of angles out of the box providing users the flexibility to create different elliptical beam profiles. Using PoE and IP communication, the SiteWatch™ detectors support direct integration with DW Spectrum® IPVMS.
Digital Watchdog IR LED IP PoE+ Illuminator
The SiteWatch™ DW-ILIRIP850 is NDAA/TAA compliant IP-enabled Infrared (IR) LED outdoor illuminators. The illuminators incorporate the latest surface mount Dual-Core™ LEDs, combined with enhanced optical output and outstanding reliability to provide users with smart lighting solutions for a wide range of applications. The SiteWatch™ illuminators include an interchangeable lens pack to deliver a variety of angles out of the box providing users the flexibility to create different elliptical beam profiles. Using PoE and IP communication, the SiteWatch™ detectors support direct integration with DW Spectrum® IPVMS.

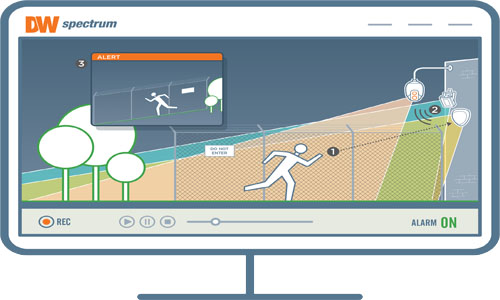

SightWatch™ illuminators and detectors
When the detectors detect motion, the illuminators can be programmed to turn on, and cameras can be activated to record. All devices can be controlled via DW Spectrum® IPVMS.

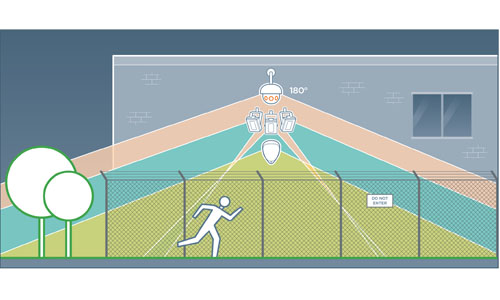

Amplify panoramic surveillance
Combine detectors and illuminators with MEGApix® Pano™ multi-sensor and hemispheric fisheye cameras to create a formidable panoramic solution.

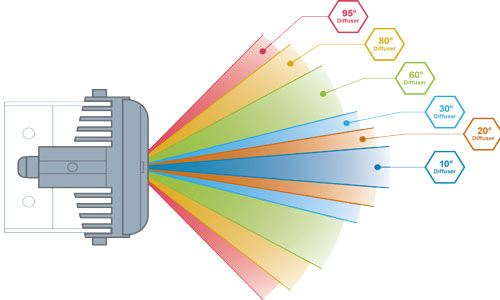

Interchangeable lens diffuser kit
Each SiteWatch™ illuminator is supplied with an interchangeable lens diffuser kit, allowing installers to easily change the angle of illumination and align perfectly with the camera’s field of view.
Features
- Hybrid Infrared and white light LED illuminator
- Interchangeable lens pack to deliver a variety of angles out of the box
- Direct integration with DW Spectrum® IPVMS
- Create different elliptical beam profiles
- Motion-activated
- CleanView hydrophobic coating repels water, dust and grease
- Activate white-light to deter intruders
- Remotely adjustable photocell and illumination levels
- 850nm wavelength
- Ultra-white - 6000K white light
- Web interface built-in
- High-power Dual-Core™ LEDs with advanced, current limited, integral control circuitry
- NDAA/TAA compliant
- IP66 environmental-rated dust-tight and water-resistant
- IK 09-rated impact-resistant
DW-ILHYBIP850 |
---|
26W |
3 lbs (1.35 kg) |
IP66 |
PoE+ (IEEE802.3at) |
High-power Dual-Core™ LEDs with advanced, current limited, integral control circuitry |
Adjustable 10% - 100% |
94-374ft white light coverage |
IK-09 |
-58 °F - 122°F (-50 °C - 50°C) |
4.33 in. x 6.34 in. x 3.07 in. (110 x 161 x 78mm) |
Power Consumption |
Weight |
Weather Rating |
Power Requirements |
LED |
Illumination |
Coverage Area |
Protection Rating |
Operating Temperature |
Dimensions (W x H x D) |
