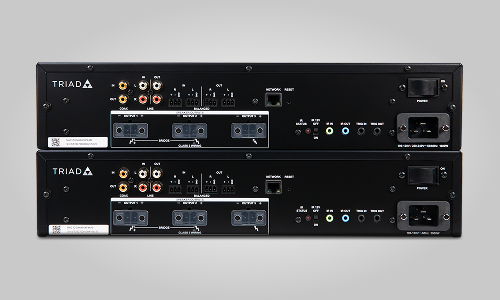

Triad 70V/8-ohm DSP Amplifier
Designed for professional-grade installations and premium outdoor audio experiences, Triad's first-ever Hybrid Amplifiers have set a new standard in power, flexibility, and ease of use. Delivering 1000W and 1500W per channel, it outperforms competitive models with reliable power output. A state-of-the-art, full-color LED user interface makes setup faster and more intuitive, reducing time and complexity. With its versatile 3-channel configurations, perfect for dual subwoofers, stereo walking zones, or power-bridged systems, and full compatibility with the new Triad outdoor products coming soon, this amplifier is built to scale with your vision.

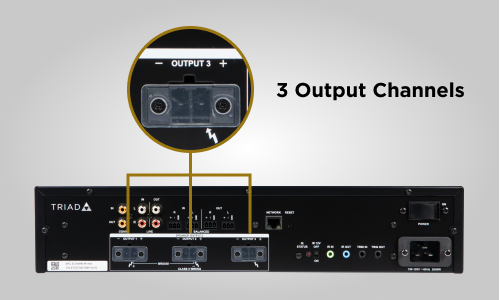

Configuration Flexibility
Deliver exceptional performance for extensive speaker setups. With 3 configurable output channels, it supports 70V, 8-ohm, and hybrid configurations, such as dual subwoofer systems, dual satellite channels (walking stereo), or power-bridging/bridged single subwoofer configurations.

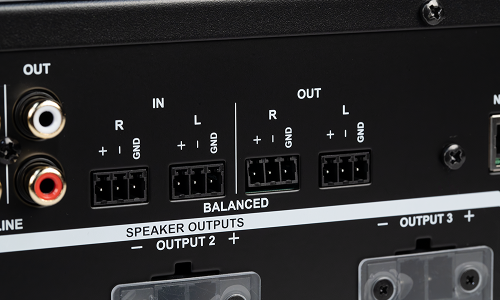

Customizable Inputs & Outputs
Accommodate a variety of source levels, from mic level to line level and pro audio. Intuitive UI and WebUI adjust the input gain settings as needed for each source, ensuring a quick and tailored setup for each project.
Industry-Leading Power
Bring greater install opportunities for large-scale installations that require more power. The 1000W and 1500W per channel offerings support macro systems with superior audio performance and clarity.
Powerful DSP Controls
The cutting-edge DSP control allows you to fine-tune for the perfect sound. With expanded limiter parameters and high tilt/shelf EQ capability, bringing your immersive sound experiences to life.

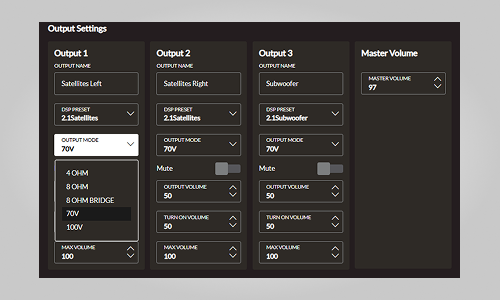

Intuitive UI
The premium full-color LED display offers an intuitive experience, both during setup and education. Additionally, the Web UI has been newly designed to seamlessly navigate customization options, including adjusting input mode, source, pre-out, and gain adjustments.
Control System Compatible
Triad Hybrid Amplifiers connect with Control4 for a smooth integration process. The amplifiers are designed for automation, delivering a smooth and seamless installation experience with intuitive monitoring and control.

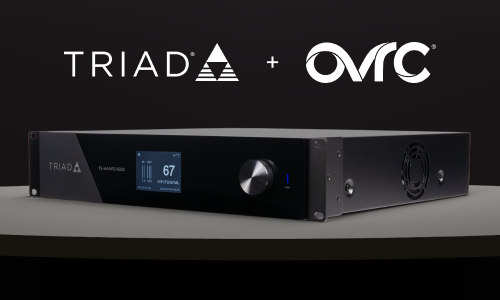

Remote Monitoring and Configuration
Access the amplifier with OvrC to complete firmware updates, system reboots, and more. OvrC is a free, cloud-based platform designed for professionals to remotely install, monitor, and troubleshoot connected devices.

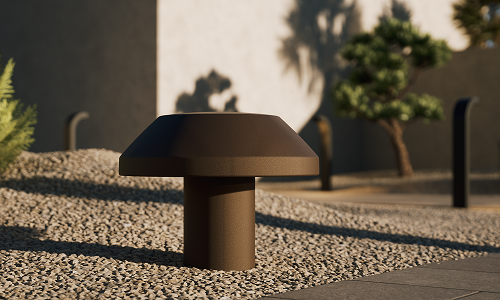

Better Together
Triad's best home theater experience is now outdoors. The Triad Hybrid Amplifiers provide an unmatched cinematic listening experience when paired with Triad's family of premium outdoor and landscape speakers and subwoofers.
Specs
Specifications
| TS-HAMP3-1000 | TS-HAMP3-1500 |
|---|---|
1001-1500W |
1001-1500W |
RCA Analog input: 20kΩ Balanced Analog input: 101Ω Digital Coax Input: 101Ω |
RCA Analog input: 20kΩ Balanced Analog input: 101Ω Digital Coax Input: 101Ω |
1000W per channel @ 4 ohm |
1500W per channel @ 4 ohm |
500W per channel @ 8 ohm |
750W per channel @ 8 ohm |
<1%, 22kHz BW at 1W and Full Power |
<1%, 22kHz BW at 1W and Full Power |
3 |
3 |
± .5dB at 1/8th power (20Hz to 20kHz) |
± .5dB at 1/8th power (20Hz to 20kHz) |
15.5 lbs |
16.7 lbs |
2Vrms, max power |
2Vrms, max power |
17" x 3.5" x 16.5" |
17" x 3.5" x 16.5" |
Watts Per Channel |
Impedance Input |
Power Output @ 4 ohm |
Power Output @ 8 ohm |
Total Harmonic Distortion (THD) |
Channels |
Frequency Response |
Weight |
Sensitivity Input |
Dimensions (W x H x D) |
Support
Manuals and Guides
Triad Limited Warranty Term
This Limited Warranty runs for a period of ten (10) years for indoor speakers, three (3) years for Triad powered subwoofers, subwoofer amplifiers and outdoor speakers, five (5) years for all Triad PAMP V2 Amplifiers and two (2) years for all other Triad electronics, provided that Triad Distributed Audio Series 1, Series 2, or Series 3 branded speakers will have a limited lifetime warranty, except for the grill, which is warranted for five (5) years. The terms of our limited warranties can be found here.
