Our professional-grade Cleerline test kit gives integrators the advanced tools they need for optical link testing, plus the software to comb through and store data records.

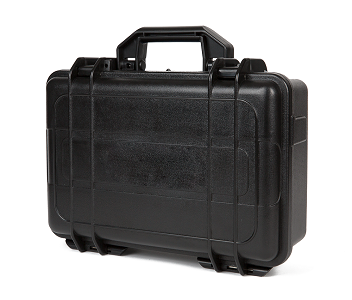

Our professional-grade Cleerline test kit gives integrators the advanced tools they need for optical link testing, plus the software to comb through and store data records. The optical light meter and light source units test both multimode and single-mode fibers at four wavelengths with a range of 70db, measuring optical power loss on all installed fiber. Plus, new software for PCs allows for fast testing and easy reporting on data output. Kit includes adapters to test SC, LC, and FC terminated cables; both termination test units and included cables and adapters are contained in a rugged hard-shell case that organizes and protects all your essential equipment.
With a range of 70db, this basic test kit lets you test installed cables, connectors, splices, and links, and provides verification of cable links up to industry standards. An Optical Light Source and Power Meter (LSPM) measures loss when compared to estimated loss calculated for the link or “loss budget”. The SSF™ LSPM test set is best utilized with a known good reference cable, calibrated to 0db.
An Optical Light Source and Power Meter (LSPM) tester measures loss by comparing it to estimated loss which is calculated for the link – commonly known as a “loss budget”. The SSF™ LSPM test set is best utilized with a known good reference cable, calibrated to 0db.
Featuring WaveID for auto-wavelength identification, this kit doesn’t just test multimode and single-mode fiber using one frequency for each type of cable. It can also test wavelength frequencies of 850, 1300, 1310, and 1550 nanometers.
Need to revisit older data? Our new testers can store up to 1000 test records.
No more fumbling for the correct adapter cord. A plug-in wall wart (1.5V/5A) power supply is included—and if that’s not enough, the tester features an auto-off function for extended battery life up to 200 hours. If powering with batteries, three AA batteries are required (batteries not included.)
The tester itself has a large LCD display with ambient light detection and intelligent backlight control for use in all environments. Plus, it features an easy-reference power set up for quick operation, as well as easy storage.
1x Power Meter, 1x Light Source, 2x 5.0 V Power Supply, 1x SC-SC OM3 Reference Patch Cable (PC), 2x LC-SC OM3 Reference PC, 1x SC-SC OS2 Reference PC, 2x LC-SC OS2 Reference PC, 2x ST Adapter, 2 ea FC Adapter, 1x SC-SC Female Adapter, 2x LC-LC Female Ad
Storage of up to 1000 test records
