Introducing the MA6 Streaming Amplifier
Built on the same architecture as our flagship M5 Pro server, the MA6 combines reference-grade audio quality with serious all-channel power in a single chassis. The result: effortless sound, zone by zone, backed by the native streaming and deep integration Autonomic is known for.
-
Stream everywhere – Native streaming services built in, plus AirPlay 2 in every zone.
-
Power for Every Zone – Up to 180 W per channel, bridgeable to 350 W/ch for subs and high-power zones.
-
System-wide flexibility – eAudioCast over Ethernet lets amplifiers across the property act as one cohesive matrix.
-
Advanced DSP -- Effortless configuration of crossovers for subs. A fully customizable parametric EQ for the perfect sound in every room.
-
Quiet confidence – Overbuilt heatsinks and a fanless design ensure high reliability in the most demanding environments
With the MA6 and MA4, you get the transparency of a hi-fi preamp, the headroom of a professional-grade power amp, and the simplicity of one integrated system. Purpose-built for both luxury residential and light-commercial projects.

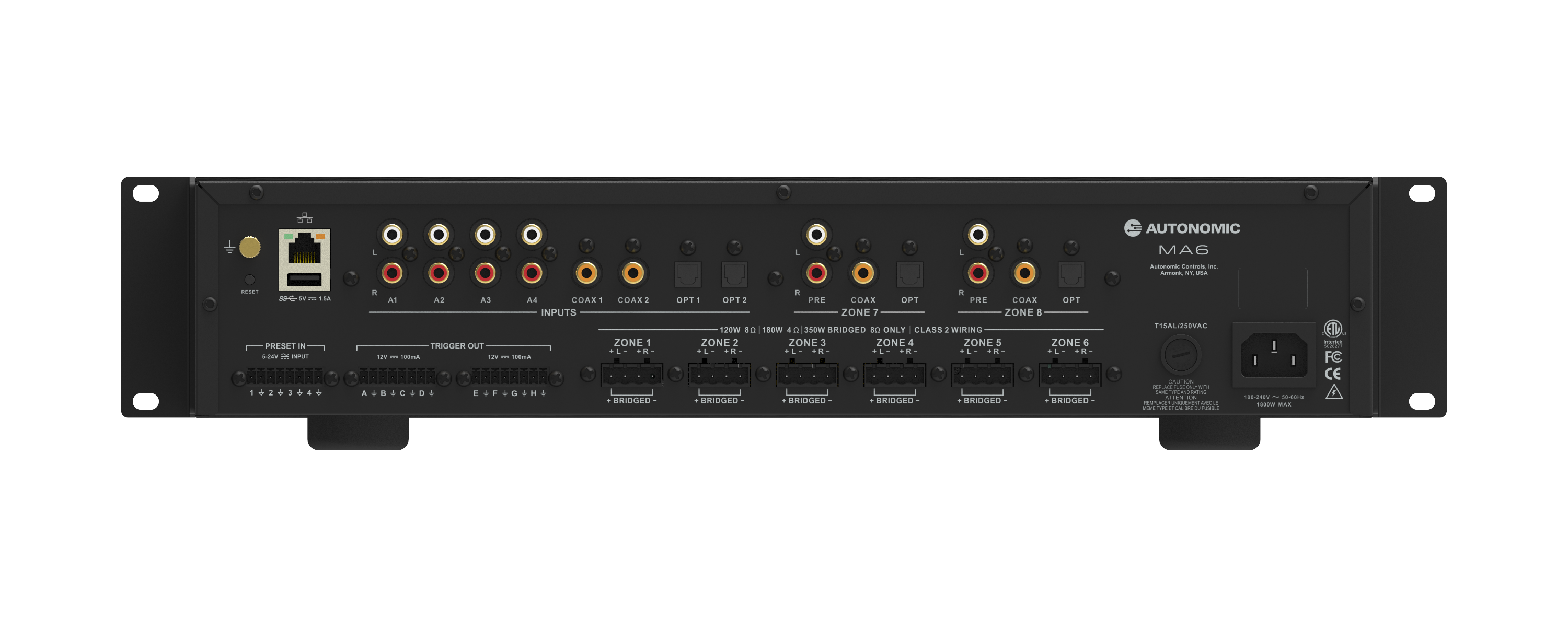

MA6 Streaming Amplifier
MA6 merges the M5 Pro preamp/DAC section with Hypex amplifier modules and Mean Well power supplies, delivering effortless headroom, low noise, and proven reliability. Boasting 120 watts per channel into an 8-ohm load, 180 watts per channel into a 4-ohm load, and up to 350 watts bridged per zone, the MA6 has the power to drive higher-end architectural or floorstanding speakers, subs or mono high-power zones. Its IP controllability makes it the perfect choice in a controlled environment, and onboard ESS Sabre DACs ensure clean and pure sonic performance in every room.
The MA6 is an 8-zone, IP controllable amplifier (six amplified zones and two pre-amp outputs) with three discrete streams of audio, independent AirPlay 2 in every zone, and extensive zone linking capabilities. Use it as a stand-alone, IP controllable streaming amplifier, or pair it with additional MA6s, MA4s, M-6250s, or Mirage Media Servers to create a complete whole-home audio solution, the Mirage Audio System.
Whole-home Amplification with eAudioCast™
Configure a complete, decentralized whole-home audio system that resides solely on the network. Proprietary eAudioCast technology allows network streams to be transmitted, received, and distributed across zones on each Autonomic amplifier. Integrate Autonomic amplifiers seamlessly with Mirage Media Servers to create a harmonious and modern audio system featuring all of the most popular streaming music services and richest digital music files.
High-resolution Audio with ESS Sabre DACs
Our whole streaming amplifier line supports proprietary Autonomic eAudioCast technology, enabling high-resolution audio (HRA), up to 24-bit/192kHz, over Ethernet. The MA6 features premium ESS Sabre DACs on every output, which allow source material to stay in its purest format until the final amplification stage, providing reference-quality distribution of content all over the home. Built-in per-zone DSP, including PEQ, high-pass, low-pass, shelving and notch filters, loudness, and crossovers, gives installers precise control to fine-tune each environment.
Independent AirPlay 2 Streaming
Each of the MA6’s eight zones supports its own independent AirPlay 2 stream, separate from the three discrete onboard streams. This allows every room to accept a direct AirPlay 2 connection from iOS or macOS devices without interrupting playback in other zones.
Scalable to 96 Zones
Large installations are no problem for Autonomic amplifiers, which can be bridged using any combination of MA6, MA4, and M-6250 amplifiers, up to 96 zones. Zone groups can be created to link multiple zones by tying the source selection together across the group. Zone linking can optionally coordinate volume and the power state of linked zones. The MA6 can route audio signals from any of its three discrete streams into any of its eight zone outputs under manual control, or with IP or RS-232 based automation systems.
Flexible Control Options
Autonomic amplifiers are fully IP addressable. Commands and feedback for power, source selection, volume, and muting controls are available for every zone, making integration with control systems quick, easy and effective. Standalone control options include the TuneBridge App for iOS and Android devices, and the Autonomic web interface. For installers, the MA6 also includes eight 12V trigger outputs, opto-isolated inputs, and a gold-plated ground lug for clean system bonding.
Optional Internal Storage
The MA6 can be configured with up to 1TB of internal NVMe SSD storage, allowing users to store and access high-resolution music libraries locally. Only one amplifier or server in an Autonomic Audio System requires storage—content is automatically shared across the entire networked system via eAudioCast.
This flexible architecture eliminates the need for redundant storage on every device, reducing cost and simplifying system design while providing fast, reliable local playback of your media collection.
Specs
Specifications
| AU-MA6 | AU-MA61TB |
|---|---|
10KΩ |
10KΩ |
180W/channel |
180W/channel |
120W/channel |
120W/channel |
350W |
350W |
Class G/H |
Class G/H |
0.02%, UL Rated 1/8th Power, 4 Ohm |
0.02%, UL Rated 1/8th Power, 4 Ohm |
270W @ 1/8 Power, All Channels Driven, 4 ohms |
270W @ 1/8 Power, All Channels Driven, 4 ohms |
12 |
12 |
Phoenix |
Phoenix |
Fanless |
Fanless |
20Hz-20kHz |
20Hz-20kHz |
10V-240V IEC 60320-1C13/C14 power cord (included) |
10V-240V IEC 60320-1C13/C14 power cord (included) |
ETL, FCC, CE, UKCA, ROHS, WEEE |
ETL, FCC, CE, UKCA, ROHS, WEEE |
100dB |
100dB |
Yes |
Yes |
10% to 90% RH (non-condensing) |
10% to 90% RH (non-condensing) |
32°F to 104°F (0°C to 40°C) |
32°F to 104°F (0°C to 40°C) |
17.9 lbs (8.1 kg) |
17.9 lbs (8.1 kg) |
100dB (IHA-A Rated, 0.75Vrms Input) |
100dB (IHA-A Rated, 0.75Vrms Input) |
17.2” (437mm) x 3.88” (99mm) x 14.0” (254mm) |
17.2” (437mm) x 3.88” (99mm) x 14.0” (254mm) |
AirPlay 2 On Every Zone |
AirPlay 2 On Every Zone |
4x Analog RCA, 2x SPDIF Digital Coax, 2x TOSLINK Optical |
4x Analog RCA, 2x SPDIF Digital Coax, 2x TOSLINK Optical |
2x Pre-Amp Outputs: 2x Analog RCA, 2x SPDIF Digital Coax, 2x TOSLINK Optical |
2x Pre-Amp Outputs: 2x Analog RCA, 2x SPDIF Digital Coax, 2x TOSLINK Optical |
3 |
3 |
Impedance Input |
Power Output @ 4 ohm |
Power Output @ 8 ohm |
Power Output Bridged @ 8 ohm |
Topology |
Total Harmonic Distortion (THD) |
Power Consumption |
Channels |
Connector Type |
Fan Description |
Frequency Response |
Power Connection Type |
Certifications |
Dynamic Range |
LED Indicators |
Operating Humidity |
Operating Temperature |
Weight |
Signal to Noise Ratio |
Dimensions (W x H x D) |
Streaming |
Inputs |
Outputs |
Streams |
Support
Support Documents
Control Protocols and Drivers
Third-Party Partner Warranty
Autonomic products carry a manufacturer’s warranty from Autonomic. We want to make our Third-Party Partner program as easy as possible. That’s why we can assist in processing all third-party product warranty claims directly.
Autonomic offers a 2-Year Limited Warranty on its products. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products which have been abused, modified or disassembled. All implied warranties with respect to Products or parts sold by Supplier to Distributor, including but not limited to implied warranties of merchantability and fitness for a particular purpose, hereby are excluded, except to the extent that such disclaimers are held to be legally invalid. Products to be repaired under this warranty must be returned to Autonomic or a designated service center with prior notification and an assigned return authorization number (RA). End-users should contact an authorized dealer who can work with us to obtain RA number in order to submit any warranty claim.
