The Denon AVR-S540BT 5.2 channel AV Receiver with 70W per channel features Dolby Vision™, HDR, HLG and 4K Ultra HD video pass-thru with 5 HDMI inputs / 1 output. Stream your favorite music tracks wirelessly via Bluetooth.
Denon S540 AV Receiver | 5.2 Channel x 70W
The Denon AVR-S540BT 5.2 channel AV Receiver with 70W per channel features Dolby Vision™, HDR, HLG and 4K Ultra HD video pass-thru with 5 HDMI inputs / 1 output. Stream your favorite music tracks wirelessly via Bluetooth.

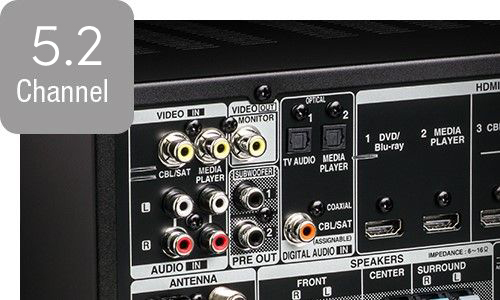

High-Performance Discrete 5.2-Channel Amplifier
Featuring discrete power output devices on all channels, the AVR-S540BT delivers a maximum of 140 watts per channel. It’s equipped with low impedance drive capability for operational stability within a wide range of speakers.
Advanced HDMI Video Section
The advanced HDMI video section of the AVR-S540BT lets your customers enjoy their favorite movies and shows with the best picture quality available. All five HDMI inputs support 4:4:4 Pure Color subsampling, HDR, BT.2020 pass-through, Dolby Vision compatibility and HLG (Hybrid Log-Gamma); full 4K Ultra HD with 60Hz passthrough and HDCP 2.2 processing is available on three HDMI ports to support copy-protected content.

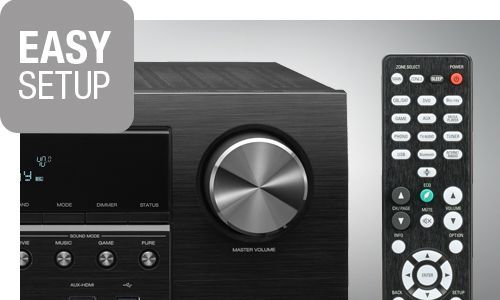

Easy Setup Experience
The included AVR-S540BT Quick Start Guide provides simple, clear setup instructions. Once you connect the TV to the AVR-S540BT via HDMI, the exclusive Denon Setup Assistant appears on the TV screen to walk you through setup, step by step. A row of color-coded speaker connections is laid out horizontally, making organizing and connecting speaker wires simple.

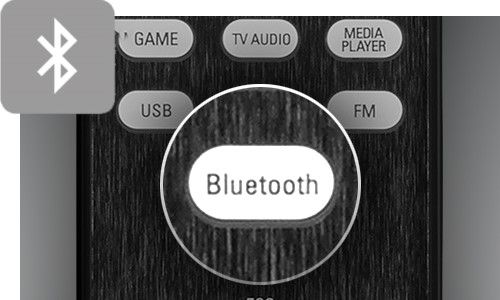

Bluetooth Built-in
Your customer’s favorite tracks at their fingertips. Stream music from a computer or a smart device with the AVR-S540BT and built-in Bluetooth. It can remember up to eight paired Bluetooth devices, so family and friends can share their music and enjoy the audio quality of the AVR-S540BT. To stream via Bluetooth, simply select the Denon AVR-S540BT from the Bluetooth menu on the smart device.
Specs
Specifications
| DEN-AVR-S540 |
|---|
Gloss: White (WH), Light Almond (LA), Black (BL) Matte: Snow White (SW), Biscuit (BI), Taupe (TP), Light Gray (LG), Stone Gray (SG), Aluminum (AU), Coffee (CF), Midnight Black (MB) Metal: Antique Brass (BS), Antique Bronze (BZ), Ash Gray |
5.2-Channel |
4K/60 Hz, HDR, Dolby Vision compatibility and Hybrid Log-Gamma (HLG)
|
DTS HD Master, Dolby TrueHD, Multichannel Stereo
|
Stream via Bluetooth connection
|
Dolby Vision™, HDR, HLG and 4K Ultra HD video pass-thru
|
5 Inputs, 1 Output
|
140W (6 ohm, 1 kHz, 10% 1ch Drive) 90W (6 ohm, 1 kHz, 0.7%, 2ch Drive) 70W (8 ohm, 20 Hz - 20 kHz, 0.08%, 2ch Drive) |
Analog Audio x 2 Digital Optical x2 Coaxial x 1 USB (front) x 1 |
No |
No |
Yes |
10 Hz - 100 kHz — +1, –3 dB (DIRECT mode)
|
310 W (Standby 0.1 W, CEC standby 0.5 W)
|
No |
No |
17.1” x 5.9” x 12.6”
|
16.8 lb |
Color |
Channels |
HDMI 4K Support |
Supported Audio Formats |
Streaming |
Supported Video Formats |
HDMI Connections |
Power Output @ 8 ohm |
Inputs |
RS232 Control |
Ethernet Ports |
Limited to CI Dealers |
Frequency Response |
Power Consumption |
IR Outputs |
IR Inputs |
Dimensions (W x H x D) |
Weight |
