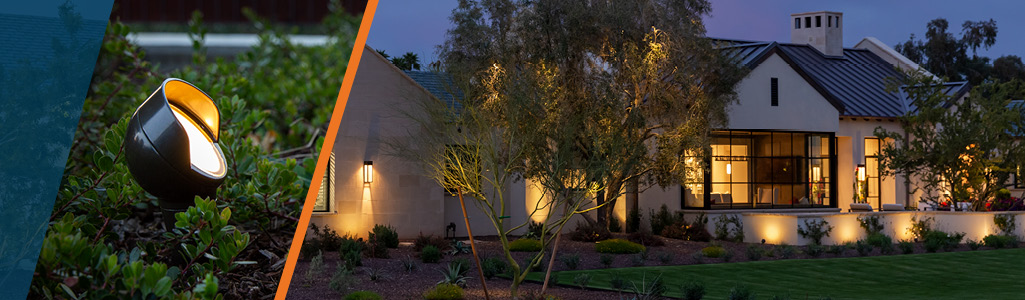

FX Luminaire® WS Wall Wash
Designed with rounded, minimalist features and durable die-cast aluminum, the versatile WS Wall Wash adds soft illumination to any lighting design.
FX Luminaire® WS Wall Wash
Designed with rounded, minimalist features and durable die-cast aluminum, the versatile WS Wall Wash adds soft illumination to any lighting design.


Designing with Up Lights
FX Luminaire up lights create rich depth and texture on walls, landscapes, and outdoor architectural elements. Illuminate adjacent trees and shrubs to add subtle lighting effects within a space. Select varying intensities to develop layers and draw attention to desired features.

MoistureBlock™ Technology
MoistureBlock Technology provides an additional layer of protection from outdoor elements by preventing moisture intrusion that could lead to corrosion and electrical failure.

Engineered to Withstand the Elements
All FX Luminaire products are manufactured to the highest ISO standards with a wide selection of premium materials.

ProAim® Technology
FX Luminaire ProAim Technology makes it easy to aim fixtures and make precise adjustments via its ratcheting stake and angle alignment. Once the angle is perfect, ProAim locks into place to prevent theft or tampering.
FX-WSLED35WFB |
---|
Aluminum |
85 |
Input: 10 to 15V |
2.4W used |
37 |
VA: 2.6 Color Rendering Index: 86 Center Beam Candlepower: 31 CCT: 2700K Beam Angle: 85° Dimming: Phase* |
Use Luxor Cube (LCM-LV) |
33,000 Hrs |
3.3" |
7.11" (6.3" visible above ground) |
3.5" |
Finish |
Lumens |
Voltage |
Power Requirements |
Efficacy |
Features |
Compatibility |
Minimum Rated Life (L70) |
Diameter |
Height |
Width |
