JVC offers ultimate image quality with ease of operation and impressive installation flexibility.
JVC DLA-RS4500K Laser D-ILA Native 4K 3,000 Lumen Projector
JVC offers ultimate image quality with ease of operation and impressive installation flexibility. The RS4500 is JVC’s flagship projector with a 3,000 lumen BLU-Escent laser phosphor light engine, Native 4K, our best lens, infinite Dynamic Contrast and 100% DCI color. D-ILA imaging devices offer the best black level and contrast with native 4K resolution. Auto tone mapping reads the metadata in most 4K HDR content, processing it so that the content is never too dark, or too bright. HDR picture mode is automatically selected for any HDR content (including Dolby Vision). It also features motorized focus, zoom, and shift, along with 10 installation modes allow easy integration with the most sophisticated home theaters. This includes ultra-wide screen designs, with a choice of lens memory or anamorphic scaling. A 2X zoom, along with 100% horizontal and 43% vertical lens shift ensure installation flexibility.
Superb Picture Quality
3,000 Lumens Brightness provides a stunning image, even with larger screen home theaters. Vibrant color is assured with 100% REC709 and approximately 100% of the DCI standard. The BT2020 color mode insures full compatibility with the newest 4K HDR content. D-ILA imaging chips offer the best black level and contrast in the industry. Our best lens insures the highest resolution on the screen.
BLU-Escent Laser Phosphor Light Engine
JVC’s proprietary “BLU-Escent” Laser Phosphor offers 3,000 lumen light output and 20,000 hour long life illumination. Increased brightness ensures compatibility with larger screen sizes over 200 inches, and improved HDR performance, bringing greater depth and dimensionality to home theater screens.
Native 4K D-ILA with Infinite Dynamic Contrast
JVC D-ILA imaging chips offer full 4096 x 2160 4K resolution, along with the best black level and highest native contrast in the industry. The combination of D-ILA imaging chips and dynamic laser dimming provides an infinite contrast ratio.

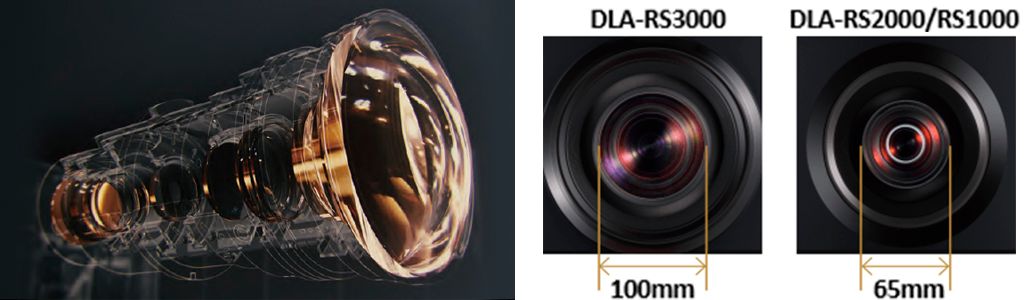

Premium 100mm Diameter All Glass Lens
JVC uses an all glass design with 18 elements in 16 groups, and a full aluminum lens barrel for the highest resolution image at every corner of the screen. The 2X Zoom along with 100% Vertical and 43% Horizontal shift provide exceptional installation flexibility. The 100mm diameter maximizes light output to the screen. Five special low dispersion lens accommodate the different refractive index of Red, Green and Blue to suppress chromatic aberration, color bleeding etc., faithfully reproducing 8K resolution. Fully motorized controls make it easy to adjust.
Auto Tone Mapping
The DLARS4500K can read the meta data on virtually all 4K HDR streaming content and many 4K HDR Blu-ray discs. Hollywood does not have a standard for 4K HDR brightness. Then, based upon that meta data, the RS4500 automatically adjusts the projector for the best possible HDR picture quality.
Auto Picture Select
Just press play! The DLARS4500 automatically switches to the HDR picture mode when an HDR signal is being viewed. And, it remembers your last setting for SDR content, and returns to that the next time you are watching an SDR signal.
100% DCI with Cinema Filter
A cinema filter can be engaged which expands DCI color coverage to 100% and BT2020 coverage to approximately 77%.
10 Installation Modes/Lens Memory
For use with an ultra-wide screen such as a 2.40:1 or Cinemascope design. This saves and recalls up to 10 different combinations of lens settings for different aspect ratios, including focus, zoom and lens shift, as well as pixel alignment and screen masking.
Full Speed Full Spec HDMI/Low Latency Mode
Both HDMI inputs support high bandwidth 18Gbps content such as 4K HDR, and are compliant with the HDCP 2.2 standard. And, this JVC projector is ideal for gaming applications with the low latency mode.
THX Certified, ISF Licensed
This JVC projector is ISF licensed for the ultimate in calibration capability, and feature specific ISF memories which can be unlocked by a certified ISF calibrator. It is also THX4K certified.
Support
Manuals and Guides
Sales Resources
Support Documents
Control Protocols and Drivers
Software and Firmware
Distributed Brand Warranty
We want to make our Third-Party Partner program as easy as possible. That’s why we process all claims directly, without any third party telephone tag. Specific warranty terms and details from the manufacturer are below.
This JVC projector comes with a 3-Year Parts & Labor Warranty.
