With 25x optical zoom and 1080p HV-TVI resolution, this indoor/outdoor analog PTZ provides excellent views of parking lots, residences, or any other large property that needs comprehensive surveillance coverage.
Luma Surveillance™ PTZ Analog Outdoor Camera
With 25x optical zoom and 1080p HV-TVI resolution, this indoor/outdoor analog PTZ provides excellent views of parking lots, residences, or any other large property that needs comprehensive surveillance coverage. IR capabilities over 400 feet let you identify objects in the dark, while an IP66 weather rating makes this PTZ ready to face the elements.
Improved Night Vision
Great daytime shots are nice, but Starlight improves nighttime performance – a critical time for capturing surveillance footage. Our cameras automatically adapt to changes in light. With enough ambient light, Starlight technology can provide a detailed color image, improving nighttime clarity.
HD Quality over Analog
At 2MP, this PTZ camera delivers high-resolution images in full 1080p. The PTZ analog cameras feature sharp 1080p resolution thanks to HD-TVI technology. These cameras support HD-TVI or traditional analog up to 960H – the choice is yours. Our 16:9 letterbox format is tailor-made for the A/V market so that its built-in resolution prevents picture distortion. Analog picture has never looked so good.

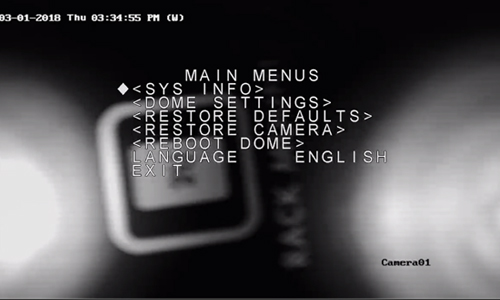

PTZ Control & OSD Settings Over HD-TVI
No more need to run RS-485 cables. Now you can control your PTZ over coax. Easily adjust video and OSD settings by logging in remotely to the DVR. Our recorders feature built-in camera control, thanks to HD-TVI technology.
Low Temperature with Heater
A built-in heater prevents condensation in warm environments or frost on the lens in icy conditions.

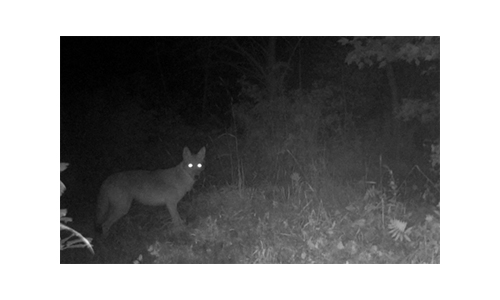

IR Over 400'
Luma 510-series PTZ cameras offer over 400 feet or up to 150 meters of IR, which eliminates over-exposure in dim settings, and evenly illuminates objects so they show up better on camera. Use this feature to explore a property or areas of interest.
Alarm In/Out
Alarm In lets cameras get notifications from another system, like a contact relay. Alarm Out lets a camera send notifications to another system, like a contact relay, that can be set up to turn lights on when motion is detected.
Specs
Specifications
| LUM-510-PTZ-A-WH |
|---|
White |
-5°~90° (Auto Flip ) |
Pan: 0 - 360°, Pan Manual Speed 0.1°-250°/s, Pan Preset Speed 300°/s Tilt Manual Speed: 0.1° - 150°, Tilt Preset Speed 200°/s |
Yes |
Yes |
Yes, 8 privacy masks programmable |
1000+ |
Yes, HIKVISION, Pelco-P, Pelco-D, self-adaptive |
HD-TVI and 960H |
Yes |
2 / 1 |
1920 × 1080 |
1/3" Progressive Scan CMOS |
25x Optical Zoom |
0.05Lux, 0 Lux with IR on |
49-2.2° (Wide-Tele) |
1-1/10,000 s |
850nm |
492 ft (150m) |
IR cut filter with auto switch |
Yes |
Auto/Manual |
Yes |
Digital WDR |
Yes |
3D-DNR |
24VAC Max., 20W (Heater On), Max. 12W (Heater Off) |
IP66 |
CE, FCC, UL |
-22 - 149° F |
19.6 lb |
12.99" H x 7.28" D Mount coupling thread size: G1-1/2 |
Color |
Tilt |
Adjustments |
Auto Iris |
OSD |
Privacy Mask |
Resolution (TVLs) |
RS485 |
Simultaneous Connections |
Smart IR |
Alarm Contact Inputs/Outputs |
Maximum Record Resolution |
Image Sensor |
Lens |
Minimum Illumination |
Est. Horizontal Viewing Angle |
Shutter Speed |
IR Wavelength |
IR Range |
Day/Night IR Cut Filter |
Day & Night Adjustable |
Auto Gain Control |
Backlight Compensation |
WDR |
Starlight Enabled |
DNR |
Power Consumption |
Weather Rating |
Certifications |
Operating Temperature |
Weight |
Dimensions (W x H x D) |
