Get ready to find your go-to speakers. The Episode® 350 Series Speakers offer a simple solution for a variety of multi-room audio applications. They also feature dual Mylar tweeters to create a stereo effect.
Episode® 350 Series In-Ceiling Dual Voice Coil Speakers
Get ready to find your go-to speakers. The Episode® 350 Series Speakers offer a simple solution for a variety of multi-room audio applications. They also feature dual Mylar tweeters to create a stereo effect.
Polypropylene Woofer
Made of high-grade quality polypropylene, the vacuum-formed cone delivers outstanding performance, while the forward-set woofer increases audio dispersion.
Dual Mylar Tweeters
Stereo signals are reproduced with good separation thanks to the orientation of the twin tweeter array.
Tweeter Bridge Handle
Speaker tweeter bridge doubles as a handle for quick, easy installs.
One-Piece Thin-Bezel Design
Magnetic, one-step paintable grille keeps the speaker out of sight for a smooth, minimalistic finish.

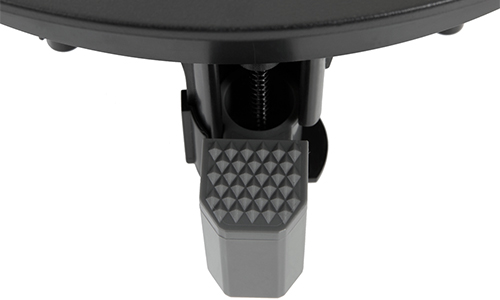

Installation Ease
Three dog toggles provide quicker installation, while avoiding in-ceiling obstacles. Plus, our oversized dog toggles increase stability during installation.
Specs
Specifications
| ES-350T-ICDVC-6 | ES-350T-ICDVC-8 |
|---|---|
Gold plated push terminals |
Gold plated push terminals |
55 Hz - 20 kHz |
50 Hz - 20 kHz |
8.3" |
9.7" |
Finished Dimension w/ Grill: 9.6" |
Finished Dimension w/ Grill: 11" |
Mounting Depth: 4.1" |
Mounting Depth: 4.1" |
3.3 lb |
6.3 lb |
5.2 kHz |
3.5 kHz |
8 ohm |
8 ohm |
100 Watts |
120 Watts |
86 dB |
87 dB |
½" Mylar Dome Tweeters |
1" Mylar Dome Tweeters |
6 ½" Vacuum-formed Polypropylene Cone Woofer |
8" Vacuum-formed Polypropylene Cone Woofer |
Limited Lifetime Warranty |
Limited Lifetime Warranty |
Connector Type |
Frequency Response |
Cutout Diameter |
Dimensions (W x H x D) |
Mounting |
Weight |
Crossover Frequency |
Nominal Impedance |
Power Peak |
Sensitivity |
Tweeter |
Woofer |
Warranty |
