Triad Cinema Reference InWall Surround Speaker
The Triad Cinema Reference Series InWall Surround Speakers represent the pinnacle of in-wall loudspeaker engineering, purpose-built for high-output home theaters and reference-grade media rooms. Every element of the system, from transducer materials to motor topology, has been redesigned to deliver uncompromised clarity, dynamics, and tonal accuracy. Installation is simplified with a built-in, patent-pending spring dog system that securely holds the speaker. Elevate every home theater experience with Triad’s ultimate combination of power, elegance, and reliability.
Important Note - Triad build-to-order products ship, on average, within 15 days from order receipt. Build-to-order products are not available for local pick-up.
‡Custom Color - By ordering this product with custom specifications, you acknowledge that the sale is final and the product may not be returned or exchanged.
No-Compromise Crossover Design
The Cinema Reference crossover is engineered without compromise to deliver an easy-to-drive speaker with flat response and wide, uniform dispersion. Premium film capacitors, air-core inductors, and high-power resistors are chosen purely for performance, not cost. Losses are minimized before the signal reaches the drivers, phase alignment is tightly controlled, and distortion is reduced even at reference levels. The result is excellent imaging, a spacious soundstage, and tight, fast bass from low group delay in the sealed design.
Breakthrough Driver Technology
Every transducer features our advanced triple-matrix composite diaphragm made of nano-woven carbon fiber, graphene, and non-woven Kevlar fiber, providing a strong yet lightweight material with ultra-low distortion, allowing listeners to hear every detail with stunning precision, even at reference-level volumes.
Precision Motor Architecture
The integrated shorting-ring motor system stabilizes inductance, reducing harmonic and intermodulation distortion, giving cleaner bass, more accurate midrange sound, and fatigue-free listening at any level.
Flexible and Uncomplicated Installation Method

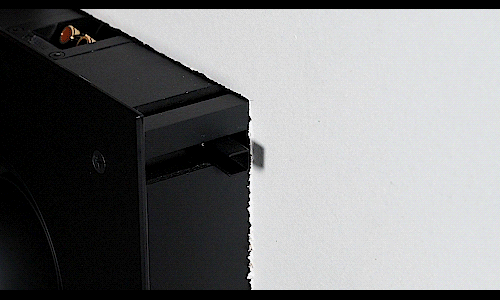

Make your installation easier and safer with the built-in, patent-pending spring dog system, which holds the speaker in a wall or a ceiling, freeing up your hands to screw in and install the speaker without worry. The spring dog can also be flipped to 90 degrees to help avoid a stud or joist, allowing you to secure the speaker regardless of orientation.
Thermally Optimized for High Power
The metallic cone couplers and die-cast aluminum woofer baskets act as heat sinks, preventing compression during demanding scenes to provide consistent performance and dynamic impact.
Unified Acoustic Voicing
The identical cone materials in all transducers deliver seamless timbre matching, allowing for a natural, cohesive imaging, and smooth off-axis response for a true cinematic experience.

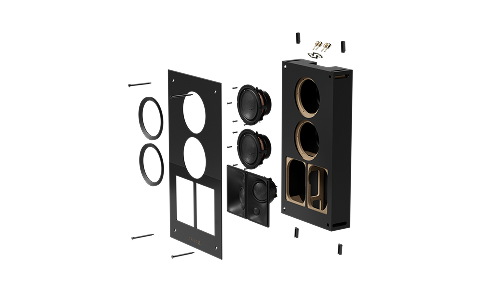

Resonance-Free Solid MDF Cabinet
Fully engineered, premium MDF enclosures with internal bracing components are rigid and precision-crafted to break up acoustic standing waves, delivering clearer, more accurate sound. Triad speakers are built to order on-site in our Portland, OR, manufacturing facility by a team of passionate craftspeople and audio experts for custom, high-quality construction.
Match Any Luxury Look
Deliver astonishing audio without compromising aesthetics. With custom grille colors, these speakers seamlessly match the surrounding décor, offering the perfect look and sound to match your install’s needs. Additionally, when time is critical and customization isn't required, the RTS (ready-to-ship) models are available to dramatically reduce lead times, so you can move your projects forward faster.
Specs
Specifications
| TS-CREF-IWSURR |
|---|
73Hz-20KHz |
Dual Binding Post |
27 1/4" x 14 3/4" x 5 15/16" |
Each |
33.6 lbs |
326Hz, 1900Hz |
400 W |
225 W |
92dB |
36 mm |
4 Ω |
Kevlar reinforced non-woven carbon fiber |
0 |
2 x 1" Tweeter 2 x 3" Midrange |
2 x 6" |
3 15/16" |
Frequency Response |
Connectors |
Dimensions (W x H x D) |
Sold As |
Weight |
Crossover Frequency |
Power Peak |
Power RMS |
Sensitivity |
Voice Coil |
Tweeter Type |
Woofer Type |
Nominal Impedance |
Tweeter |
Woofer |
Mounting Depth |
Support
Manuals and Guides
Triad Limited Warranty Term
This Limited Warranty runs for a period of ten (10) years for indoor speakers, three (3) years for Triad powered subwoofers, subwoofer amplifiers and outdoor speakers, five (5) years for all Triad PAMP V2 Amplifiers and two (2) years for all other Triad electronics, provided that Triad Distributed Audio Series 1, Series 2, or Series 3 branded speakers will have a limited lifetime warranty, except for the grill, which is warranted for five (5) years. The terms of our limited warranties can be found here.
