Episode Business Music Digital Signal Processor

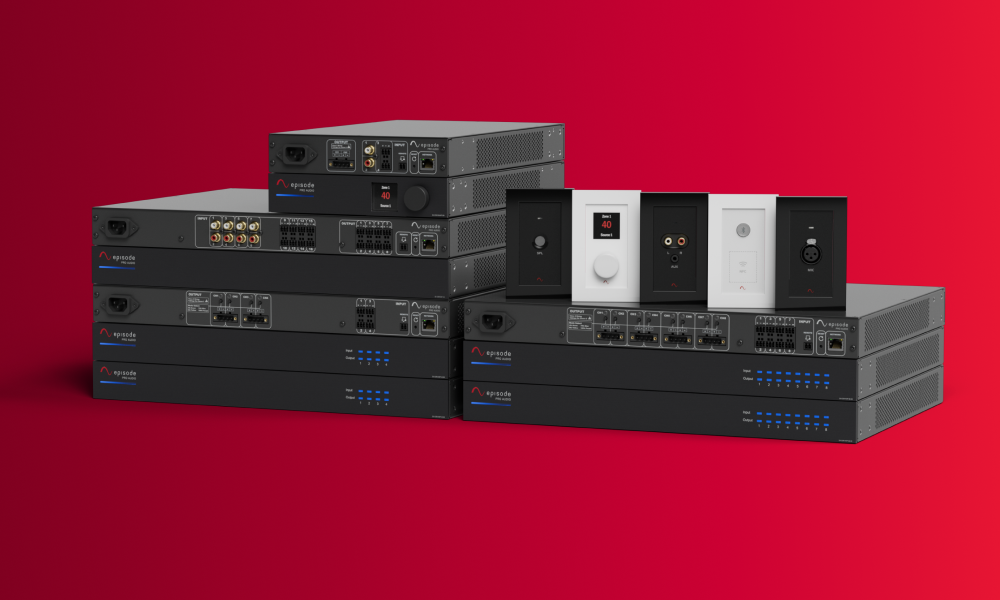

Episode Business Music Solution (EBMS) brings the Episode sound trusted by professionals worldwide to even more projects, with an extensive catalog of enterprise-level audio solutions for restaurants, gyms, retail spaces, and beyond. The Episode Business Music Digital Signal Processor was purpose-built for commercial audio and paging applications, featuring high-powered audio processing and matrixing. At the same time, streamlining your installs by being MoIP and OvrC enabled.
Variety of Source Types (Mic, Line, Balanced, Unbalanced)

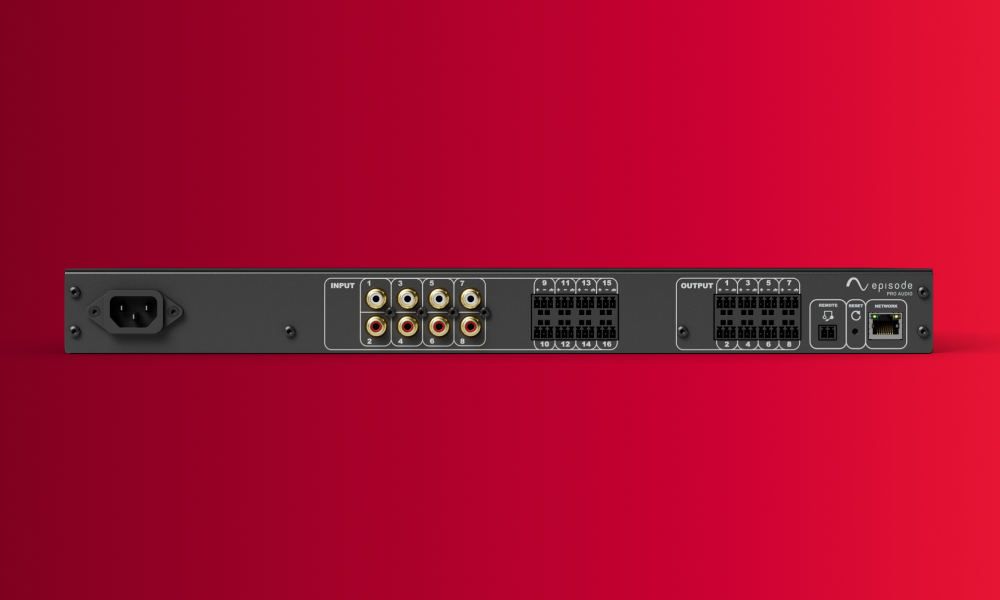

Connect up to 16 sources to 8 zones, including microphones and unbalanced, balanced, or MoIP sources, for any application, from hospitality, bars, restaurants, corporate spaces, and everything in between.
High-Powered DSP For Any Size Install

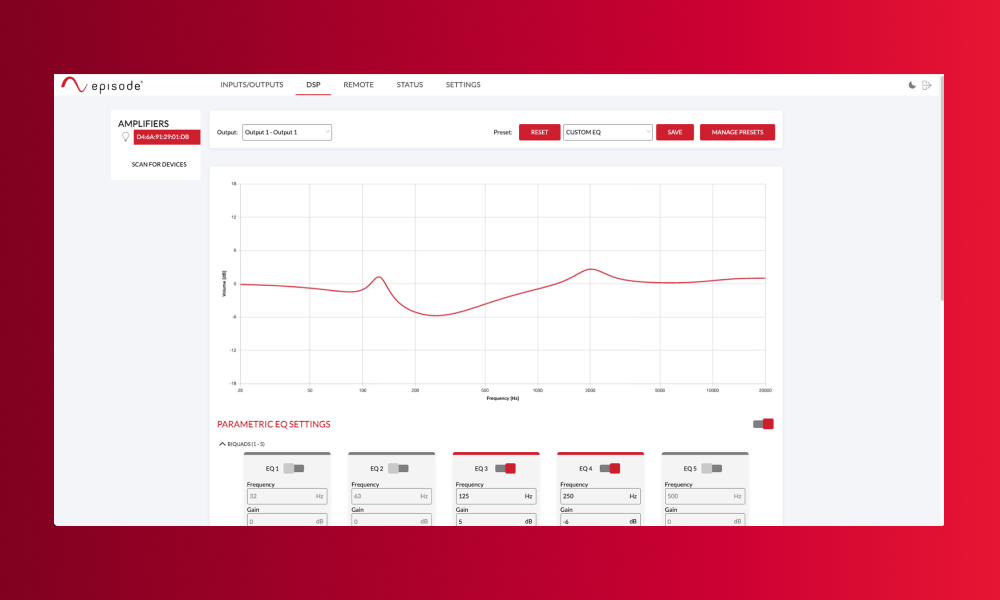

Tailor the audio system to match what’s needed for the space and application with tools to optimize gain structure, frequency response, and dynamic behavior. Input and output EQ, along with microphone processing features such as ducking, compression, gating, and de-essing, give you precise control over system tuning.
MoIP-Enabled

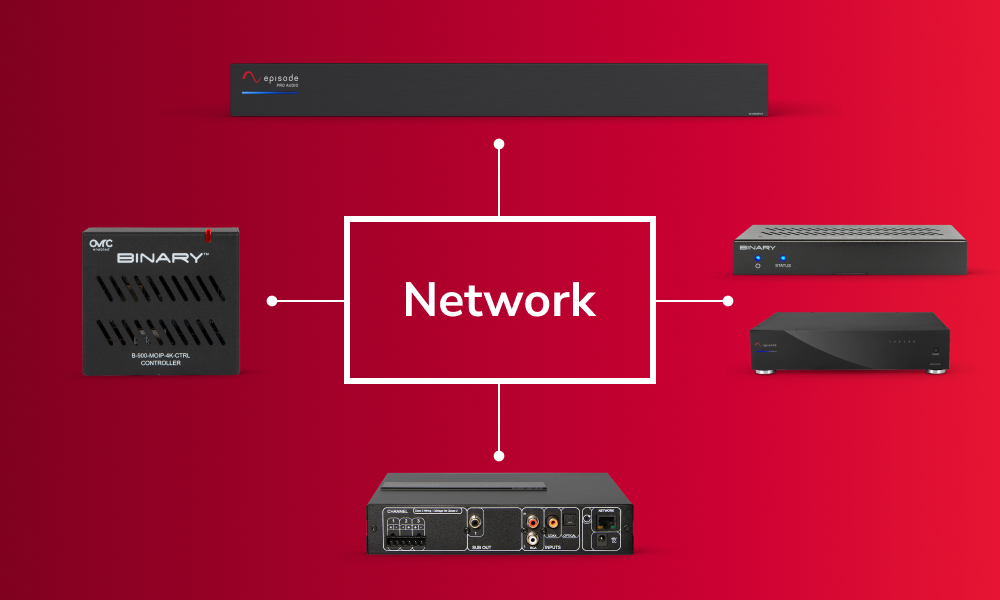

This DSP is MoIP-enabled, offering exceptional flexibility and scalability, allowing it to receive MoIP audio sources and transmit local sources onto the MoIP network.
Priority Inputs and Ducking

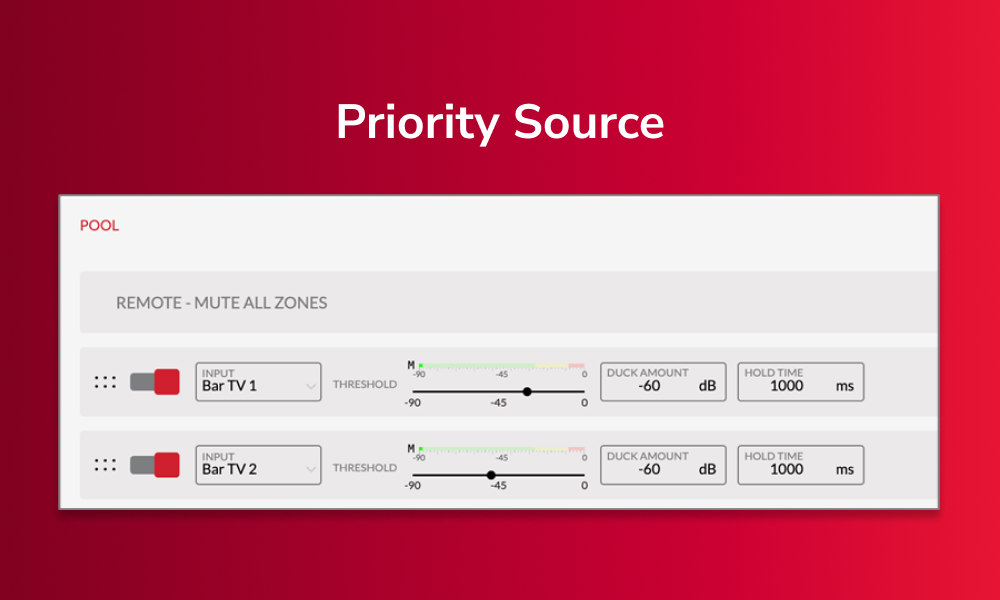

Set priority inputs with configurable ducking to automatically playback any source when it senses a signal — great for paging microphones, message playback, or emergency communications.
Remote Input for Automatic Action Triggering

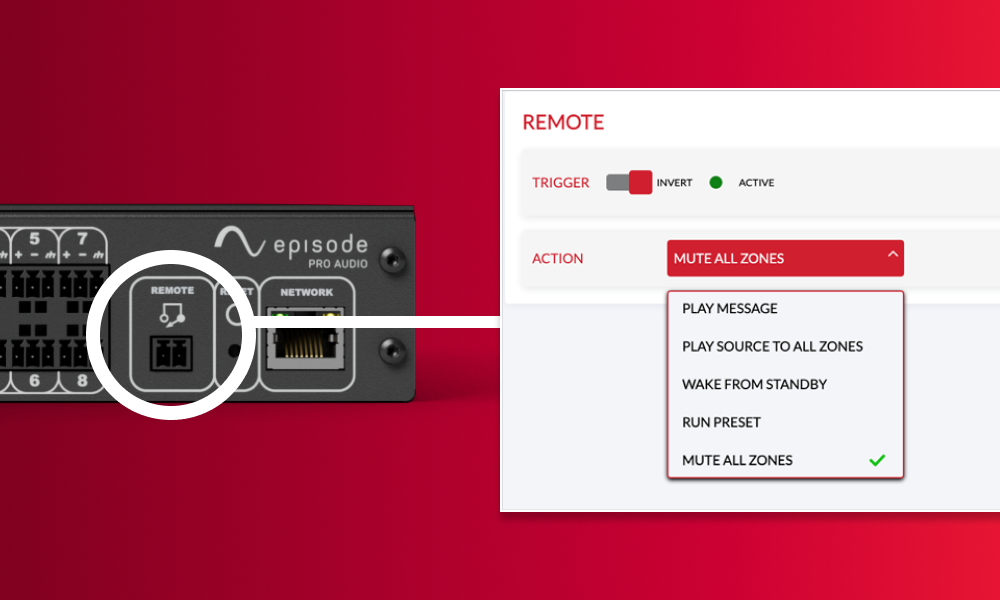

The 2-pin contact closure can be configured to playback built-in or user-created audio messages, trigger a scene preset, mute all zones, play a source to any zone, and more.
User Controllable with Intuitive Wall Plate

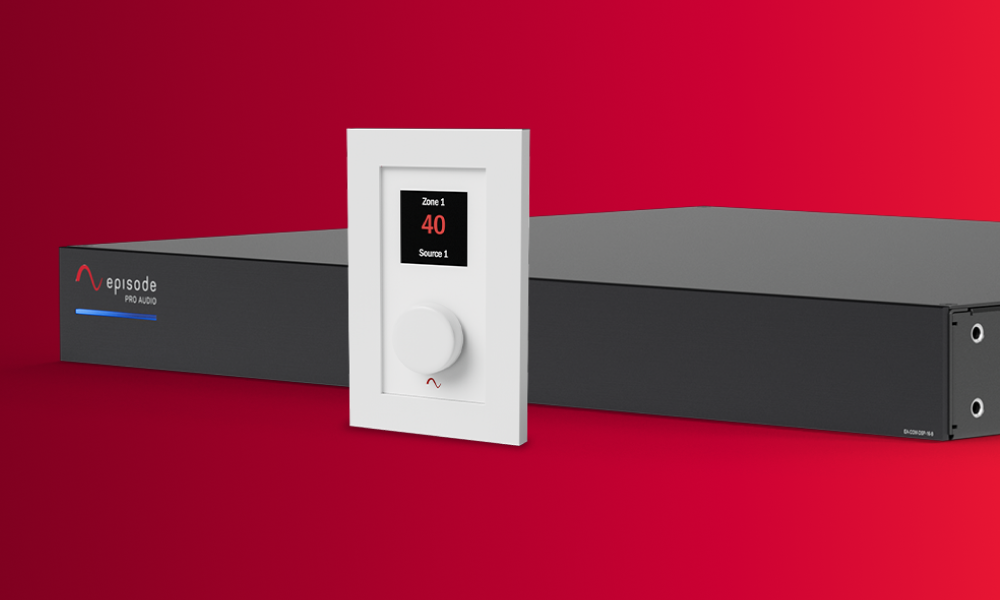

The fully configurable zone controller wall plate enables source and zone control at any level throughout the space from a single controller. Multiple controllers can be connected to the network to control any combination of DSPs. For more advanced control of lighting, video, surveillance, and other systems, the EBMS system integrates seamlessly with commercial control systems.
Use Any Combination of Wall Plate Accessories for Maximum Flexibility
Audio input devices enable the routing of any audio signal type through the network to any DSP in the space, eliminating the need to home run to the DSP. Additionally, the Sound Pressure Level Sensor can transmit ambient noise data back to the DSP, facilitating automatic volume control.
OvrC-Enabled
Utilize OvrC to simplify the complexity of setting up an audio system, allowing you to remotely monitor, configure, and troubleshoot without rolling a truck. Set up and tweak zones for the entire project, adjust the volume up or down, change EQ settings for zones, switch sources, and more, all in one easy-to-use platform.
Specs
Specifications
| EA-COM-DSP-16-8 | EA-COM-DSP-8-4 |
|---|---|
0.8% THD+N @ 92Vrms, max load 1.8-2.2% THD+N @ 92Vrms, open load |
0.8% THD+N @ 92Vrms, max load 1.8-2.2% THD+N @ 92Vrms, open load |
16 |
8 |
8 |
4 |
20 Bands |
20 Bands |
115V / 230V Auto Switching |
115V / 230V Auto Switching |
20Hz to 20kHz, ± 2dB |
20Hz to 20kHz, ± 2dB |
-55db Minimum @ full audio range |
-55db Minimum @ full audio range |
Input signal = +20dBu, dynamic>98dB Input signal = -7.8dBu, dynamic>82dB |
Input signal = +20dBu, dynamic>98dB Input signal = -7.8dBu, dynamic>82dB |
NEMA 5/15P 3 prong to IEC 60320 C13, 1.8m length |
NEMA 5/15P 3 prong to IEC 60320 C13, 1.8m length |
Fully Matrixed + Multisource Mixing |
Fully Matrixed + Multisource Mixing |
19" x 1.75" x 14" |
19" x 1.75" x 14" |
8lbs |
7 lbs |
'"+14 ~ +122°F; -10 ~ +50°C (Indoor)" |
'"+14 ~ +122°F; -10 ~ +50°C (Indoor)" |
'20-90% RH (no condensation) |
'20-90% RH (no condensation) |
'CE, FCC CFR Part 15-Subpart B-Class B, RoHS2 Directive 2011/65/EU CE-marking, UL |
'CE, FCC CFR Part 15-Subpart B-Class B, RoHS2 Directive 2011/65/EU CE-marking, UL |
EC 61000-4-2 Level 2 Contact, Level 3 Air-Gap |
EC 61000-4-2 Level 2 Contact, Level 3 Air-Gap |
Total Harmonic Distortion (THD) |
Inputs |
Outputs |
Parametric EQ |
Power Supply |
Frequency Response |
Audio Crosstalk |
Dynamic Range |
Power Connection Type |
Routing |
Dimensions (W x H x D) |
Weight |
Operating Temperature |
Operating Humidity |
Certifications |
ESD Protection |
Support
5-Year Limited Warranty
This Episode® Amplifier product has a 5-Year Limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products which have been abused, modified or disassembled. Products to be repaired under this warranty must be returned to Snap One or a designated service center with prior notification and an assigned return authorization number (RA).
