Access Networks A670 Unleashed Wi-Fi 7 Indoor Access Point
ANU-A670-US00
Click to enlarge
Description
Specs
Support
Description
Description
Access Networks A670 Unleashed Wi-Fi 7 Indoor Access Point
Access Networks Unleashed Wi-Fi 7 Access Points provide the simplest way to offer your clients a high-performance, enterprise-grade network solution with the added benefits that Wi-Fi 7 brings. Unleashed access points feature a built-in controller, which means they’re simple to set up, easy to manage, and a great way to add a more economical yet robust solution to your network solution portfolio for densely connected homes and small-to-medium commercial projects.
The A670 is a mid-range Wi-Fi 7, tri-band concurrent indoor Unleashed Access Point that supports six spatial streams and a combined data rate of 9.34 Gbps while efficiently managing up to 768 client connections. With Wi-Fi 7 technology such as Multi-Link-Operation (MLO), Preamble Puncturing, 4K QAM, and 320MHz channels, the A670 delivers industry-leading connectivity with a 5 Gbps Ethernet port that eliminates backhaul bottleneck for full functionality performance.
IMPORTANT NOTE: This access point requires an allocation of 60W PoE++ (60W) power each. Please calculate the deployment accordingly and ensure that the PoE++ switch provides enough power for all APs in the deployment with a 20% power overhead. CAT6A cabling is recommended for proper operation.
Wi-Fi 7 Certified
Wi-Fi 7 Unleashed Access Points from Access Networks enhance speed and throughput, reduce latency, and increase reliability to improve the network experience for every device. By advancing performance for all connections, Wi-Fi 7 technology better supports the growing demand for higher-performing, dependable Wi-Fi in dense residential deployments and commercial installations. The benefits of Wi-Fi 7 technology include Multi-Link Operation (MLO) for traffic balancing, 320 MHz channels that provide twice the throughput of Wi-Fi 6, 4K QAM for 20% higher transmission rates compared to Wi-Fi 6, and more to provide exceptional network experiences for even the most challenging connected environment.

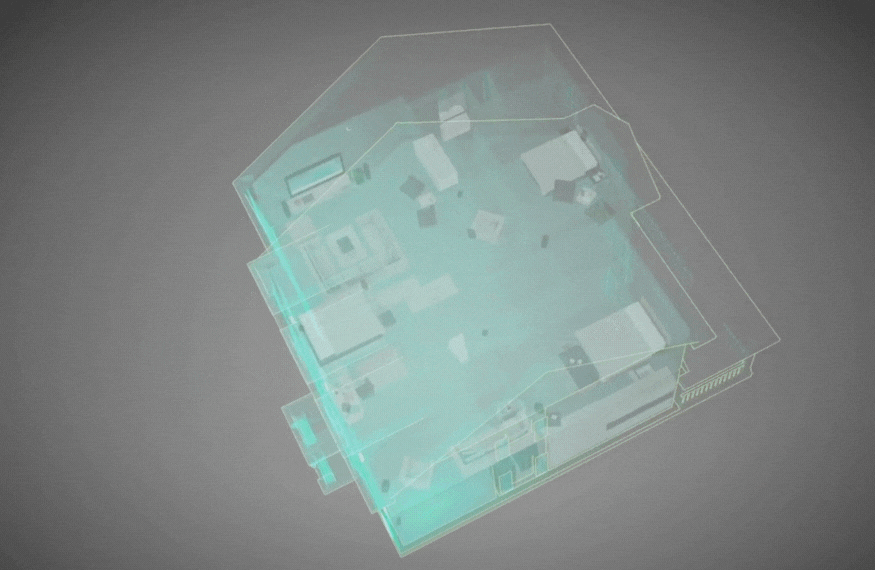

BeamFlex+ Adaptive Antenna Technology
BeamFlex+ adaptive antennas allow the A670 to dynamically choose from up to 4,000+ possible combinations of antenna patterns in real time to establish the best possible connection with every device. This leads to better Wi-Fi coverage and reduced RF interference. Simply put, focused Wi-Fi energy leads to better and further signal reception. BeamFlex+ aims Wi-Fi energy at each specific device when and where it’s needed rather than spreading the signal in all directions as a standard access point would. As a result, interference from other Wi-Fi devices decreases, and signal strength increases for more reliable, stable, and faster connectivity.
BeamFlex+ is a technology where Wi-Fi signals are broadcast simultaneously from the access point on a horizontal and vertical axis. The client device will use diversity to receive both signals. Why does this matter? Smartphones, for example, sometimes sit horizontally on a table, and other times, they’re held upright. No matter the device's positioning, BeamFlex+ uses different antenna orientations to ensure the clearest, strongest Wi-Fi signal path.
5 GbE Eliminates Bottleneck
Optimized multi-gigabit Wi-Fi performance delivered using the built-in 1/2.5/5GbE port to connect to multi-gigabit switches.
Tri-Band & Dual Band Functionality
The A670 has the unique ability to deliver 6 spatial streams in two different modes: 2x2:2 in 2.4GHz, 5GHz, and 6GHz in tri-band mode, or 2x2:2 in 2.4GHz and 4x4:4 in 5GHz in dual-band mode.
Built-In Wireless Controller
Using the built-in enterprise-grade WLAN Controller, the access point helps optimizes the wireless environment for maximum performance and connectivity.
High Client Density and Performance
Provides exceptional end-user experience within densely connected homes, small businesses, multi-dwelling units, and hospitality applications.
Support & Warranty
This Access Networks product includes limited lifetime warranty and support from our team of certified network engineers.
Complete Wi-Fi Management
With Access Networks and OvrC, your customers can easily manage their home’s wireless devices. Easy-to-setup user profiles allow parents to schedule and restrict Wi-Fi access as they see fit using the OvrC Connect app.
Ease of Install
Access Networks Unleashed APs offer a high-performance, simple-to-setup, and easy-to-manage solution. They’re a great way to introduce enterprise-grade quality hardware to your clients. Set up your entire Wi-Fi network in a few simple steps from a mobile device or browser through an intuitive, easy-to-understand user interface. Simply install and configure the primary access point and let Unleashed do the rest.
Guest Wi-Fi Services
Your customers can offer guests secure, high-performance Wi-Fi access while isolating the additional traffic away from their primary network. Wi-Fi Guest Passes can be authenticated using a social media account or a QR code, eliminating the hassle of sharing Wi-Fi passwords. Customers can even personalize their guest Wi-Fi portal with their company logo, brand, and messages for commercial environments.
Specs
Specifications
| ANU-A670-US00 |
|---|
22cm (L), 22cm (W), 4.9cm (H) (8.66in (L) x 8.66in (W) x 1.93in (H)) |
2.25 lb |
0ºC (32ºF) to 50ºC (122ºF) |
802.3at: 25.5W, 802.3bt5 PoH, uPoE: 35W, DC Power: 35W |
Wi-Fi CERTIFIED™ a, b, g, n, ac, ax, be (Wi-Fi 6, Wi-Fi 7) Passpoint®, Vantage |
Up to 95% non-condensing |
One 100M/1/2.5/5GbE (PoE) port and one 10M/ 100M/1GbE port. Power over Ethernet (802.3af/at/bt) with Category 5e (or better) cable LLDP support |
Dimensions (W x H x D) |
Weight |
Operating Temperature |
Power Consumption |
Certifications |
Operating Humidity |
Ethernet |
Support
Manuals and Guides
Limited Lifetime Warranty
This Access Networks product includes a limited lifetime warranty. This warranty is described in greater detail here: Limited Hardware Warranty.
