Acurus MUSE 16-channel Rack-Mounted Processor

- By ordering this product with custom specifications you acknowledge that the sale is final and the product may not be returned or exchanged.

- Send us a sample of the wood that you would like the speaker to match. Your order will be placed on hold for up to 14 days as we wait for your wood sample. Samples not received after 14 days will cause your order to be canceled. Please send your physical sample along with a copy of your Triad Order attached to the address listed below.

Triad Speakers
Sales - RUSH - Paint Sample
15835 NE Cameron Blvd.
Portland, OR 97230
- Your order will be placed on hold for up to 14 days as we wait for your color sample. Samples not received after 14 days will cause your order to be canceled. Your sample must be of a solid color. Wood, multi colored wallpaper/fabrics and faux finishes CANNOT be sent as samples for custom paint matching. Please send your physical color sample along with a copy of your Triad Order attached to the address listed below.

Triad Speakers
Sales - RUSH - Paint Sample
15835 NE Cameron Blvd.
Portland, OR 97230

Add to cart
Description
Specs
Description
Description

The MUSE 16-channel immersive media room processor boasts 112 surround sound speaker layouts available to choose from, including 52 Dolby Atmos and DTS:X immersive speaker layouts -- up to an amazing 15.1 immersive audio configuration. Setting up any of these layouts is a snap with the intuitive UI available both on the front panel and via the simple-to-use mobile app. System integration and control is simplified through many 3rd party control solutions.

Acurus MUSE 16-channel Rack-Mounted Processor

The MUSE 16-channel immersive media room processor boasts 112 surround sound speaker layouts available to choose from, including 52 Dolby Atmos and DTS:X immersive speaker layouts -- up to an amazing 15.1 immersive audio configuration. Setting up any of these layouts is a snap with the intuitive UI available both on the front panel and via the simple-to-use mobile app. System integration and control is simplified through many 3rd party control solutions.

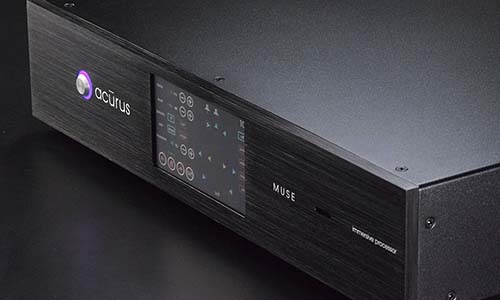

Extremely compact, the MUSE stands just 2RU tall but delivers more features and audio purity in its sleek frame than any other media room solution to date. Acurus' own room correction technology, ASPEQT, is supported in MUSE, so any media room or private cinema is primed for optimization via ASPEQT to unleash the breathtaking Acurus sound.

To make the very best audio connections, Acurus has two custom-made cables included with this product. The DB9 to XLR 4-channel output adapter cable, called the TETRA, is a must if the maximum channel count is desired for the ACT 4 or MUSE immersive processors. For single output channels, the Acurus MONO XLR cable is the best choice.

The Acurus MUSE supports both Dolby Atmos and DTS immersive audio formats

Dolby Vision Support

Dolby Vision is Dolby’s innovative image technology which produces ultravivid picture with darker darks and brighter brights.

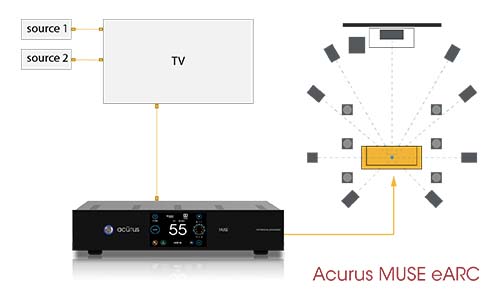

HDMI 2.1 eARC support

Ease of connection between the Acurus MUSE and eARC supported displays.

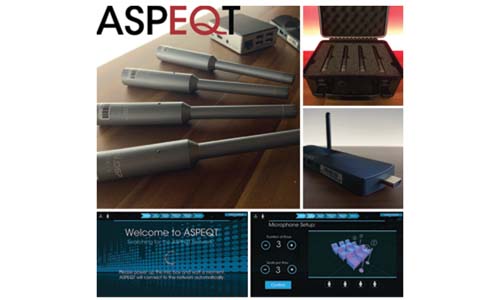

Acurus ASPEQT Automatic Calibration Support

The Acurus MUSE supports the Acurus ASPEQT room calibration system for fine-tuning the audio response of any media room or private cinema installation. Fast and easy to use, the ASPEQT system will add additional clarity and nuance to your listening experience.

100% Original Audio Gear

The Acurus MUSE is 100% engineered and manufactured in Indiana in the USA. Acurus builds high-performance, durable, easily upgradeable audio electronics with completely unique feature sets, exceptional industrial designs, and outstanding audio specifications.

Specs
Specifications
ACU-MUSER-16-BLK
Dolby Atmos native decoding: 15.1
DTS:X native decoding: 11.1
Post-Processing Modes: Dolby Surround Upmixer, Neural:X upmixer
Loudspeaker Adjust (I): delay, polarity, large/small, crossover
Loudspeaker Adjust (II): PEQ
Loudspeaker Adjust
20 - 20kHz ± 0.1dB

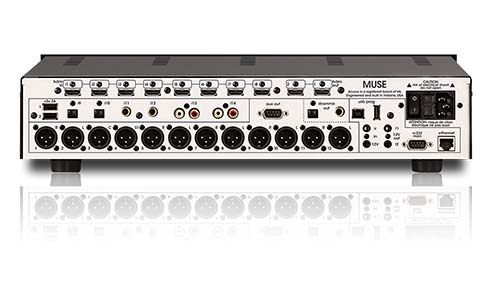

2 x gold-plated RCA L/R unbalanced, 2 x coax RCA, 2 x optical, 12 x balanced XLR + 4 x CAB-20 bal. XLR, 8 x HDMI 2.0b (2.1 ready), 4k pass-thru
XLR1 x coax RCA, 1 x optical, 1 x HDMI 2.0b (2.1 ready), 1x HDMI 2.0b
rack ear kit (ARM-4), owner’s manual, DB-9 to XLR x4 (CAB-20) cable ethernet and RS232 protocols, 2D CAD files, 3D CAD files, 3rd party control drivers
front-panel display: 5” LCD touch-panel
serial: 2 x DB9, 2-way control, 2 x USB programming ports
ethernet: 1 x ethernet, web interface and TCP/IP control
12V trigger and IR: 1 x 3.5mm IN, 2 x 3.5mm OUT, IR remote
charging port: 2 x USB
17” x 3.5" x 15"
23 lb

Supported Formats
Frequency Response
Inputs
Audio Output Connectors
Included Accessories
Control Features
Dimensions (W x H x D)
Weight

Distributed Brand Warranty

We want to make our Distributed Brand program as easy as possible. That’s why we process all claims directly, without any third party telephone tag. Specific warranty terms and details from the manufacturer are below.

The Acurus ACT 4 preamp processor carries a 5-year warranty.
