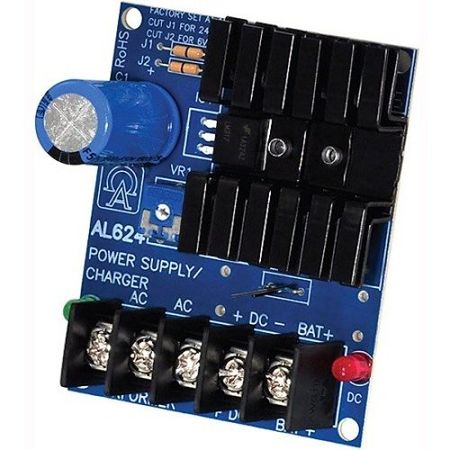

Altronix AL624 Linear Power Supply Charger, Single Class Output, 6/12/24VDC at 1.2A, 16 to 24VAC, Board
ALT-AX-AL624
Description
Support
Description
Description
Altronix AL624 power supply/charger converts a low voltage AC input into 6VDC, 12VDC or 24VDC output. This general purpose power supply has a wide range of applications for access control, security, and CCTV system accessories that require additional power.
Altronix AL624 Linear Power Supply Charger, Single Class Output, 6/12/24VDC at 1.2A, 16 to 24VAC, Board
Altronix AL624 power supply/charger converts a low voltage AC input into 6VDC, 12VDC or 24VDC output. This general purpose power supply has a wide range of applications for access control, security, and CCTV system accessories that require additional power.
- 16V AC to 24V AC, 20VA to 40VA
- Output: 6V DC or 12V DC 1.2A supply current or 24V DC 0.75A supply current
- Filtered and electronically regulated output
- Short circuit and thermal overload protection
- Built-in charger for sealed lead acid or gel type batteries
- Automatic switch over to stand-by battery when AC fails
- PTC battery protection
- AC input and DC output LED indicators
