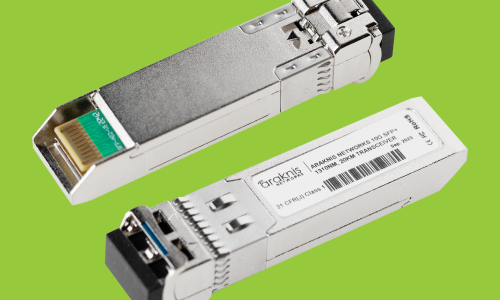

Araknis SFP+ Transceiver Module- 20km
This Araknis Networks® Accessory Small Form Plug Plus (SFP+) Transceiver Module is designed for use in projects that require high-speed data transfer over extremely long distances. It supports data transfer speeds of 10Gbps over a 20-kilometer range using 1310nm single-mode fiber optic cable with LC connectors. It is best suited for Araknis Network switches supporting SFP+ ports and up to 10Gbps data speed capabilities. This transceiver is a great addition to larger commercial projects where high-speed data transfer capabilities over long distances is necessary.
Best Used with Araknis Networks

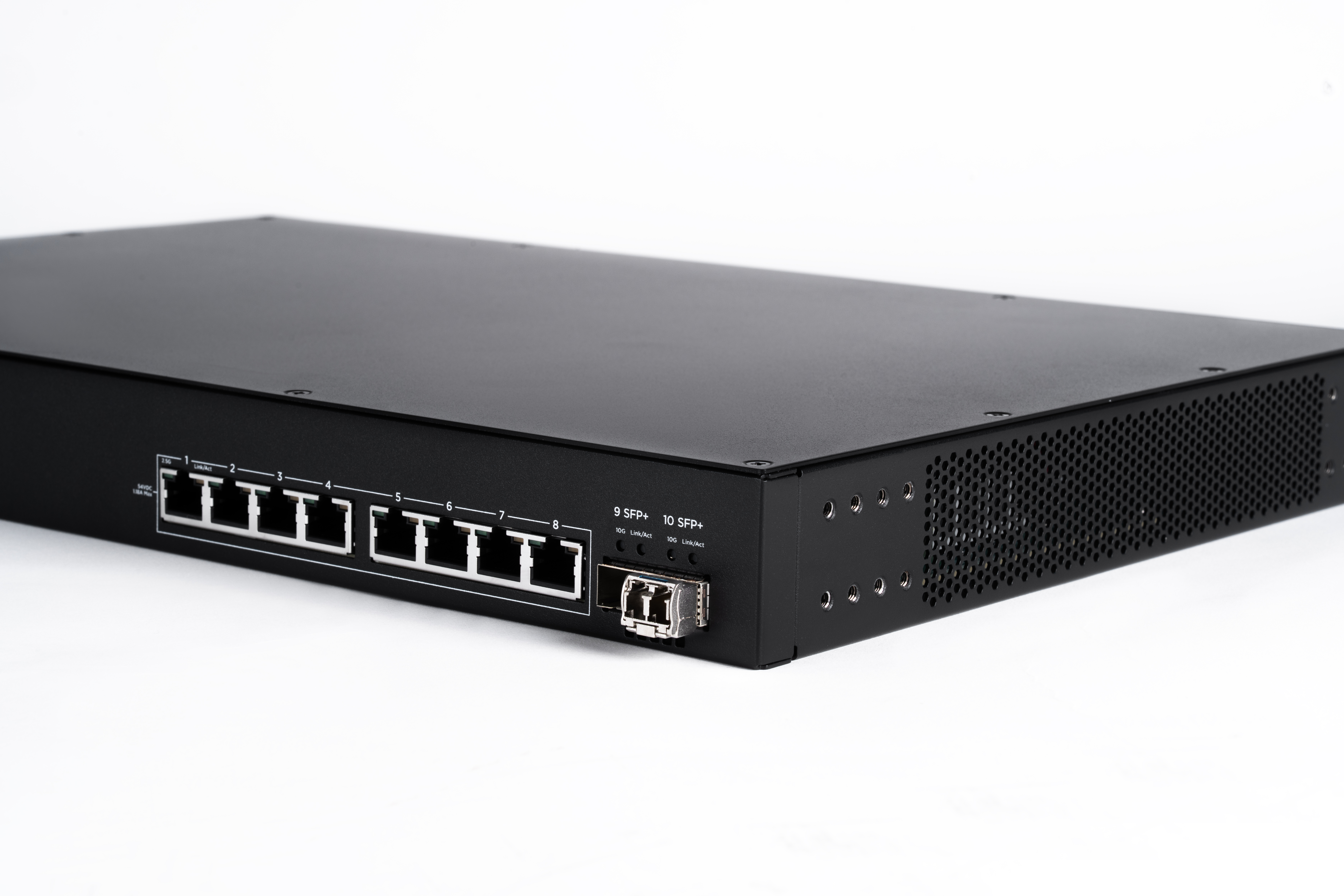

This SFP+ transceiver module pairs best with Araknis Network switches that feature 10Gbps SFP+ ports.
Designed for 1310nm Fiber Optic Cables
This SFP+ transceiver module supports 1310nm fiber optic cables with LC connectors and single-mode capabilities.
Great for Commerical Applications
This transceiver module is designed primarily for extremely large commercial projects that require high-speed data transfer capabilities over very long distances.
High-speed Data Transfer
This transceiver module supports high-speed data transfer capabilities of 10Gbps over fiber optic cables, with a range of up to 20 kilometers.
Simple Plug-and-Play Installation

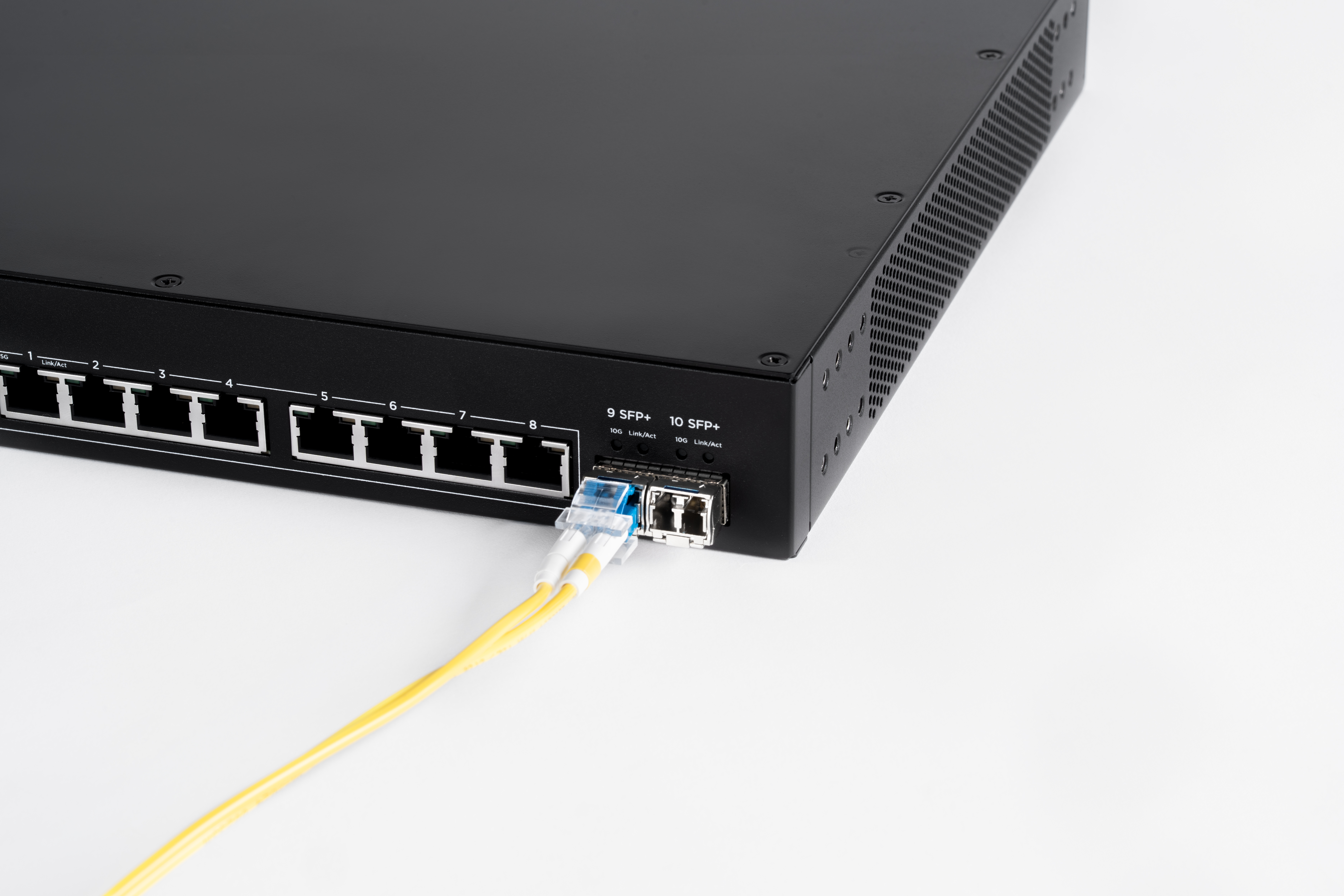

No need to set up or configure SFP+ port usage. Simply plug the Transceiver into your Araknis Network switch and attach your fiber optic cable with an LC connector.
Hot Swappable
Forget about having to turn your switch on and off to set up the SFP+ ports. You can insert this small form plug at any time without risking damage to it or the switch.
Durable Metallic Enclosure
The metallic enclosure ensures strength, reliability, and heat control in the toughest of environments.
Specs
Specifications
| AN-SFP-10-F-20K |
|---|
LC |
10Gbps |
12.4mi (20km) |
"10GBase-LR at 10.3125Gbps, 10GBase-LW at 9.953Gbps" |
-40° to 185° F (-40° to 85° C) |
-40° to 185° F (-40° to 85° C) |
2.23 x 0.48 x 0.57 in (56.7 x 12.32 x 14.6 mm) |
0.15 lb (0.07 kg) |
1310nm fiber optic |
Single-mode |
4.5V |
Connector Type |
Data Transfer Rate |
Transmission Distance |
Supported Network Protocols |
Operating Temperature |
Storage Temperature |
Dimensions (W x H x D) |
Weight |
Cable Type |
Transfer Mode |
Maximum Power |
Support
Sales Resources
Support Documents
2-Year Limited Warranty
This Araknis product has a 2-Year Limited Warranty, subject to the terms and conditions of the Snap One Limited Hardware Warranty.
