Description
Description
The Atlona AT-HDR-EX-70C-RX is a HDBaseT™ to HDMI® receiver for 4K and high dynamic range (HDR) content. It supports 4K/UHD video extension @ 60 Hz with 4:4:4 chroma sampling plus HDR data, multi-channel audio, control signals, and power up to 130 ft. (40 m) or 1080p up to 230 ft. (70 m) over Category 6/6A cable. The HDR-EX-70C-RX is ideal for use with the AT-HDR-CAT-2, AT-HDR-CAT-4, and AT-HDR-CAT-8 distribution amplifiers for passing 4K HDR signals to a display. A compact enclosure and remote power supplied by the transmitter means the receiver can be conveniently mounted in furniture, behind a display, or above a projector.
Atlona 4K HDR HDBaseT Receiver with Control, Ethernet, and Remote Power
The Atlona AT-HDR-EX-70C-RX is a HDBaseT™ to HDMI® receiver for 4K and high dynamic range (HDR) content. It supports 4K/UHD video extension @ 60 Hz with 4:4:4 chroma sampling plus HDR data, multi-channel audio, control signals, and power up to 130 ft. (40 m) or 1080p up to 230 ft. (70 m) over Category 6/6A cable. The HDR-EX-70C-RX is ideal for use with the AT-HDR-CAT-2, AT-HDR-CAT-4, and AT-HDR-CAT-8 distribution amplifiers for passing 4K HDR signals to a display. A compact enclosure and remote power supplied by the transmitter means the receiver can be conveniently mounted in furniture, behind a display, or above a projector.

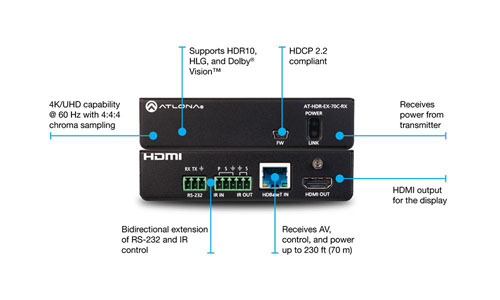

Technical Features

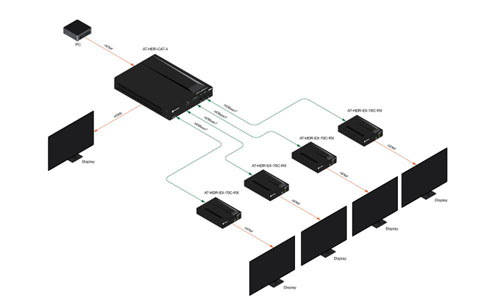

- HDBaseT receiver for use with the AT-HDR-CAT-2, AT-HDR-CAT-4, and AT-HDR-CAT-8 distribution amplifiers
- 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling
- Supports HDR10, HLG, and Dolby® Vision™ HDR formats
- Features visually lossless compression with no latency to enable HDR and 4K/60 4:4:4 video signal extension over HDBaseT
- HDBaseT input receives HDMI, control signals, and power up to 130 feet (40 meters) for 4K HDR or 230 feet (70 meters) for 1080p with Category 6/6A
- Extends bidirectional RS-232 and IR control signals over HDBaseT
- Remotely powered by the AT-HDR-CAT distribution amplifiers over HDBaseT
- Compliant with HDCP 2.2, the latest specification for passing protected content between devices
- Multi-channel audio pass-through
- Front panel Power and Link status LEDs
- Front panel USB port for firmware updates
- Rear panel connections simplify wire management and save installation time
- Compact enclosure can be mounted in furniture, behind a display, or above a projector
- Included accessories – surface mounting hardware and installation guide
Specs
Specifications
| AT-HDR-EX-70C-RX |
|---|
Supports up to 2.2 |
PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X®, DTS® Digital Surround™ |
CAT5e/6 @ 4K - up to 35 meters/115 ft CAT6a/7 @ 4K - 40 meters/130 ft CAT5e/6 @ 1080p - up to 60 meters/200 ft HDMI IN/OUT @ 4K - up to 5 meters/15 ft HDMI IN/OUT @ 1080p - up to 10 meters/30 ft |
10.2 Gbps |
CE, FCC, UKCA |
x1 Firmware - Mini-B USB
x1 HDBaseT - RJ45
HDMI - Type A
x1 IR - 5-pin captive screw
x1 RS-232 - 3-pin captive screw |
4.29" x 1.02" x 5.00" |
20 to 90% non-condensing |
32°F to 122°F |
7.95W |
-4°C to 140°F |
.85 lb |
4096x2160@60/50/30/25/24Hz 3840×2160@60/50/30/25/24Hz
1920x1080p@60/59.9/50/30/29.97/25/
24/23.98Hz 1920x1080i@30/29.97/25Hz 720p@60/59.94/50Hz 576p@50Hz 576i@25Hz 480p@60/59.96Hz 480i@30Hz |
2560×1600 2048×1536 1920×1200
1680×1050 1600×1200 1440×900 1400×1050 1280×1024 1280×800 1366×768 1360×768 1152×864 1024×768 800×600 640×480 |
32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz |
up to 24-bit |
YUV, RGB |
4:4:4, 4:2:2, 4:2:0 |
8-bit, 10-bit, 12-bit |
Pass through |
Powered by compatible 48V transmitters |
HDCP Compliance |
Supported Formats |
Transmission Distance |
Supported Video Bandwidth |
Certifications |
Connectors |
Dimensions (W x H x D) |
Operating Humidity |
Operating Temperature |
Power Consumption |
Storage Temperature |
Weight |
Supported Resolutions |
VESA Resolution |
Supported Sample Rates |
Bit Rate |
Colorspace |
Chroma Subsampling |
Color Depth |
CEC |
PoE Consumption |
