The Atlona AT-HDR-SW-51 is a 5×1 HDMI switcher for high dynamic range (HDR) formats. Part of the comprehensive family of Atlona 4K HDR integration products, it features 5 HDMI inputs and a single HDMI output.
Atlona®4K HDR Five-Input HDMI Switcher
The Atlona AT-HDR-SW-51 is a 5×1 HDMI switcher for high dynamic range (HDR) formats. Part of the comprehensive family of Atlona 4K HDR integration products, it features 5 HDMI inputs and a single HDMI output. The HDR-SW-51 is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. It is ideal for the latest as well as emerging 4K/UHD and HDR sources and displays, and includes EDID management features and automatic input switching. Additionally, 4K downscaling to 1080p @ 60, 30, or 24 Hz is available when connected to an HD display. The HDR-SW-51 can de-embed audio from an HDMI input to S/PDIF or balanced analog audio outputs. This HDMI switcher can be controlled via Ethernet, RS-232, and IR.
The HDR-SW-51 is part of the HDR-SW Series that also includes the HDR-SW-52and HDR-SW-52ED 5×2 HDMI matrix switchers.
Reliable Auto-Switching
The HDR-SW-51 can automatically select an input source based on detection of the 5-volt hot plug detect (HPD) signal, as well as active video. This ensures reliable auto-switching operation for all video sources, including DVRs, DisplayPort/Mini DisplayPort adapters, and other devices that always maintain the HPD line at the 5-volt “high” state but may not be delivering active video.
Applications
- Conference rooms and meeting rooms - The HDR-SW-51 is compact and ideal for under-table mounting. It conveniently provides automatic switching for simplified user operation, especially when laptops are brought into the system.
- Localized video source switching – This switcher can be used to feed into a larger, multi-zone AV distribution platform such as the Atlona OmniStream™ AV over IP system.
Bring Together HDMI Sources
The AT-HDR-SW-51 goes anywhere you may need to switch between several AV source devices. It can function as a standalone product or as the entry point into a larger, centralized AV system.
4K HDR Support
Provides 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling as well as HDR10, HLG, and Dolby® Vision™ HDR formats for very high, pristine image quality.

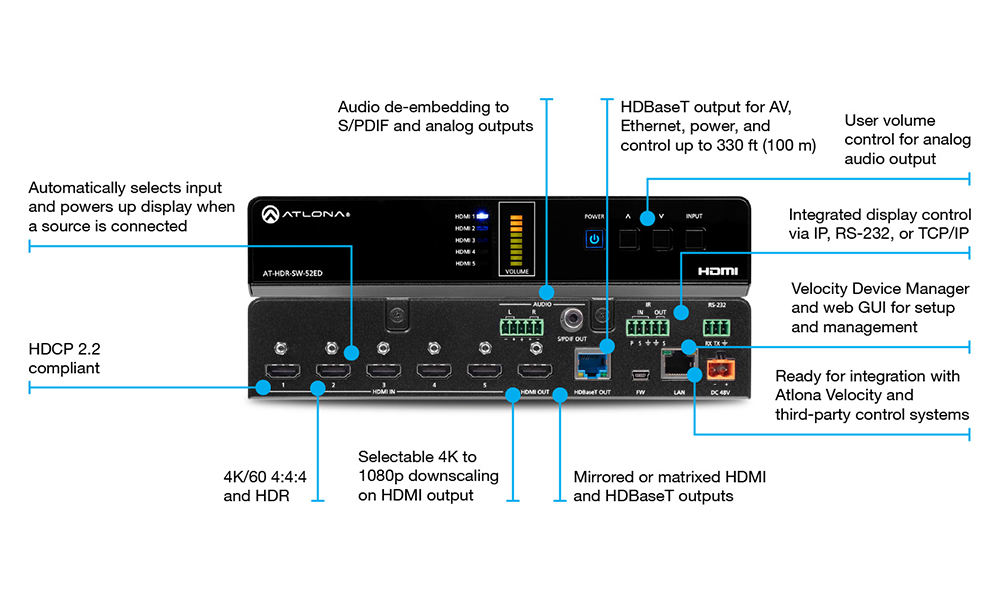

Sophisticated Integration Capabilities
Features and capabilities designed to ease integration in commercial AV applications include audio de-embedding, EDID and HDCP management, and HDBaseT link testing.
- 5x1 HDMI Matrix Switcher
- 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling, plus support for HDR formats
- Selectable 4K to 1080p downscaling
- Automatic input selection using hot plug detect and video detection technology
- Audio de-embedding
- Multi-channel audio compliant
- EDID management
- HDCP 2.2 management
- Intuitive GUI-based configuration using integrated web server
- TCP/IP, RS-232, and IR control
- Easy to configure and manage with Velocity Device Manager
- Field-updatable firmware
- Front panel volume controls and LED indicator
- Rack-mountable, 1U, half rack width enclosure
Technical Features
Specs
Specifications
| AT-HDR-SW-51 |
|---|
1U |
2.2 |
LPCM 2.0, LPCM 5.1,LPCM 7.1 Dolby® Digital, Dolby Digital Plus™ ,Dolby TrueHD, Dolby Atmos® DTS® Digital Surround™, DTS-HD Master Audio™,DTS:X® |
HDMI IN/OUT @4K/UHD - 15 Feet (5 meters) HDMI IN/OUT @ 1080p - 30 Feet (10 meters) |
Device: CE, RoHS, FCC Power Supply: CE, FCC, UL, CUL, TUV-GS, CB, PSE, CCC |
Unit: 8.19"x 1.34" x 4.41" (208 x 34 x 112 mm) |
20% to 90%, non-condensing |
+32 to +122 |
18.06 W |
1 x 3-pin captive screw Use: Unit and external device control and configuration Baud Rates: 2400, 4800, 9600, 19200, 38400, 57600, 115200 Data Flow: Bidirectional |
-4 to +140 |
1.44 lbs (3.15 kg) |
32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz |
Up to 24 bits |
YUV, RGB |
4:4:4, 4:2:2, 4:2:0 |
8-bit, 10-bit, 12-bit |
100 - 240 V AC, 50/60 Hz Output: 5 V/ 4A DC |
1 x RJ45 Standards and Protocols: HTTP, Telnet Speeds: 10/100 Mbps Addressing: DHCP, Static – selectable through built-in web server and Telnet commands |
Rack Spacing |
HDCP Compliance |
Supported Formats |
Transmission Distance |
Certifications |
Dimensions (W x H x D) |
Operating Humidity |
Operating Temperature |
Power Consumption |
RS-232 Ports |
Storage Temperature |
Weight |
Supported Sample Rates |
Bit Rate |
Colorspace |
Chroma Subsampling |
Color Depth |
External Power Supply |
Ethernet |
