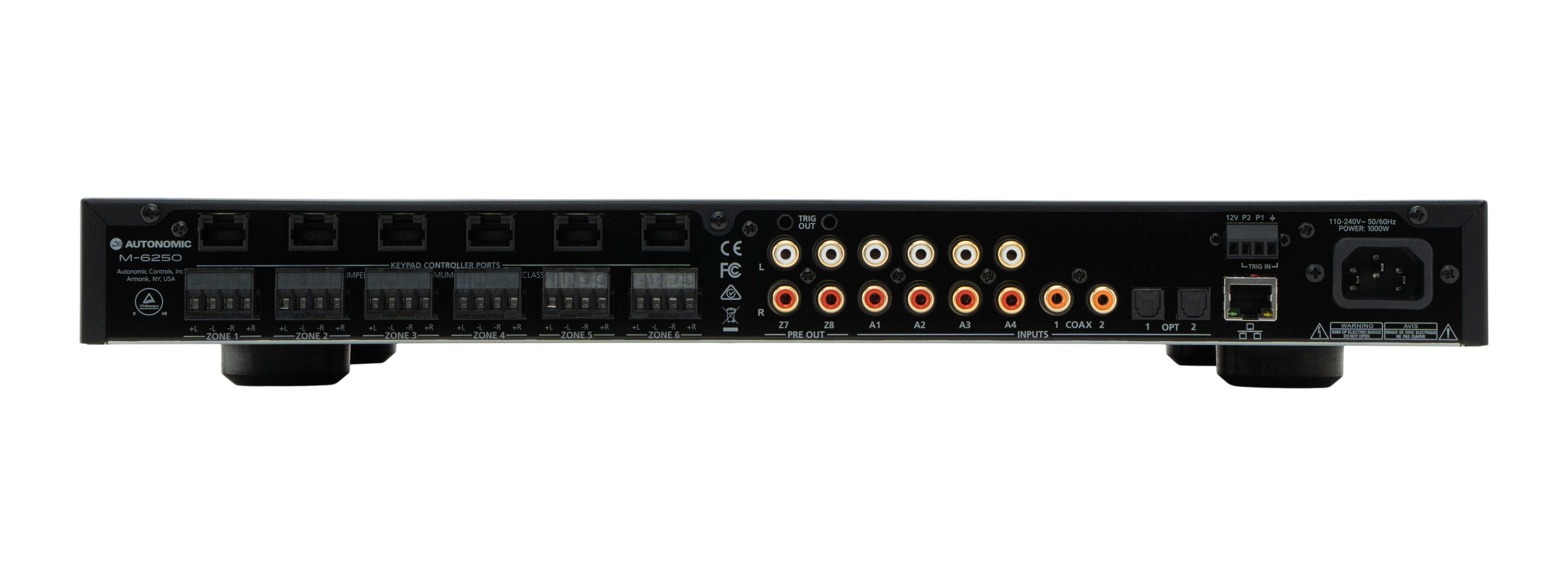

Introducing the M-6250
The M-6250 is a high-performance distribution amplifier purpose-built for installations that demand clean power delivery and seamless integration with external audio sources. Delivering 55 watts per channel at 8 Ω and 85 watts at 4 Ω, it provides the backbone for robust whole-home audio systems, whether driving architectural speakers directly or extending existing Mirage installations.
With six amplified zones plus two pre-amp zones, native IP control, analog, digital coaxial, and TOSLINK inputs, the M-6250 provides installers with a flexible, high-fidelity solution for scalable projects. It’s equally at home as a standalone matrix amplifier in a control system or as part of a complete distributed audio ecosystem.
Important Note: The M-6250 does not include built-in streaming capabilities. It can receive audio over the network from Autonomic Music Servers or Streaming Amplifiers via eAudioCast, or play from its local inputs.
Key Features
Purpose-Built Amplification
Engineered to deliver stable, low-distortion power across all zones. Ideal as the primary amplifier in a centralized audio rack or as an expansion to existing MA6 or MA4 Amplifiers or M Series Music Servers.
Flexible System Design
Operate as an independent IP-controllable distribution amplifier or pair with any of our music servers or streaming amplifier to enable networked audio playback via eAudioCast™.
eAudioCast Integration
When combined with Autonomic streaming sources, the M-6250 can receive high-resolution network streams and distribute them across zones, creating a decentralized whole-home system that resides entirely on the network.
High-Resolution Digital Inputs
Two coaxial and two TOSLINK inputs preserve digital source integrity up to 24-bit/96 kHz, maintaining reference-grade quality until the final amplification stage.
Scalable Architecture
Easily expand from 8 to 96 zones by bridging multiple amplifiers—M-6250, MA6, or MA4—within the same system. Advanced zone grouping and linking options make it simple to manage large installations.
Comprehensive Control
Full IP control support enable tight integration with control systems. Volume, source, power, and mute can be addressed per zone. Control is also available through the TuneBridge app, the Autonomic web interface, and our KP-6 Keypads.
Six Keypad Ports
Bring designer elegance and simplicity to your Autonomic Audio System with KP-6 in-wall keypads. Each M-6250 can power up to 6 KP-6 keypads over standard category cabling.
Specs
Specifications
| AU-M6250 |
|---|
10KΩ |
55W/channel |
85W/channel |
N/A |
Class G/H |
0.1% (50 Watt, 8 Ω load) |
1000 Watts |
12 |
Phoenix |
Fanless |
96 KHz sample rate: 10Hz - 42 KHz |
110V-240V IEC 60320-1C13/C14 power cord (included) |
ETL, FCC, CE, UKCA, ROHS, WEEE |
Yes |
11lbs |
95dB (IHA-A, 0.75V input / unbalanced) |
0dBFS |
2.39" x 17.13" x 11.89" |
Impedance Input |
Power Output @ 4 ohm |
Power Output @ 8 ohm |
Power Output Bridged @ 8 ohm |
Topology |
Total Harmonic Distortion (THD) |
Power Consumption |
Channels |
Connector Type |
Fan Description |
Frequency Response |
Power Connection Type |
Certifications |
LED Indicators |
Weight |
Signal to Noise Ratio |
Sensitivity Input |
Dimensions (W x H x D) |
Support
Manuals and Guides
Control Protocols and Drivers
Third-Party Partner Warranty
Autonomic products carry a manufacturer’s warranty from Autonomic. We want to make our Third-Party Partner program as easy as possible. That’s why we can assist in processing all third-party product warranty claims directly.
Autonomic offers a 2-Year Limited Warranty on its products. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products which have been abused, modified or disassembled. All implied warranties with respect to Products or parts sold by Supplier to Distributor, including but not limited to implied warranties of merchantability and fitness for a particular purpose, hereby are excluded, except to the extent that such disclaimers are held to be legally invalid. Products to be repaired under this warranty must be returned to Autonomic or a designated service center with prior notification and an assigned return authorization number (RA). End-users should contact an authorized dealer who can work with us to obtain RA number in order to submit any warranty claim.
