To be clear - this is not your everyday run-of-the-mill DAC (but we do sell one of those). The Binary™ HDMI Audio De-Embedder works like a multi-tool for the A/V world. It works as a bridge between whole-house audio and whole-house video. TheBinary™ HDMI Audio De-Embedder extracts and decodes up to Dolby® TrueHD, DTS-HD Master Audio™ audio formats and sends multichannel digital audio from a BluRay, AppleTV or other device to a surround receiver or matrix switcher. Simultaneously, it outputs a two-channel signal for whole-house audio. No missing audio, no menu-based selections to change formats, and no compromises.
This device offers full support of 4K60 4:4:4 (including HDMI 2.0 with 3D), Deep Color (36bit) and HDCP 2.2, as well as support for Dolby® TrueHD, and DTS-HD Master Audio™ audio formats. Please note, 4K support varies by distance and cable type, please refer to specifications for further details.
This device supports the majority of HDMI audio formats, and is certified by DTS® (DTS®, DTS-HD®, and DTS-HD® Master Audio®) and by Dolby® TrueHD for its ability to decode and downmix multichannel audio to two-channel audio.

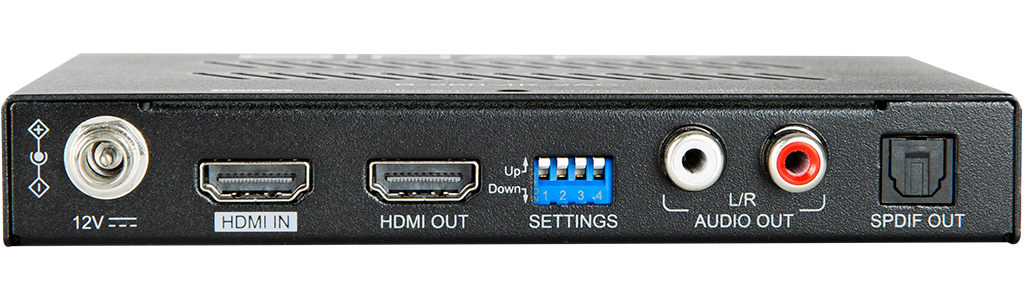

A rear dip switch delivers the flexibility to select which audio format goes from the de-embedder to the TV from the source output. A Mute setting only sends video to the HDMI output, ensuring that no audio passes through. A Pass-through setting allows audio to pass through as multichannel audio from the HDMI input to the HDMI output. Finally, an Audio Return setting enables eARC and ARC.
Featuring two-channel audio delay, the Binary™ HDMI Audio De-Embedder is equipped with an adjustable rear dip switches that enables the two-channel audio to stay in sync with the HDMI video signal. It provides a variable delay for the two-channel stereo audio signal that is available to the analog audio outputs, as it downmixes multi-channel audio to two-channel analog audio.

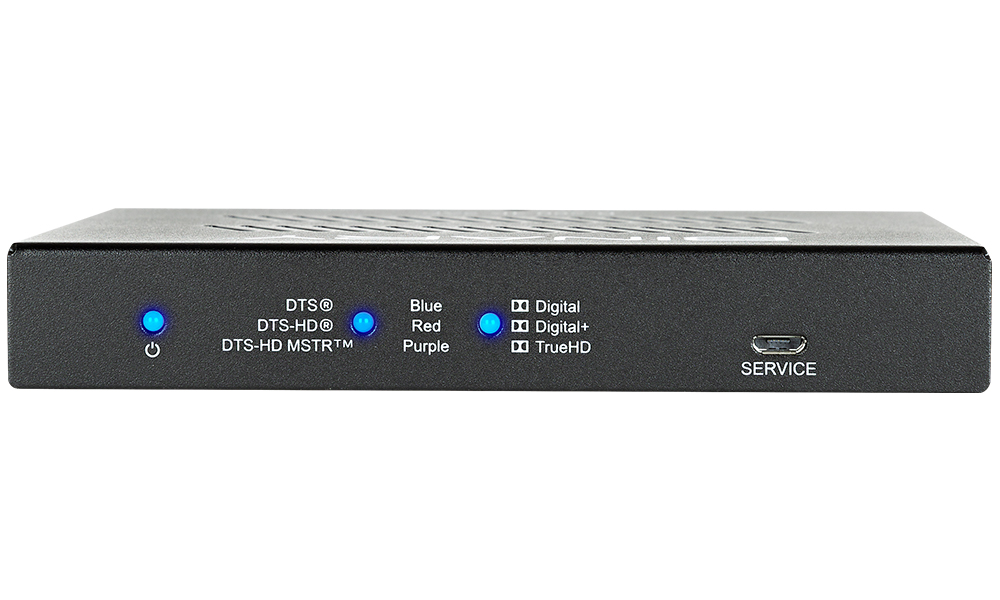

For easy diagnostics, LED indicators on the front panel light up to indicate audio input from source to DTS® format and/or Dolby® format audio. The LED lights up blue when the unit is receiving DTS® or Dolby® audio. A red light indicates DTS-HD® or Dolby® Digital Plus audio, and a purple light indicates DTS-HD® Master or Dolby® TrueHD audio.

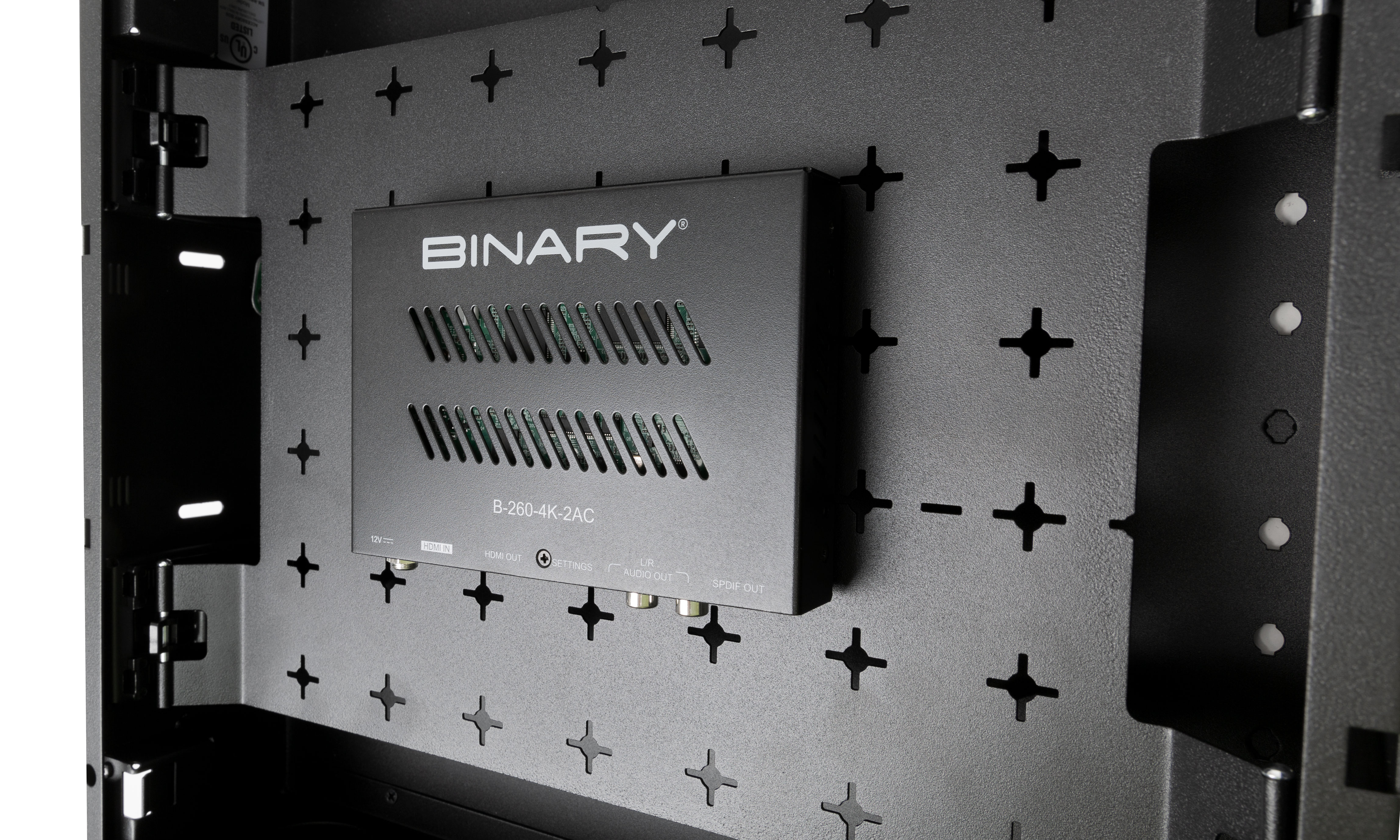

This device is sleek in design and small in size. It can be mounted directly on the rack for a multi-room audio solution, or behind the TV for two-channel audio downmixing. It fits neatly in a VersaBox with all the ports on a single side.

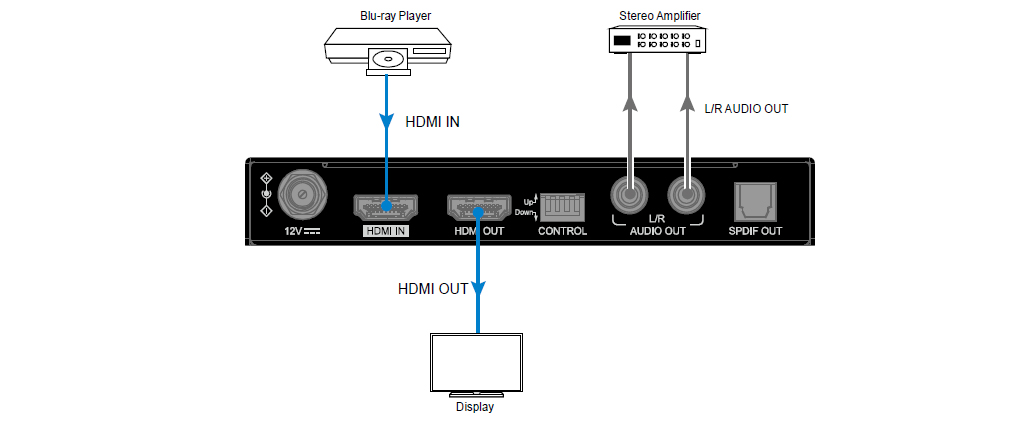

The Binary™ HDMI Audio De-Embedder can be used to support whole house audio for multiple devices, or simply to downmix audio to one TV with two-channel audio outputs. It is the perfect solution for solving audio conflicts associated with various devices, including Roku®, BluRay® players, Apple TV®, and more.
B-260-4K-2AC |
---|
HDCP 2.2 |
1080P@60Hz, 3D & 4K@30Hz 4:4:4, 4K@60Hz 4:4:4 |
1 x HDMI In, 1 x HDMI Out |
Up to PCM 7.1CH 192KHz, Dolby Digital, Dolby, Digital plus, Dolby TrueHD up to 7.1CH, DTS, DTS-HD,
DTS-HD Master up to 7.1CH |
2-Channel RCA, SPDIF |
(1) Human body model — ±5kV (air-gap discharge) ±8kV (contact discharge) (2) Core chipset — ±8kV |
Latch-Locking |
2 VRMS @ 10 kΩ impedance load |
CE, FCC |
Micro USB (for service only) |
5.51" x 0.83" x 3.94" (without mounting ears) 9.125" x .09375" x 3.125" (with mounting ears) |
Dual Audio Format LED's to indicate the DTS® or Dolby audio format received from the HDMI source |
Metal |
10-90% RH (no condensation) |
32 - 104°F / 0 - 40°C |
2.5W (max) |
12V DC, 2A |
-4 - 140°F / -20 - 60°C |
0.79 lbs |
4-pins PIANO style DIP switch: Mute, Audio Path, Pass Through,eARC/ARC 2-CH Audio
0-120ms Analog Audio Delay switch |
HDCP Compliance |
HDMI Compliance |
HDMI Connections |
Supported Formats |
Audio Output Connectors |
ESD Protection |
Power Connection Type |
Audio Inputs / Outputs |
Certifications |
Connectors |
Dimensions (W x H x D) |
Features |
Construction |
Operating Humidity |
Operating Temperature |
Power Consumption |
Line Voltage |
Storage Temperature |
Weight |
Controls |
This Binary™ product has a 2-year limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty will not apply to products that have been abused, modified or disassembled. Products to be repaired under this warranty must be returned to Snap One or a designated service center with prior notification and an assigned return authorization number (RA).
