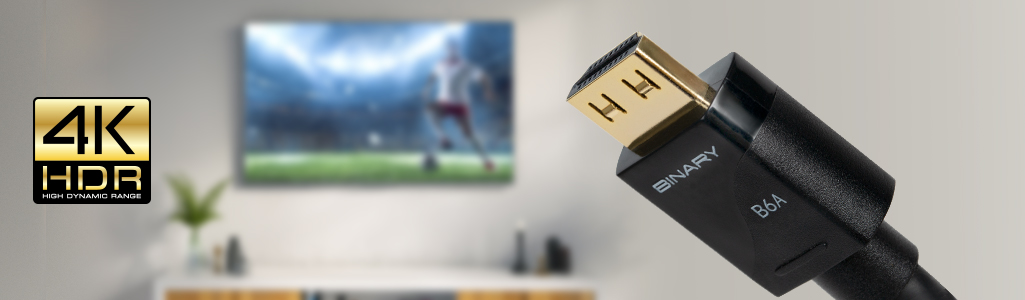

Our 10-, 15-, and 20-meter directional B6A Active HDMI cables support Ultra HD 4K @ 60Hz 4:4:4 and HDR, transmitting 18Gbps of bandwidth for your advanced video format needs while supporting wide color gamut, Dolby® ATMOS, and much more. Plus, they don’t require external power, so you never have to worry about finding additional power sources to get the cable to work. Active technology uses chipsets and microelectronics to enhance & protect your connection, and intense quality testing ensures the active cable can handle bandwidth up to recent HDMI specifications (including HDMI 2.0b), allowing your customers to stream everything from high-res video and audio to data and beyond.
Our 10-, 15-, and 20-meter directional B6A Active HDMI cables support Ultra HD 4K @ 60Hz 4:4:4 and HDR, transmitting 18Gbps of bandwidth for your advanced video format needs while supporting wide color gamut, Dolby® ATMOS, and much more. Plus, they don’t require external power, so you never have to worry about finding additional power sources to get the cable to work. Active technology uses chipsets and microelectronics to enhance & protect your connection, and intense quality testing ensures the active cable can handle bandwidth up to recent HDMI specifications (including HDMI 2.0b), allowing your customers to stream everything from high-res video and audio to data and beyond.

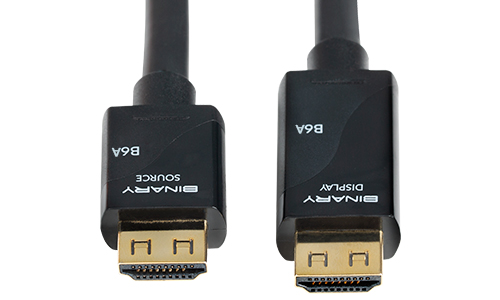

High-performance micro-electronics are integrated into each active connector head. These valuable chipsets automatically monitor and protect the signal to ensure reliable transmission – even for full 4K HDR content at 18Gbps!

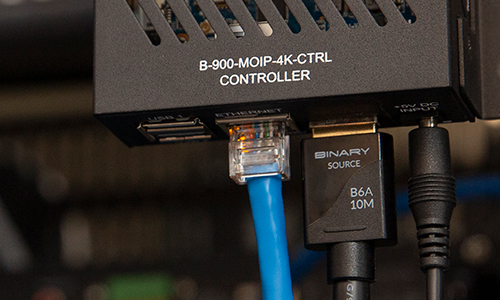

All Binary active cables now utilize an enhanced and more efficient chipset, pulling all the power it needs through the source and eliminating the need for external USB power, making the use of active HDMI cables easier than ever.
These B6A Active Series HDMI® Cables support 18Gbps connection speeds and 4K @ 60Hz 4:4:4 – meaning they can transmit a true 4K Ultra HD signal and HDR.
Common cable-related service calls are easily prevented thanks to GripTek™, Binary's exclusive gripping technology. Retention points on the connector create a strong hold and require up to 8lbs. of pulling force to remove – 40% more than a traditional HDMI connector!
Our B6A Active Series cables are reinforced with a protective gel that extends to the strain relief to ensure a secure connection of the cable to the connector.
Our B6A Series cables support high-resolution audio and video formats including Dolby® ATMOS, DTS™-X, and HDMI® 3D.
For a high-tech way to transmit audio back to a centralized location, an AVR, or another system, use the ARC (Audio Return Channel) feature to send audio from a smart TV or another source in the viewing room back to the head end. It’s great for smart TVs, Blu-Ray players, or other content sources that stream original audio and video straight from the box.
When a data signal is created in a quantum data tester, it produces an “eye pattern” that showcases signal clarity as well as any noise that exists around the data stream. The clearer the eye pattern, the stronger the signal. Our B6A Series cables offer a super-clear, well-defined eye pattern, minimizing the risk of data loss, sparkles, and common signal cut-out that occurs with non-certified cables.
| B6A-4K2-10 | B6A-4K2-15 | B6A-4K2-20 |
|---|---|---|
HDCP 2.2 |
HDCP 2.2 |
HDCP 2.2 |
Yes |
Yes |
Yes |
HDMI 2.0 |
HDMI 2.0 |
HDMI 2.0 |
RoHS, UL Listed, CL3, CE |
RoHS, UL Listed, CL3, CE |
RoHS, UL Listed, CL3, CE |
Black |
Black |
Black |
Each |
Each |
Each |
18.0 Gbps |
18.0 Gbps |
18 Gbps |
10m/32.8 ft |
15m/49.2 ft |
20m/65.6 ft |
4K @ 60Hz, 4:4:4 |
4K @ 60Hz, 4:4:4 |
4K @ 60Hz, 4:4:4 |
Yes |
Yes |
Yes |
24 AWG |
24 AWG |
24 AWG |
Display side: 40mm x 11.8mm x 19.8mm Source side: 27.8mm x 10.5mm x 19.8mm |
Display side: 40mm x 11.8mm x 19.8mm Source side: 27.8mm x 10.5mm x 19.8mm |
Display side: 40mm x 11.8mm x 19.8mm Source side: 27.8mm x 10.5mm x 19.8mm |
HDCP Compliance |
3D Support |
HDMI Compliance |
Certifications |
Color |
Sold As |
Bandwidth |
Length |
Video Resolution |
HDMI GripTek |
Gauge |
Head Dimensions (W x H x D) |
This Binary™ product has a 2-year limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty will not apply to products that have been abused, modified or disassembled. Products to be repaired under this warranty must be returned to Snap One or a designated service center with prior notification and an assigned return authorization number (RA).
