BenQ brings a new series of high-brightness laser projectors with superior image quality, flexible installation, and easy-to-maintain/manage features. Experience next-generation public displays and brand-new visual effects for a most immersive visual experience. LU960ST2’s design of sealed laser modules and enclosed light engines protects the DMD chip, color wheel sensor, laser package, and other optical components, prolonging the projector’s lifespan up to 20,000 hours.
BenQ LU960ST2 Laser WUXGA Short Throw 5,200 Lumen Projector
BenQ brings a new series of high-brightness laser projectors with superior image quality, flexible installation, and easy-to-maintain/manage features. Experience next-generation public displays and brand-new visual effects for a most immersive visual experience. LU960ST2’s design of sealed laser modules and enclosed light engines protects the DMD chip, color wheel sensor, laser package, and other optical components, prolonging the projector’s lifespan up to 20,000 hours.

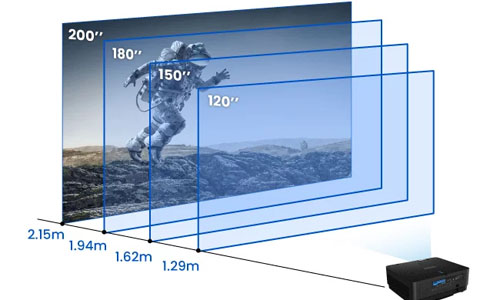

Unobstructed Viewing with 0.5 Throw Ratio
The LU960ST2 is equipped with a TR 0.5 short-throw lens to create up to 200-inch sharp, clear images within as little as 2 meters away. This enables the audience to stand closer to the screen without casting a shadow.

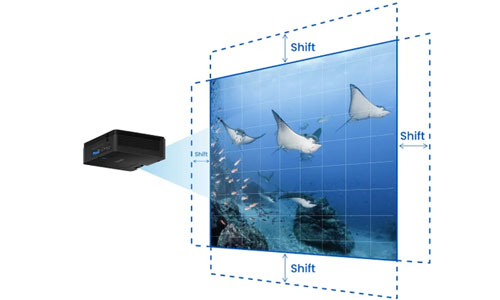

H/V Lens Shift for Mounting Flexibility
The LU960ST2 features a vertical/horizontal lens shift to move the image up and down up to 55% of the screen height – and adjust the horizontal position by 23% for an off-axis mounting location. This feature allows precise image adjustment without moving the projector.
White Balance Calibration for Seamless Edge Blending
BenQ’s exclusive out-of-the-box White Balance Calibration can reduce white balance variables between projection images to a level of Delta E<2. This allows for nearly seamless and accurate picture quality without disruptive discrepancies, saving time for blending.

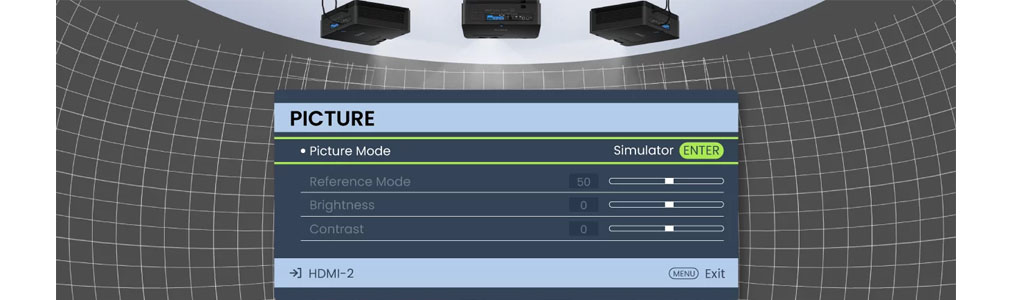

One-Click Professional Simulator Settings
BenQ’s LU960ST2 DLP laser projector is equipped with Simulator Mode, providing users with an array of paired presets optimized for high-accuracy professional training at the touch of a button, making it ideal for multi-projector setups.

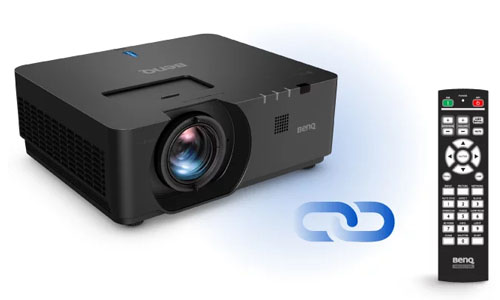

Remote Control Projector ID Setting for Independent Control
LU960ST2’s remote controller ID pairing avoids signal interference with multi-projector setup at one location. The wired remote control feature also improves installation stability when adjusting projector placement.

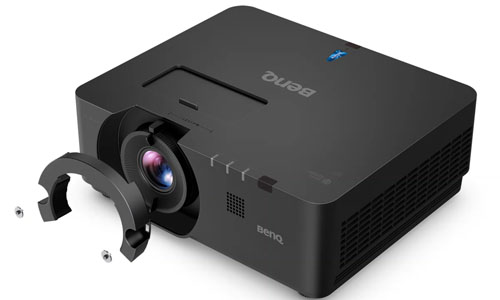

Reliable Lens Lock & Metal Lens Barrel
The BenQ LU960ST2 DLP laser projector is designed with a Lens Lock to fix the final position and focus of the lens, avoiding the need for readjustment due to mistouching. In addition, the metal Lens Barrel helps stabilize zoom and focus adjustment for better accuracy when compared to a plastic lens.

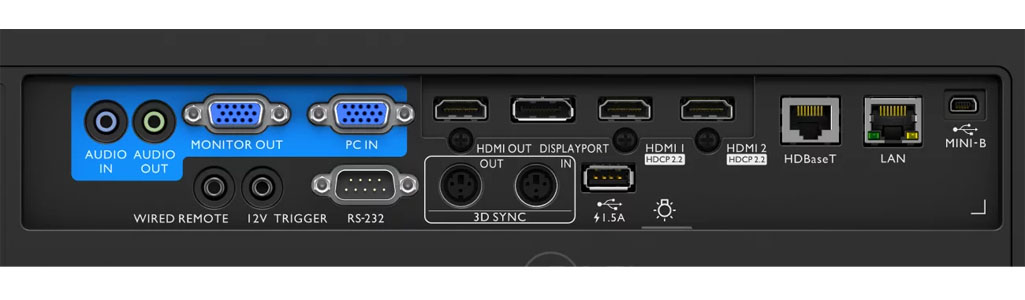

HDMI In/ Out
HDMI 2.0 cable can handle 18Gbps bandwidth, allowing for 4K 60Hz plus HDR metadata at low latency and faster refresh rates.
DisplayPort
The high bandwidth of DisplayPort 1.2a allows increased resolutions, higher refresh rates, and greater color depth. In addition, the dual barbs on the connector provide a friction lock and an option for a mechanical latch.
3D Sync In /3D Sync Out
Connect up to 4 projectors and project 3D content together via a single PC.
HDBaseT
HDBaseT connectivity combines Video, Audio, RS-232, and LAN control signals from multiple sources into a single RJ-45 cable, ensuring seamless transmission at up to 100 meters.
Specs
Specifications
| BENQ-LU960ST-2 |
|---|
WUXGA |
1920x1200 |
5500 |
0.77~0.84 |
3,000,000:1 |
16:10 |
300" |
1.1x |
Vertical: +-62% / Horizontal: +-24% |
D-Sub x1 HDMI x2 |
None |
RJ45 x1 USB Type B mini x1 RS232 x1 (DB-9pin) |
x1 |
Laser |
x1 |
x2 (Front & Back) |
18.9" x 7.2" x 15.8" |
26.46 lb |
Screen Resolution |
Supported Resolutions |
Lumens |
Throw Ratio |
Contrast Ratio |
Aspect Ratio |
Maximum Image Size |
Zoom Ratio |
Lens Shift |
Inputs |
Included Speaker |
Connectors |
12V Trigger |
Lightsource |
IR Inputs |
IR Receivers |
Dimensions (W x H x D) |
Weight |
