Cleerline SSF™ 6-Strand Armored Corrugated Steel Direct Burial Fiber Optic Cable - 2000 ft
CN-6ACS9125OS2PE-B2K
Click to enlarge
Description
Specs
Support
Description
Description

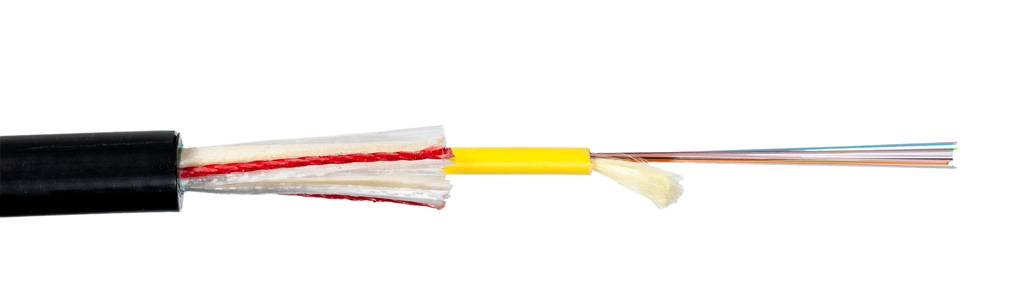

Cleerline SSF™ Armored Corrugated Steel (ACS) Distribution Direct Burial fiber optic cable consists of a PE overall jacket with 6 single mode fibers and water-blocking Kevlar® yarns. The cable’s core is protected by a corrugated armored steel tube that offers easy installation and high crush resistance.
Cleerline SSF™ 6-Strand Armored Corrugated Steel Direct Burial Fiber Optic Cable
Cleerline SSF™ Armored Corrugated Steel (ACS) Distribution Direct Burial fiber optic cable consists of a PE overall jacket with 6 single mode fibers and water-blocking Kevlar® yarns. The cable’s core is protected by a corrugated armored steel tube that offers easy installation and high crush resistance.
Applications include direct burial and installations requiring superior bend performance and crush resistance. The cable is protected by a polyethylene, UV-resistant jacket.
Single mode fiber allows long distance signal transmission (over 1000ft). Ensure all connectors and components are compatible with single mode fibers.
Corrugated Steel Armor
Beneath the UV-rated polyethylene outer jacket is the corrugated steel armor that provides crush resistance.
Go Long
Experience more bandwidth at a greater distance. Cleerline Single Mode fiber allows you to transmit signals over 1,000' without ever losing connection, making your world a whole lot smaller.
Safety First
It’s time to take the shock factor out of wiring. Cleerline Single Mode fiber won’t penetrate skin or soft tissue, making it safe to work with.
Specs
Specifications
| CN-6ACS9125OS2PE-B2K |
|---|
Black |
Outer Diameter: 9mm |
-20°C to 75°C |
-30°C to 60°C |
62 lb / 1000 ft |
2000 Ft |
Dynamic 20D |
For Installation: 2000 N (450 lbf) For Long Load Term: 600 N (135 lbf) |
OS2 |
6 Strand |
Color |
Diameter |
Operating Temperature |
Storage Temperature |
Weight |
Length |
Minimum Bend Radius |
Maximum Tensile Load |
Optical Multimode |
Strand Count |
