Cleerline SSF™ Rugged Micro Distribution Fiber Optic Cable - 1000 Ft
CN-2RMD50125OM3R
Click to enlarge
Description
Specs
Support
Description
Description

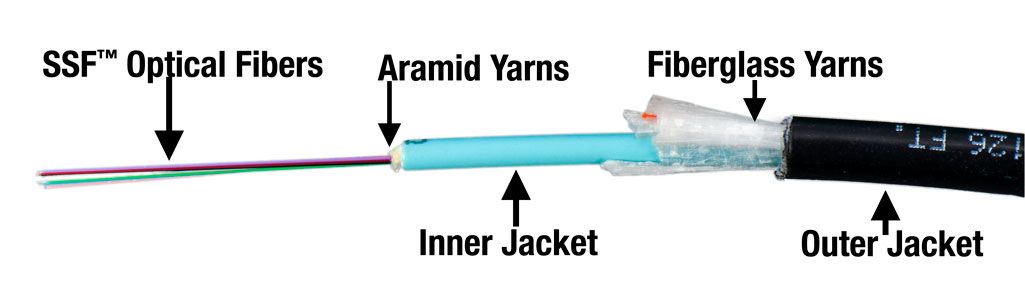

Cleerline SSF™ Rugged Micro Distribution cable is composed of a 3.0mm distribution style SSF™ cable subunit within an overall Riser rated PVC jacket.
Cleerline SSF™ Rugged Micro Distribution Fiber Optic Cable
Cleerline SSF™ Rugged Micro Distribution cable is composed of a 3.0mm distribution style SSF™ cable subunit within an overall Riser rated PVC jacket. SSF™ Rugged Micro Distribution is ideal for installation outdoors in ducts or indoors in riser spaces and tray installations. This cable incorporates an additional layer of fiberglass yarns for strength. SSF™ Rugged Micro Distribution is also rodent resistant.
Move from Outdoor to Indoor
SSF™ Rugged Micro Distribution features fully dielectric construction and is ideal for installation outdoors in ducts or indoors in riser spaces and tray installations.
Rodent Resistant
Additional fiberglass yarns help resist attention from rodents for longevity you can count on.
SSF™ Fiber Benefits
This cable features high mechanical strength, superior fatigue (nD = 30), and up to 10,000x the bend longevity of traditional fiber. Plus, integral SSF™ coating provides glass protection at all times.
10 Gbps up to 1000 Feet
Built with multimode OM3 (50/125) fiber, this cable is compatible with SSF™ mechanical splice connectors and all common connector systems for standard 50/125 multimode fiber.
Specs
Specifications
| CN-2RMD50125OM3R | CN-6RMD50125OM3R | CN-12RMD50125OM3R |
|---|---|---|
Black outer jacket/aqua subunit |
Black outer jacket/aqua subunit |
Black outer jacket/aqua subunit |
Riser Rated PVC + UV (Indoor/Outdoor) Jacket |
Riser Rated PVC + UV (Indoor/Outdoor) Jacket |
Riser Rated PVC + UV (Indoor/Outdoor) Jacket |
10 Gbps up to 1000 ft |
10 Gbps up to 1000 ft |
10 Gbps up to 1000 ft |
Fiberglass yarns |
Fiberglass yarns |
Fiberglass yarns |
-40°C to +70°C |
-40°C to +70°C |
-40°C to +70°C |
-40°C to +70°C |
-40°C to +70°C |
-40°C to +70°C |
1000 Ft |
1000 Ft |
1000 Ft |
1 x O.D. (6.1 mm) |
1 x O.D. (6.1 mm) |
1 x O.D. (6.1 mm) |
Installation: 1000 N (225 lbf) Long Term: 500 N (112 lbf) |
Installation: 1000 N (225 lbf) Long Term: 500 N (112 lbf) |
Installation: 1000 N (225 lbf) Long Term: 500 N (112 lbf) |
Outer: 6.1mm |
Outer: 6.1mm |
Outer: 6.1mm |
33.2 lb |
34.8 lb |
37.2 lb |
ETL Listed Type OFNR, CSA FT4 |
ETL Listed Type OFNR, CSA FT4 |
ETL Listed Type OFNR, CSA FT4 |
Color |
Construction |
Transmission Distance |
Features |
Operating Temperature |
Storage Temperature |
Length |
Minimum Bend Radius |
Maximum Tensile Load |
Diameter |
Weight |
Certifications |
