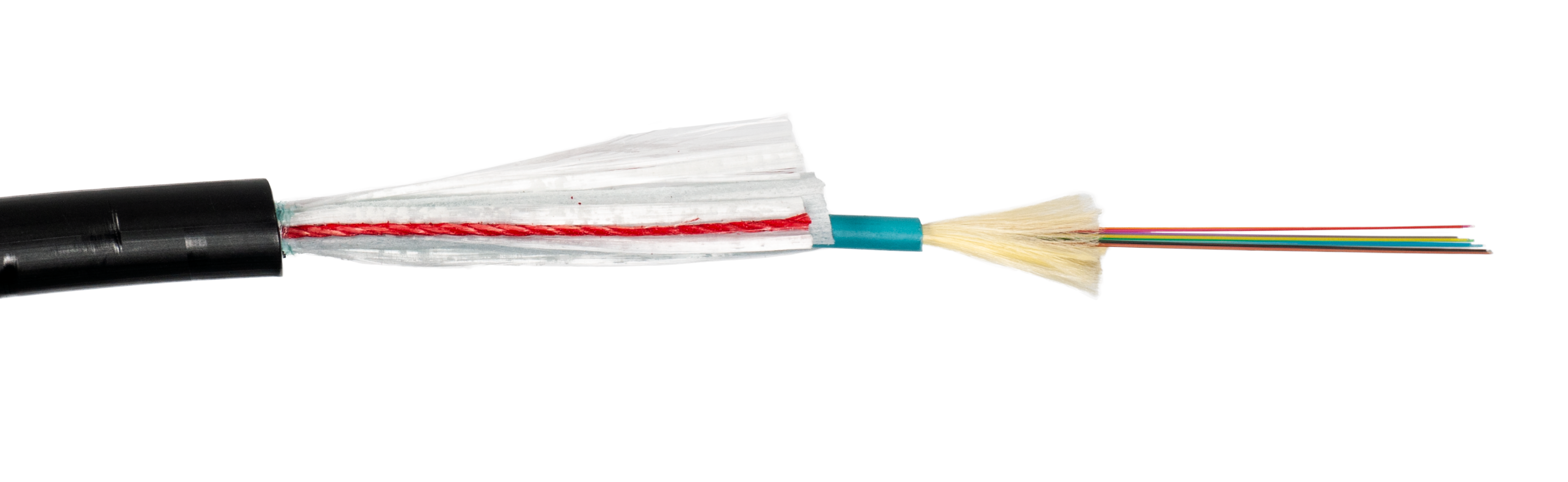

Cleerline SSF™ 6-Strand Direct Burial Fiber Optic Cable with Corrugated Steel Armor - 1000 Ft
Cleerline SSF™ Armored Corrugated Steel Micro Distribution cable consists of a PE overall jacket with 6 fibers and water-blocking Kevlar yarns.
The core is protected by a corrugated armored steel tube that offers easy installation and high crush resistance. A polyethylene, UV-resistant jacket protects the cable, allowing direct burial.
Cleerline SSF™ Armored Multimode is fully compatible with all common connector systems for standard 50/125 multimode fiber.
This product offers bend performance beyond EIA SP2840A, superior crush resistance, and superior pull.
Corrugated Steel Armor
Beneath the UV rated PVC outer jacket is the corrugated steel armor that provides up to 675lbs of crush resistance.
Strength in Flexibility
Stronger, Safer, and Faster-to-terminate, Cleerline SSF™ fiber has up to 10,000 times the bend tolerance of traditional fiber, blowing the competition out of the water.
FEATURES AND BENEFITS
- High mechanical strength, superior fatigue
- Compatible with common connector systems for 50/125 multimode fiber
- Integral SSF™ coating provides glass protection
- Exclusive 250 µm Soft Peel acrylate
- High crush resistance
- Cable built to withstand rugged environments
- Rodent resistant
APPLICATIONS
- Outdoor direct burial
- Installations requiring high crush resistance
Specs
Specifications
| CN-6ACS50125OM3PE |
|---|
Dynamic 2 x OD |
6 |
Installation: 2000 N (450 lbf Long Term: 600 N (135 lbf) |
Black |
0.35" (9.0mm) |
PE-UV, moisture resistant (OSP) |
-4°F to 167°F (-20°C to +75°C) |
-22°F to 140°F (-30°C to +60°C) |
62 lb / 1000 ft |
Minimum Bend Radius |
Strand Count |
Maximum Tensile Load |
Color |
Diameter |
Construction |
Operating Temperature |
Storage Temperature |
Weight |
