The 2022 CoolMaster is your universal connectivity and integration device for controlling and managing VRF (Variable Refrigerant Flow) HVAC systems in medium commercial and high-end residential buildings.
The 2022 CoolMaster is your universal connectivity and integration device for controlling and managing VRF (Variable Refrigerant Flow) HVAC systems in medium commercial and high-end residential buildings.
Your product of choice for VRF HVAC integration, designed for medium-size deployments with up to 32 VRF/VRV indoor units at the same site. The CoolMaster allows control of all the VRF and VRV system units, it can aggregate units from multiple systems and from various brands, over physical connection lines. It is a truly universal central controller and central integration device for any Manufacturer of VRF HVAC systems. CoolMasterPro is a Plug & Play device, simply unbox it and connect it to your VRF HVAC System. CoolMasterPro can connect with multiple VRF systems, and multiple brands, over multiple physical lines. It enables access to systems’ valuable service data, for integrating locally with Building Management Systems, allowing advanced performance monitoring.
The CoolMasterPro device enables nearly any manufacturer of VRF HVAC (Daikin, Mitsubishi, Samsung, LG, Toshiba, etc.) to be accessible and fully controllable through your control system’s main controller, thermostats, control panels, and mobile app, providing bi-directional communication with real-time feedback. Check your HVAC brand and model compatibility on the CoolMaster webpage. For additional inquiries check out the CoolMaster Resources here for access to installation guides, how to use and configure, short setup videos, and more.
Included communication otions for:
*Contact CoolAutomation for KNX version

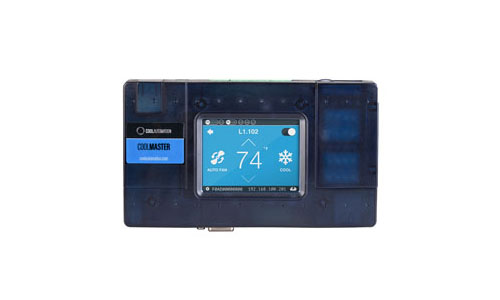

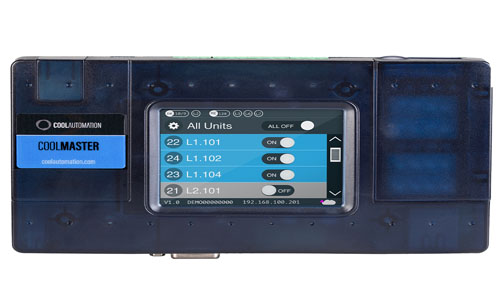

Touch screen display for local & simple device configuration, including centralized control of the VRF HVAC system
Supports multiple languages, temperature scales, and multiple power supply options

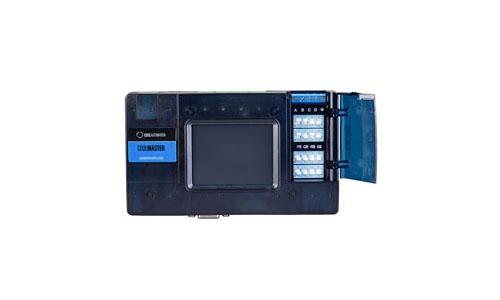

Easy to set up and re-configure for communication with different HVAC manufacturers

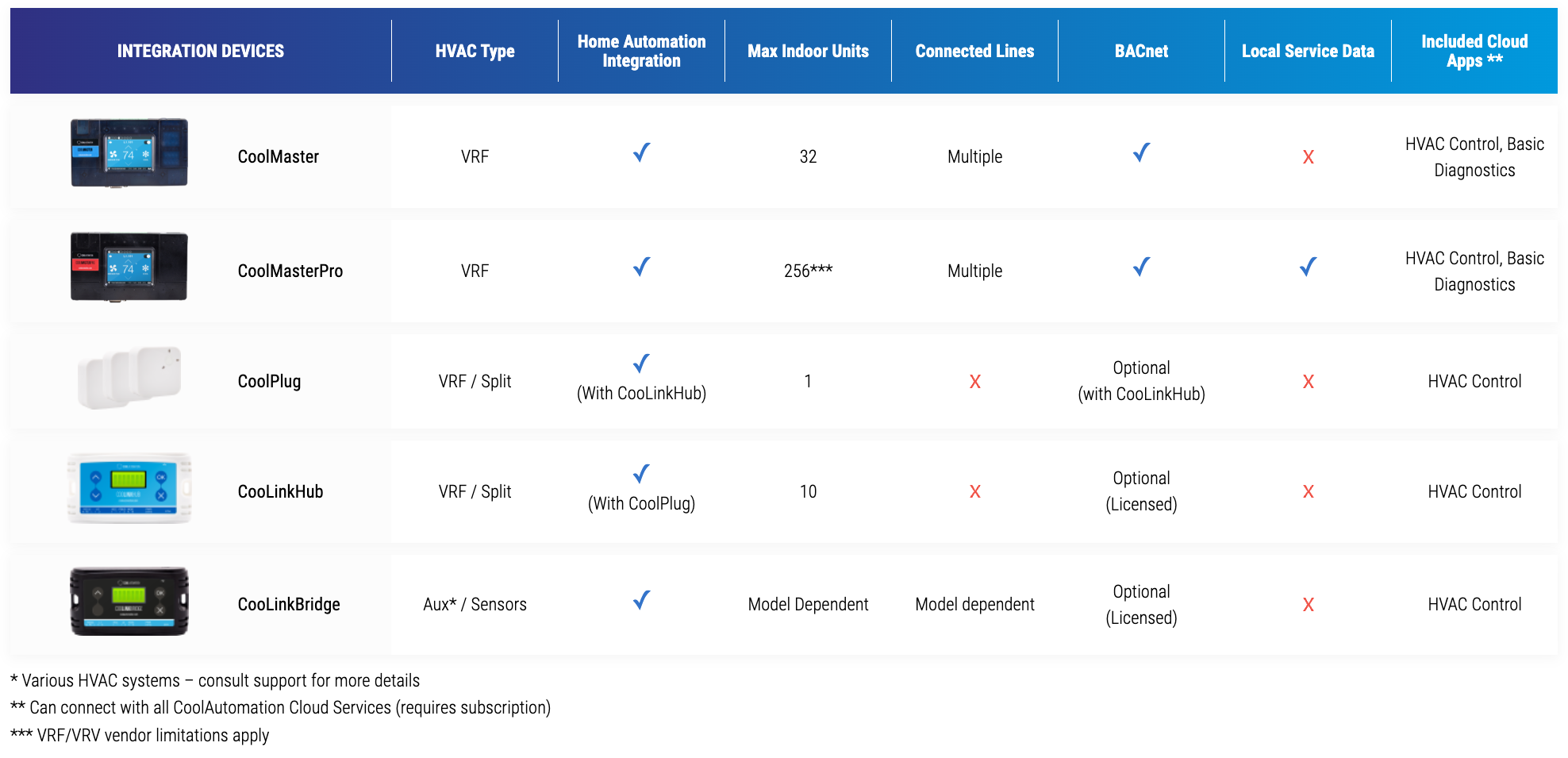

Line-up of Cool devices and HVAC control options from CoolAutomation - to cover nearly any Climate control integration project, residential and commercial.
With support for a variety of leading brands Cool Component devices create a bi-directional communication bridge between the HVAC system and the control systems.
| CO-COOLMASTER |
|---|
Min load: 5V/175mA(via mini USB); 12V/120mA; 24V/70mA Max load: 5V/300mA(via mini USB); 12V/200mA; 24V/120mA |
Ambient temperature: -10°C ~ 60°C / 14°F ~ 140°F Humidity: 0% ~ 96% non-condensing |

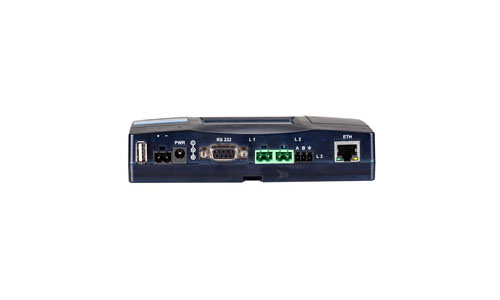

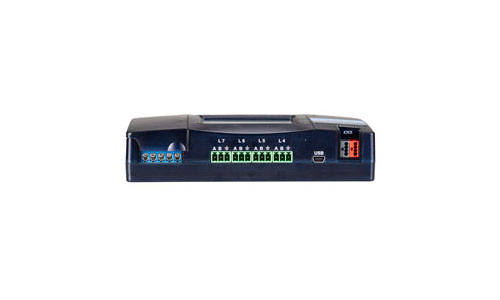

Direct HVAC conenction: Connection to the 2 wired HVAC bus MODBUS (A / B): RS-485 communication line Ethernet: 100Mbps RS-232: DB9, 9600Bps, ASCII USB Host: 12Mbps USB Device: 12Mbps |
6.14" x 4.32" x 1.39" |
Power |
Operating Temperature |
Communication |
Dimensions (W x H x D) |
