Your connectivity and integration device enabling native communication between your control system and Mini/Multi-Split Heating and Air Conditioning (HVAC) systems
Your connectivity and integration device enabling native communication between your control system and Mini/Multi-Split Heating and Air Conditioning (HVAC) systems

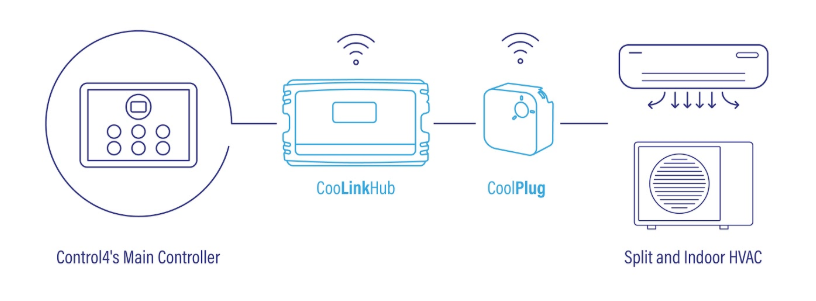

CoolPlug, along with CooLinkHub, allows dealers to integrate the Mini/Multi-Split HVAC system through a bi-directional communication bridge between the HVAC and control system keypads, thermostats, touch screens, and mobile app.
Ideal for retrofit projects with a wireless mesh network between multiple CoolPlugs and CooLinkHub.
Mini/Multi-Split HVAC Systems are designed with a closed communication system, and as such, are extremely challenging to connect to any external automation system.
CoolPlug enables a Mini/Multi-Split HVAC to be accessible and fully controllable through the a control system’s main controller, providing bi-directional communication with real-time feedback.
The CoolPlug Wireless - HVAC designated adapter, connects directly to the HVAC indoor unit on one side, and wirelessly to the CooLinkHub Wireless on the other. Our wireless network is designed as a proprietary 2.4 GHz mesh network.
The CooLinkHub, protocol converter allows SDDP integration with with climate control systems. Up to 10 CoolPlugs Wireless can be connected in a single CooLinkHub Wireless.
CoolPlug models are HVAC manufacturer specific. You are welcome to check your HVAC brand and model compatibility on our CoolPlug webpage (the list is at the bottom of the page).
If you do not see your equipment on our list, be sure to contact us for a brief consultation with our engineering team.
| CO-CP-WRLS-ME |
|---|
2.44 in x 2.44 in 1.22 in |
2 wire, non-polar, 20-24 AWG 3 wire, polar, 20-24 AWG |
0.4 Watt |
0.26lbs / 0.12 kg |
Wireless Range: 65ft /20m Spread Spectrum: 2.4 Ghz, Wireless mesh, 802.15.4 |
Indoor Unit, 8-20 VDC |
0% to 96% |
Dimensions (W x H x D) |
Features |
Power Consumption |
Weight |
Wireless Features |
Power Supply |
Humidity |
We want to make our Third-Party Partner program as easy as possible. That’s why we process all claims directly, without any third party telephone tag. Specific warranty terms and details from the manufacturer can be found here.
