Denon X1600 AV Receiver | 7.2 Channel x 80W

- By ordering this product with custom specifications you acknowledge that the sale is final and the product may not be returned or exchanged.

- Send us a sample of the wood that you would like the speaker to match. Your order will be placed on hold for up to 14 days as we wait for your wood sample. Samples not received after 14 days will cause your order to be canceled. Please send your physical sample along with a copy of your Triad Order attached to the address listed below.

Triad Speakers
Sales - RUSH - Paint Sample
15835 NE Cameron Blvd.
Portland, OR 97230
- Your order will be placed on hold for up to 14 days as we wait for your color sample. Samples not received after 14 days will cause your order to be canceled. Your sample must be of a solid color. Wood, multi colored wallpaper/fabrics and faux finishes CANNOT be sent as samples for custom paint matching. Please send your physical color sample along with a copy of your Triad Order attached to the address listed below.

Triad Speakers
Sales - RUSH - Paint Sample
15835 NE Cameron Blvd.
Portland, OR 97230

Add to cart
Description
Specs
Support
Description
Description

The Denon AVR-X1600H 7.2ch 4K Ultra HD AV receiver supports the latest 3D audio formats, including Dolby Atmos®, Dolby Atmos Height Virtualization Technology, DTS:X™ and DTS Virtual:X®. Advanced HDMI section (6 in / 1 out) with eARC and ALLM pass-through support for Dolby Vision, HDR10, HLG and HDCP 2.3 processing on all ports.

Denon X1600 AV Receiver | 7.2 Channel x 80W

The Denon AVR-X1600H 7.2ch 4K Ultra HD AV receiver supports the latest 3D audio formats, including Dolby Atmos®, Dolby Atmos Height Virtualization Technology, DTS:X™ and DTS Virtual:X®. Advanced HDMI section (6 in / 1 out) with eARC and ALLM pass-through support for Dolby Vision, HDR10, HLG and HDCP 2.3 processing on all ports. HEOS Built-in wireless music streaming (Wi-Fi and Bluetooth) supports Spotify®, Pandora®, Tidal, Deezer and more. Works with Amazon Alexa, Google Assistant and Apple Siri for seamless voice control. Includes remote monitoring support for custom integrators.

Pre-Order Status - Available for pre-order. Contact Partner Support at 866-424-4489 to place your order.
Receiver with logos of compatible streaming services below it

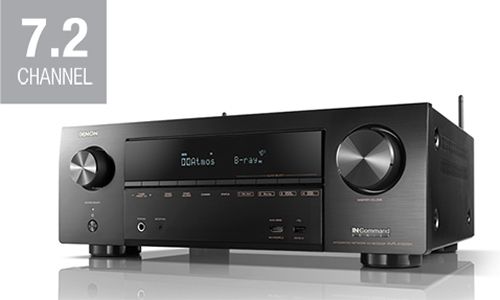

Front view of receiver with 7 channel icon in top left corner

Powerful 7-channel Amplifier with the Latest Home Cinema Specs

Featuring discrete high-current amplifiers on all channels, the AVR-X2700H delivers high-power performance of 95 watts per channel (8 Ohms, 20Hz-20kHz, THD: 0.05%, 2 ch. driven). Low impedance drivers provide operational stability for a wide range of speakers for balanced, tonal sound. The AVR-X2700H features an advanced HDMI section with HDCP 2.3 support, and video processing with 4K and 8K pass-through and upscaling for HDMI sources. Upgrade your customers’ expectations in home theater entertainment.

Zoomed-in view of front display with 3D Audio Experience icon in top left corner

Full 3D Audio Support

Immerse your customer in 3D audio with Dolby Atmos®, Dolby Atmos Height Virtualization Technology DTS:X®, DTS Virtual:X™. Set up a 5.1.2 Dolby Atmos surround system using Dolby Atmos elevation speakers, or dedicated overhead speakers, for the ultimate home theater experience. DTS:X gives movies, games and music a realism unmatched by traditional 5.1 surround sound. Dolby Atmos Height Virtualization Technology and DTS Virtual:X™ provide immersive audio without height channels creating virtual height effects.

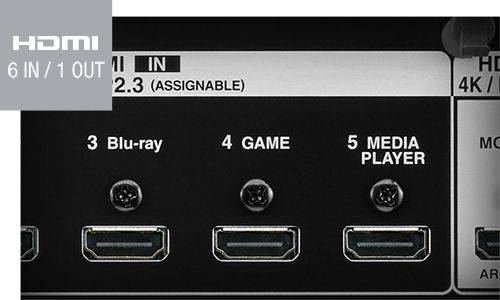

Zoomed-in view of HDMI outlets on back of receiver

Advanced HDMI Section with 6 HDMI Inputs with eARC Support

The AVR-X1600H features 6 HDMI inputs and 1 output that support 4K Ultra HD 60Hz video, 4:4:4 Pure Color sub sampling, Dolby Vision, High Dynamic Range (HDR10), Hybrid Log-Gamma (HLG), eARC, 3D, and BT.2020 passthrough support for exceptional color, clarity and contrast. The eARC – enhanced Audio Return Channel – supports 3D audio transmission directly from the TV to the AV receiver.

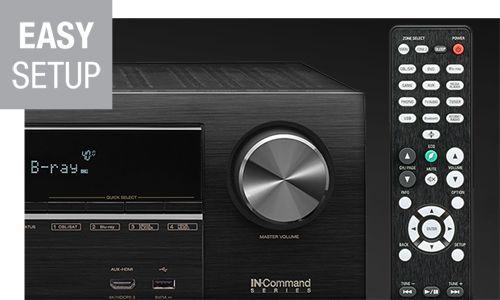

Zoomed-in view of AVR with remote on right and Easy Setup icon on top left corner

Easy Setup Experience

The included AVR-X1600H Quick Start Guide provides simple, clear setup instructions. Once you connect the TV to the AVR-X1600H via HDMI, the exclusive Denon Setup Assistant appears on the TV screen to walk you through setup, step by step. A row of color-coded speaker connections is laid out horizontally, making organizing and connecting speaker wires simple.

Line drawing of house with rooms outlined with streaming devices

HEOS Wireless Multi-Room Streaming

With HEOS built-in, customers can stream their favorite music throughout the property - even different songs in different rooms. You can even give your customers a fully customized solution with additional Denon Home speakers, soundbars, network players, and AV Receivers with HEOS built in. Compatible streaming services including Spotify®, TuneIn, Amazon Prime Music, Soundcloud®, Tidal, Deezer, and local music sources. Enable seamless control via the free HEOS app and with Amazon Alexa.

Receiver in background with voice assistant in foreground

Works with the Latest Voice Assistants

Provide effortless voice control and total flexibility from the leading voice services. Using a smart speaker or phone, customers can speak commands with Amazon Alexa, Google Assistant, Apple Siri and high-end smart home automation, Josh.ai. Ask to play favorite music, turn the volume up, skip to the next track, switch inputs and more. Switch between voice services or pick a favorite to use. Functionality varies by voice agent.

Specs
Specifications
DEN-AVR-X1600
7.2-Channel
Full 8K/60Hz and 4K/120Hz pass-through
Dolby Atmos®, Dolby Atmos Height Virtualization Technology, Dolby Surround, Dolby TrueHD, DTS:X™, DTS Virtual:X®, DTS HD Master, DTS Neural:X
AirPlay, Bluetooth, Wi-Fi, Internet Radio, Spotify Connect, Tidal, Deezer, iHeart Radio, Soundcloud, Mood Mix, Network Audio Streaming
3D / 4K / CEC / ARC / Enhanced ARC / HDR / HLG / Dolby Vision / ALLM pass-through / 3D Signal Pass-through
5 Inputs (Rear), 1 Input (Front), 1 Output
80 W (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive)
120 W (6 ohm, 1 kHz, 0.7% 2ch Drive)
175 W (6 ohm, 1 kHz, 10% 1ch Drive)
145 W (6 ohm, 1 kHz, THD 1%, 1 ch Drive)
Phono x1
Analog Audio x2
Digital Optical x2
USB Front x1
No
Yes
Yes
10 Hz-100 kHz - +1, -3 dB (Direct Mode)
430W
No
No
Antenna Horizontal: 17.1" × 13.3" × 6"
Antenna Vertical: 17.1" x 13.3" x 8.5"
19 lb

Channels
HDMI 4K Support
Supported Audio Formats
Streaming
Supported Video Formats
HDMI Connections
Power Output @ 8 ohm
Inputs
RS232 Control
Ethernet Ports
Limited to CI Dealers
Frequency Response
Power Consumption
IR Outputs
IR Inputs
Dimensions (W x H x D)
Weight
