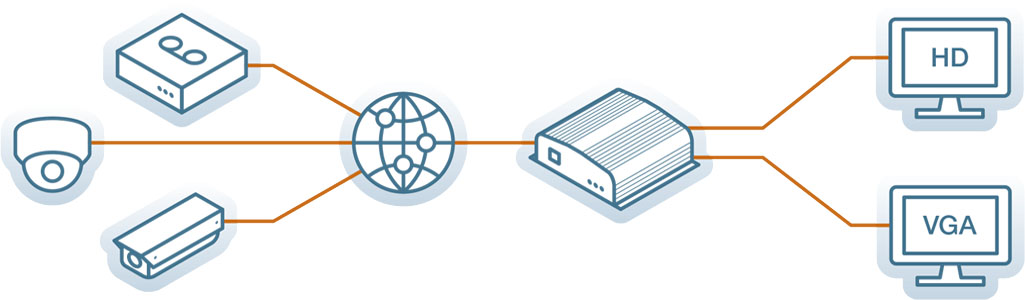

DW® Spot™ monitoring modules are NDAA/TAA compliant monitoring modules that let you view video from up to sixteen (16) cameras without connecting to them through a PC or server. The DW-HDSPOTMOD and DW-HDSPOTMOD16 are easy to use, automatically searching the network and identifying an unlimited number of ONVIF conformant IP cameras, UHDoC® VMAX® A1™ DVRs (via RTSP) or VMAX® IP Plus™ NVRs for local monitoring at up to 4K resolution output. The DW® Spot™ monitoring modules are ideal for retail and office environments, as well as for security personnel and is backed by DW’s unbeatable 5 year warranty.
Digital Watchdog 16-channel DW Spot Monitoring Module
DW® Spot™ monitoring modules are NDAA/TAA compliant monitoring modules that let you view video from up to sixteen (16) cameras without connecting to them through a PC or server. The DW-HDSPOTMOD and DW-HDSPOTMOD16 are easy to use, automatically searching the network and identifying an unlimited number of ONVIF conformant IP cameras, UHDoC® VMAX® A1™ DVRs (via RTSP) or VMAX® IP Plus™ NVRs for local monitoring at up to 4K resolution output. The DW® Spot™ monitoring modules are ideal for retail and office environments, as well as for security personnel and is backed by DW’s unbeatable 5 year warranty.
Product Availability - Digital Watchdog has an extensive product line. To purchase licenses, project registration, or Silver & Gold Tier pricing please visit our Snap One Partner Stores. They have the ability to support these items you may not see on the website. Click here to find the branch near you.
DW Spot™ for Monitoring
The DW® Spot™ monitoring module is ideal for providing public views in retail and office environments, as well as providing camera views for security personnel at up to 4K output resolution.
Specs
Specifications
| DW-HDSPOTMOD16 |
|---|
5.47 in. x 4.84 in. x 1.25 in. (139 x 123 x 32 mm) |
-40 °F - 140°F (-40 °C - 60°C) |
True HD: 3840x2160, 1920x1080, 1280x720,
1024x768
VGA: 1920x1080, 1280x720, 1024x768 |
H.265, H.264 |
TCP/IP (STATIC, DHCP), DDNS and UPNP |
Dual-streaming |
20% - 90% |
DC12V, 1A |
Dimensions (W x H x D) |
Operating Temperature |
Supported Resolutions |
Video Compression |
Wireless Protocols |
Streaming |
Humidity |
Power Consumption |
