These MEGApix® IVA+™ IP camera is your gateway to powerful video analytics features. It is NDAA compliant and provides 5MP resolution at real-time 30fps. The MEGApix IVA cameras have a powerful engine to detect and classify people and vehicles in real time. IVA+ upgrade offers advanced Video Content Analysis detection capabilities. This camera includes a 2.7~13.5mm vari-focal auto-focus lens with motorized zoom, simultaneous H.265/H.264/MJPEG codec support, and Star-Light Plus™ color in near-total darkness technology for quality video in any lighting condition, all in an IP66-rated weather resistant bullet housing. All MEGApix® cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market
These MEGApix® IVA+™ IP camera is your gateway to powerful video analytics features. It is NDAA compliant and provides 5MP resolution at real-time 30fps. The MEGApix IVA cameras have a powerful engine to detect and classify people and vehicles in real time. IVA+ upgrade offers advanced Video Content Analysis detection capabilities. This camera includes a 2.7~13.5mm vari-focal auto-focus lens with motorized zoom, simultaneous H.265/H.264/MJPEG codec support, and Star-Light Plus™ color in near-total darkness technology for quality video in any lighting condition, all in an IP66-rated weather resistant bullet housing. All MEGApix® cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.

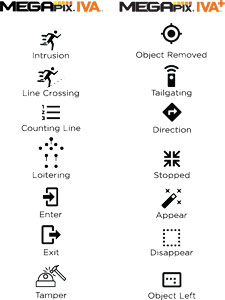

MEGApix IVA cameras have a powerful engine to detect and classify people and vehicles in real-time. IVA+ license upgrade offers advanced video content analysis detection capabilities.

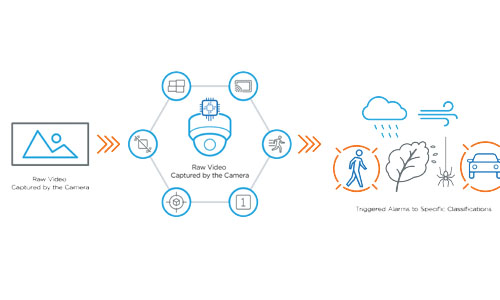

Logical Rules combine multiple zones and virtual tripwires linked together for a greater event detection level while reducing unwanted false alarms/positives.

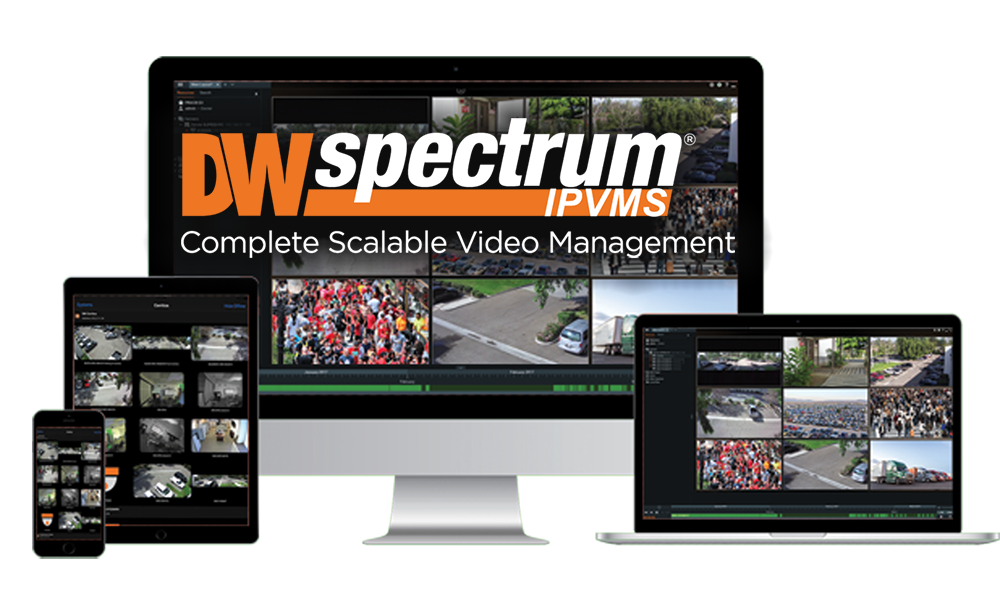

MEGApix IVA analytics are seamlessly integrated with DW Spectrum IPVMS for easy configuration, real-time alerts and automatic notifications.

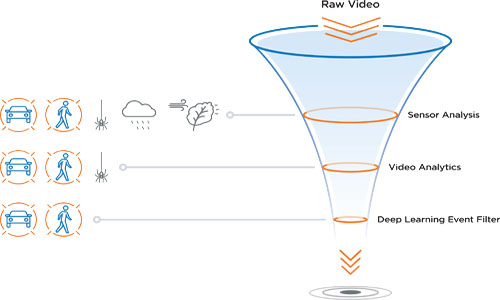

MEGApix IVA’s intelligent algorithms offer better object classification and identify environmental elements. The result is a substantial reduction in false alarms for control room operators and security personnel. Allowing only valid events to filter through MEGApix IVA cameras increase efficiency, and productivity and cuts unnecessary costs.
Star-Light Plus™ color in near-total darkness technology provides crisp, clear images in the absence of ambient light.
The installed heater helps the camera power up in extreme cold weather conditions where temperatures may go as low as -40°F. This makes the cameras ideal for any harsh environment installation.
DW-MPB45WIATW |
---|
IP66 |
White |
5MP 1/2.8” CMOS |
1/15 - 1/32000 |
2.7~13.5mm, F1.4 |
0.08 lux (color), 0.0 lux (B/W) |
Horizontal: 85-31°, Vertical: 62-24° |
140 ft. |
Yes |
Yes |
3D DNR |
Auto white balance |
Yes |
Yes |
Dual-stream at different rates and resolutions |
Yes |
Yes |
PoE Class 3 and DC12V |
Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari® OS: Windows®, Mac® OS, Linux® |
DC12V: max 9.0W, 750mA, PoE: max 10.5W |
PoE, IEEE 802.3af Class 3, (Adapter not included), 12V DC |
0-95% RH (non–condensing) |
ONVIF conformant, profile S, NDAA compliant, RoHS |
-40 °F - 122°F (-40 °C - 50°C) |
9.73 in. x 3.8 in. (247.2 x 96.7mm), *Dimensions based on the position of the sun shield cover |
1.98 lbs (0.9kg) |
Outdoor Rating |
Color |
Image Sensor |
Shutter Speed |
Lens |
Minimum Illumination |
Field of View |
IR Range |
Smart IR |
Backlight Compensation |
DNR |
White Balance |
Motion Detection |
Image Snapshot |
Streams |
SD Card Support |
Alarm Contact Inputs/Outputs |
Network / Ethernet Desc. |
Browser Support |
Power Consumption |
Power Requirements |
Humidity |
Certifications |
Operating Temperature |
Dimensions (W x H x D) |
Weight |
Compatible Accessories |
