Digital Watchdog MegaPix® 4K IVA+ Vandal Ball Turret IP Camera
DW-MPVD8WI28TW
Click to enlarge
Description
Specs
Support
Description
Description
This MEGApix® IVA™ Galaxy IP camera is your gateway to powerful video analytics features. It is NDAA compliant and provides 4K resolution at real-time 30fps. The MEGApix IVA+ cameras have a powerful engine to detect and classify people, vehicles and objects in real-time with support for logical rules. This camera features Star-Light Plus™ color in near-total darkness technology for quality video in any lighting condition, simultaneous H.265/H.264/MJPEG codec support and a 2.8mm fixed lens. The Galaxy weather-resistant vandal ball turret cameras are IP66-rated, eliminate IR reflections, offer easy angle adjustment for optimal image quality and easy access to the camera's control board from the base of the camera. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.
Digital Watchdog MegaPix® 4K IVA+ Vandal Ball Turret IP Camera
This MEGApix® IVA™ Galaxy IP camera is your gateway to powerful video analytics features. It is NDAA compliant and provides 4K resolution at real-time 30fps. The MEGApix IVA+ cameras have a powerful engine to detect and classify people, vehicles and objects in real-time with support for logical rules. This camera features Star-Light Plus™ color in near-total darkness technology for quality video in any lighting condition, simultaneous H.265/H.264/MJPEG codec support and a 2.8mm fixed lens. The Galaxy weather-resistant vandal ball turret cameras are IP66-rated, eliminate IR reflections, offer easy angle adjustment for optimal image quality and easy access to the camera's control board from the base of the camera. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.
Product Availability - Digital Watchdog has an extensive product line. To purchase licenses, project registration, or Silver & Gold Tier pricing please visit our Snap One Partner Stores. They have the ability to support these items you may not see on the website. Click here to find the branch near you.
Galaxy™ Vandal Turret Cameras

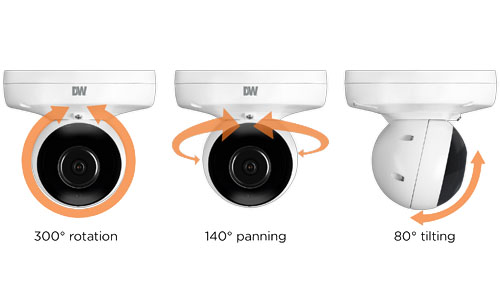

The unique Galaxy housing offers 80° tilting, 300° rotation and 140° panning, with no need to disassemble the dome cover.
Bubble-Free Dome
The camera’s bubble-free housing minimizes IR reflections caused by cobwebs, rain, dust, or sand.

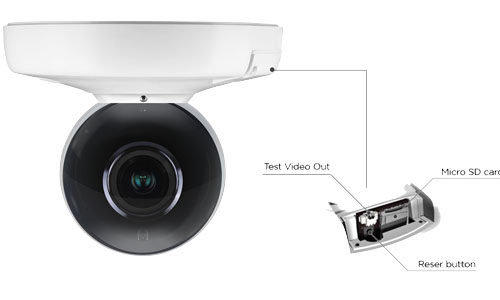

External OSD Control
The camera’s control panel, reset button, local video output and micro SD card slot are accessible from outside the camera’s housing, making maintenance and configuration simple and hassle-free.
IVA Integrates Seamlessly with DW Spectrum® IPVMS
MEGApix IVA analytics are seamlessly integrated with DW Spectrum IPVMS for easy configuration, real-time alerts, and automatic notifications.

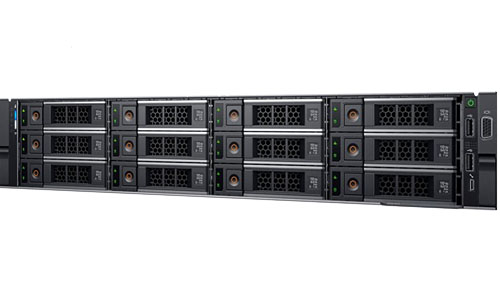

Improved Recording Management
Manage your recording storage smarter by fine-tuning events and alarms that are to be recorded. Combining IVA analytics, logic rules and non-detection zones, users can create specific conditions unique to their environment people and objects must trigger to activate an alarm. Smart management of your available storage.
IVA Analytics
MEGApix IVA cameras have a powerful engine to detect and classify people and vehicles in real-time. IVA+ license upgrade offers advanced video content analysis detection capabilities.

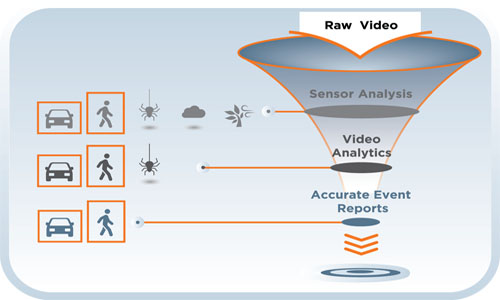

Reduce False Alarms
MEGApix IVA’s intelligent algorithms offer better object classification and identify environmental elements. The result is a substantial reduction in false alarms for control room operators and security personnel. By allowing only valid events to filter through MEGApix IVA cameras increase efficiency, productivity and cut unnecessary costs.
Star-Light Plus™ Color in Darkness Technology
Star-Light Plus™ color in near-total darkness technology provides crisp, clear images in the absence of ambient light.
Specs
Specifications
| DW-MPVD8WI28TW |
|---|
IP67 |
IK 9 |
White |
4K 1/2.8" CMOS sensor |
1/15 - 1/32000 |
2.3mm, F2.0 |
0.12 lux (color), 0.0 lux (B/W) |
Horizontal: 105.5°, Vertical: 56.3° |
100 ft. |
Yes |
Yes |
3D DNR |
Auto white balance |
Yes |
Dual-stream at different rates and resolutions |
Yes |
Yes |
PoE Class 3 and DC12V |
Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari® OS: Windows®, Mac® OS, Linux® |
DC12V: 9.8W PoE: 13.9W |
DC12V, PoE IEEE 802.3af Class 3 (Adapter not included) |
0-95% RH (non–condensing) |
ONVIF conformant, profile S, NDAA compliant, RoHS |
-22 °F - 140°F (-30 °C - 60°C) |
4.92 in. x 4.4 in. (125 x 112mm) |
1.87 lbs (0.85 kg) |
Outdoor Rating |
Protection Rating |
Color |
Image Sensor |
Shutter Speed |
Lens |
Minimum Illumination |
Field of View |
IR Range |
Smart IR |
Backlight Compensation |
DNR |
White Balance |
Motion Detection |
Streams |
SD Card Support |
Alarm Contact Inputs/Outputs |
Network / Ethernet Desc. |
Browser Support |
Power Consumption |
Power Requirements |
Humidity |
Certifications |
Operating Temperature |
Dimensions (W x H x D) |
Weight |
Compatible Accessories |
