Digital Watchdog MegaPix® 2.1MP PTZ IP Camera

DW-MPTZ230XTW
Image for

- By ordering this product with custom specifications you acknowledge that the sale is final and the product may not be returned or exchanged.

- Send us a sample of the wood that you would like the speaker to match. Your order will be placed on hold for up to 14 days as we wait for your wood sample. Samples not received after 14 days will cause your order to be canceled. Please send your physical sample along with a copy of your Triad Order attached to the address listed below.

Triad Speakers
Sales - RUSH - Paint Sample
15835 NE Cameron Blvd.
Portland, OR 97230
- Your order will be placed on hold for up to 14 days as we wait for your color sample. Samples not received after 14 days will cause your order to be canceled. Your sample must be of a solid color. Wood, multi colored wallpaper/fabrics and faux finishes CANNOT be sent as samples for custom paint matching. Please send your physical color sample along with a copy of your Triad Order attached to the address listed below.

Triad Speakers
Sales - RUSH - Paint Sample
15835 NE Cameron Blvd.
Portland, OR 97230

Add to cart
Description
Specs
Support
Description
Description

IP66 environmental-rated dust-tight and water-resistant and IK 10-rated impact-resistant for durability and longevity. Smart DNR™ 3D digital noise reduction. True day/night with mechanical IR cut filter.

Digital Watchdog MegaPix® 2.1MP PTZ IP Camera

IP66 environmental-rated dust-tight and water-resistant and IK 10-rated impact-resistant for durability and longevity. Smart DNR™ 3D digital noise reduction. True day/night with mechanical IR cut filter.

Product Availability - Digital Watchdog has an extensive product line. To purchase licenses, project registration, or Silver & Gold Tier pricing please visit our Snap One Partner Stores. They have the ability to support these items you may not see on the website. Click here to find the branch near you.
Image of the internal 3-axis gimbal

30x Optical Zoom

The optical zoom lens uses internal glass elements to bring an image up to 30x closer, allowing the magnified image to be recorded at full resolution.

Nighttime screen shot of a room

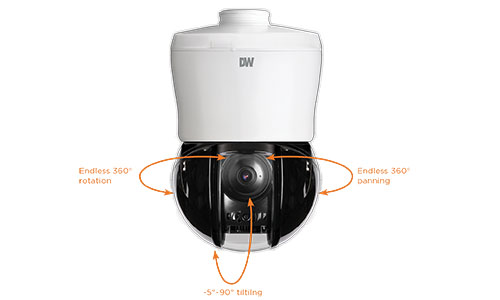

360° Endless Pan, Tilt Zoom IP Cameras

PTZ cameras are used to monitor wide areas. DW's PTZ cameras can move in endless 360° panning and tilting at 360° per second speed, and -5° - 190° tilting capabilities. The camera offers situational awareness all around, allowing users to move quickly from one point of interest to another.

DW diffusion diagram

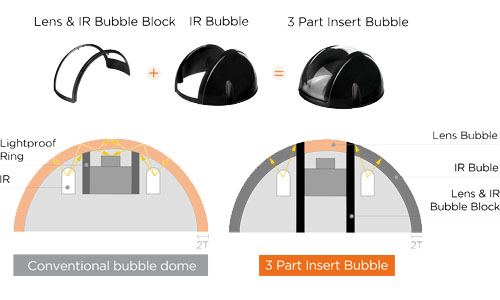

3-part Insert Bubble

DW’s unique 3-part insert bubble has a special lens and IR bubble block and a special black IR bubble, which act together to dramatically reduce IR reflections from entering the lens.

DW Spectrum IPVMS on a family of technology screens

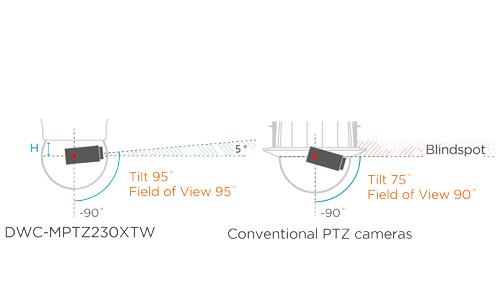

Remotely Controlled 95° Tilting

Cameras with True Wide Dynamic Range (WDR) technology have advanced sensors that can process a wider range of lighting, dark and bright in the same image.

DW diffusion diagram

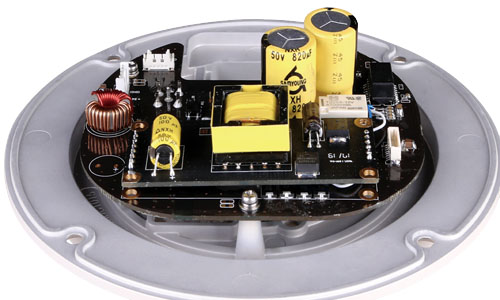

Compact Size

With a re-imagined board at the base of the camera, you can capture the power of a pan, tilt and zoom camera in a small and light housing that can be installed both indoors and outside.

DW Spectrum IPVMS on a family of technology screens

Smart IR

Smart IR™ adjusts the image for IR cameras to prevent excessive illumination on objects that are in the front of the scene and offers a clear image in B/W without any loss of detail.

Specs
Specifications
DW-MPTZ230XTW
IP66
IK10
White
2.1MP/1080p 1/3" CMOS
8 - 1/30000
4.3-129mm, F1.6~F4.7
0.05 lux (color), 0.0 lux (B/W)
Horizontal: 65.1 - 2.34°, Vertical: 38.4 - 1.36°
200 ft.
Yes
Yes
3D DNR
Range:360˚ endless
Speed: Max 360°/1sec
Presets: 255
Auto white balance
Yes
Yes
Dual-stream at different rates and resolutions
Yes
Yes
PoE Class 3 and DC12V
Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari®
OS: Windows®, Mac® OS, Linux®
AC24V: 35W, 1485mA, DC24V: 40W, 1666mA, PoE: 42W, 1750mA
24 V AC, PoE, PoE IEEE 802.3bt class5, (High power PoE injector included)
0-95% RH (non–condensing)
ONVIF conformant, profile S, NDAA compliant, RoHS
-40 °F - 122°F (-40 °C - 50°C)
5.9 in. x 9.13 in. (150 x 232mm), 12.2 in. x 3.81 in. (310 x 97mm)
6.17 lbs (2.8 Kg)

Outdoor Rating
Protection Rating
Color
Image Sensor
Shutter Speed
Lens
Minimum Illumination
Field of View
IR Range
Smart IR
Backlight Compensation
DNR
Pan Presets
White Balance
Motion Detection
Image Snapshot
Streams
SD Card Support
Alarm Contact Inputs/Outputs
Network / Ethernet Desc.
Browser Support
Power Consumption
Power Requirements
Humidity
Certifications
Operating Temperature
Dimensions (W x H x D)
Weight
