Digital Watchdog SiteWatch™ Quad Element IP PIR Motion Detector
DW-DTPIRIPW
Click to enlarge
Description
Specs
Support
Description
Description
The DW-DTMWIPW is a quad-element passive infrared (PIR), dual-tech external movement detector that combines advanced signal processing and unique optical systems. The detector’s quad PIR sensing module is equipped with two (2) volt-free outputs with a programmable beam range of up to 98.5ft (30m), avoiding boundary overspill and making it particularly effective for perimeter detection. Using PoE and IP communication, the DW-DTMWIPW supports direct integration with DW Spectrum® IPVMS, all major VMS and camera systems on the market.
Digital Watchdog SiteWatch™ IP PIR Motion Detector
The DW-DTMWIPW is a quad-element passive infrared (PIR), dual-tech external movement detector that combines advanced signal processing and unique optical systems. The detector’s quad PIR sensing module is equipped with two (2) volt-free outputs with a programmable beam range of up to 98.5ft (30m), avoiding boundary overspill and making it particularly effective for perimeter detection. Using PoE and IP communication, the DW-DTMWIPW supports direct integration with DW Spectrum® IPVMS, all major VMS and camera systems on the market.
Product Availability - Digital Watchdog has an extensive product line. To purchase licenses, project registration, or Silver & Gold Tier pricing please visit our Snap One Partner Stores. They have the ability to support these items you may not see on the website. Click here to find the branch near you.

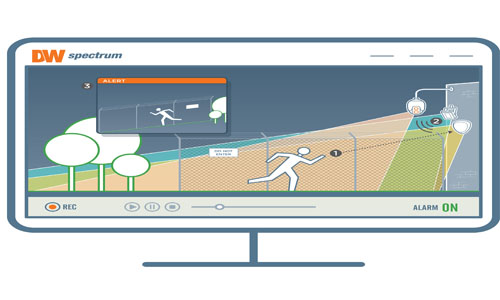

SiteWatch™ Detectors and Illuminators.
When the detectors detect motion, the illuminators can be programmed to turn on, and cameras can be activated to record. All devices can be controlled via DW Spectrum® IPVMS.

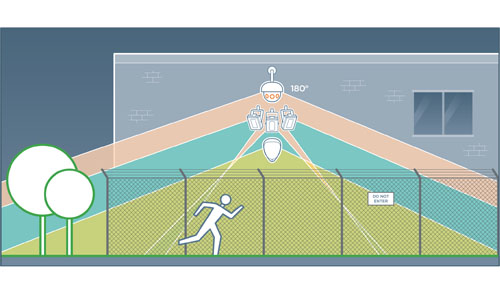

Amplify Panoramic Surveillance.
Combine detectors and illuminators with MEGApix® Pano™ multi-sensor and hemispheric fisheye cameras to create a formidable panoramic solution.

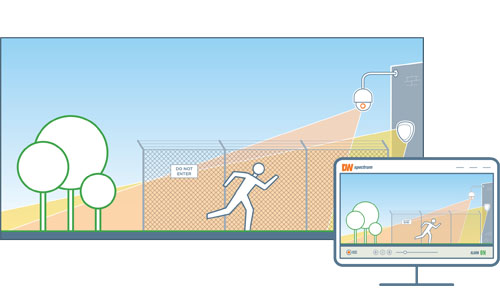

Motion Detectors and Laser Sensors for Daytime Monitoring.
SiteWatch™ motion detectors offer a programmable beam range of up to 1640ft (500m), offering truly exceptional resistance to false alarms.
Features
- External movement detector
- Quad-element PIR sensor
- Two (2) volt-free outputs
- Two (2) negative-switched outputs
- Programmable beam-range of up to 98.5ft (30m)
- Exceptional resistance to false alarms
- Advanced signal processing, quad-pyro and optical systems
- Trigger lights and smart devices when movement is detected
- 10° - 70° detection angle
- Direct integration with DW Spectrum® IPVMS
- Intruder notifications
- Set up lux-level events to operate blinds and curtains
- Environmental temperature monitoring to help manage internal air conditioning and heating
- Web interface built-in
- PoE class 1 and DC48V
- NDAA/TAA compliant
Specs
Specifications
| DW-DTPIRIPW |
|---|
4.72 in. x 5.7 in. x 4.52 in. (120 x 145 x 115mm) |
-4°F to 131°F (-20°C to +55°C), Conformally coated electronics for increased stability. |
IP65 |
10#176; - 70#176; detection angle,
98.5ft x 98.5ft (30m x 30m) max. |
Max 3.8W, PoE Class 1 |
Ethernet IEEE 802.3af, TCP/IP, Power over Ethernet (48V DC) |
Dimensions (W x H x D) |
Operating Temperature |
Outdoor Rating |
Coverage Area |
Power Consumption |
Power Requirements |
