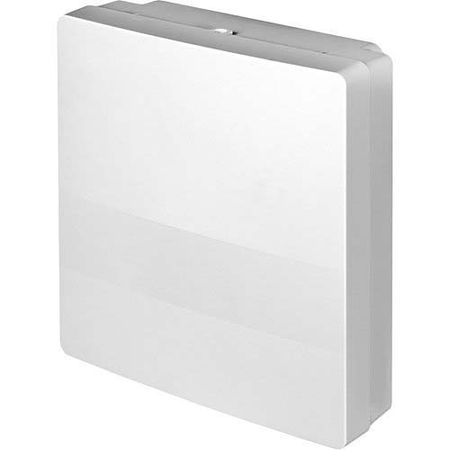

DSC PG9WLSHW8 PowerG Wired-to-Wireless Upgrade and Security System Expansion Module, IQ Hardwire PowerG
QD-PG9WLSHW8
Click to enlarge
Description
Support
Description
Description
Use the Tyco | PowerG Wired to Wireless Upgrade & Expansion Module to upgrade and enhance old security systems. Quick. Easy. Secure. The Tyco | PowerG Wired to Wireless converter leverages industry-leading PowerG wireless technology capabilities, featuring superior encryption and long range. 8 wired inputs enable to connect to 8 hardwired zones Normally Open / Normally Closed, Single End of Line and Double End of Line configuration 250ms loop response Support for: Up to 18 conventional 2-wire smoke detectors 4-wire smoke detectors CO detectors Siren output (Supervised) 12V @ 700mA 4 programmable PGM outputs PGM support for ON/OFF functionality Enhanced tamper protection with front and back cover tamper switches AC to DC power adapter output of 18VDC 2 Auxiliary independent power loops (500mA total) 24h battery backup (sold separately) located inside the device enclosure Enhanced security with the integrated power supply supervision
DSC PG9WLSHW8 PowerG Wired-to-Wireless Upgrade and Security System Expansion Module, IQ Hardwire PowerG
Use the Tyco | PowerG Wired to Wireless Upgrade & Expansion Module to upgrade and enhance old security systems. Quick. Easy. Secure. The Tyco | PowerG Wired to Wireless converter leverages industry-leading PowerG wireless technology capabilities, featuring superior encryption and long range. 8 wired inputs enable to connect to 8 hardwired zones Normally Open / Normally Closed, Single End of Line and Double End of Line configuration 250ms loop response Support for: Up to 18 conventional 2-wire smoke detectors 4-wire smoke detectors CO detectors Siren output (Supervised) 12V @ 700mA 4 programmable PGM outputs PGM support for ON/OFF functionality Enhanced tamper protection with front and back cover tamper switches AC to DC power adapter output of 18VDC 2 Auxiliary independent power loops (500mA total) 24h battery backup (sold separately) located inside the device enclosure Enhanced security with the integrated power supply supervision
- Industry-leading PowerG Wireless technology
- Connect siren, strobe and 4 PGMs for a full range of applications
- Enhanced security is enabled by the double end-of-line programming, tamper protection (including back tamper) and the integrated power supply supervision
- Lead acid backup is safely stored inside the plastic cabinet
- Use your favorite hardwired device from any hardwired portfolio and incorporate it into the PowerG ecosystem
