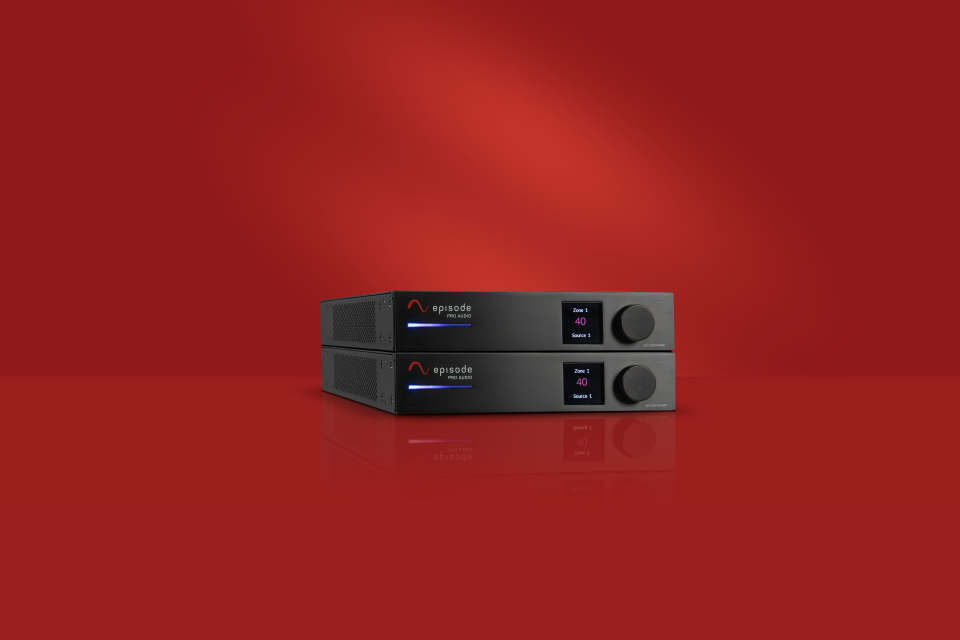

Episode Business Music MixAmp with 70V/100V/8ohm/4ohm Selectable Output
Episode Business Music Solution (EBMS) brings the Episode sound trusted by professionals worldwide to even more projects, with an extensive catalog of enterprise-level audio solutions for restaurants, gyms, retail spaces, and beyond. The Episode Business Music MixAmp features selectable 70V/100V/8-ohm/4-ohm outputs, along with powerful EQ and Compression DSP, and built-in matrixing, making it an ideal audio solution for commercial spaces.

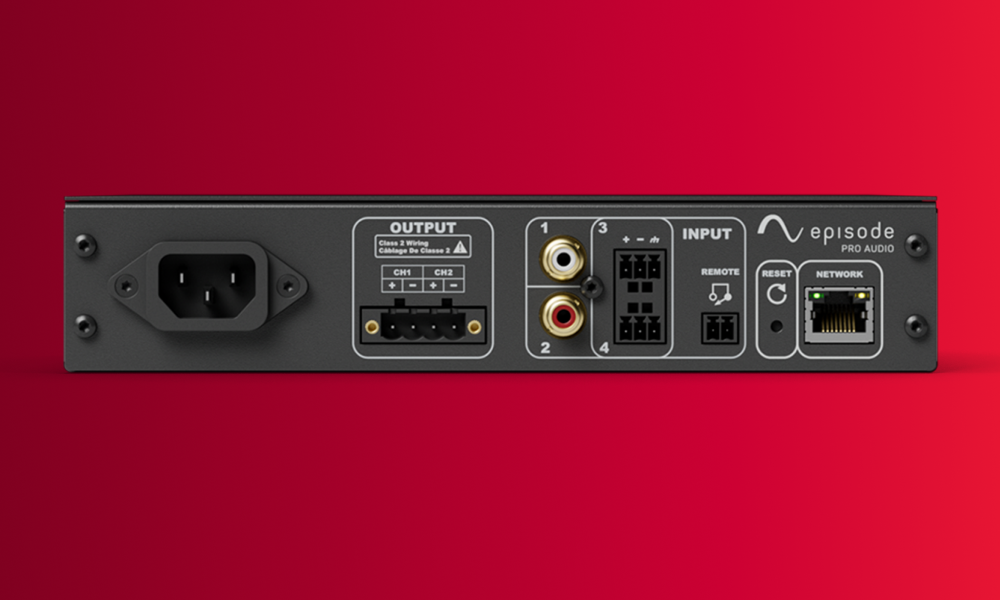

Variety of Source Types (Mic, Line, Balanced, Unbalanced)
Connect up to 2 sources to 2 zones for any application, from hospitality, bars, restaurants, corporate spaces, and everything in between.

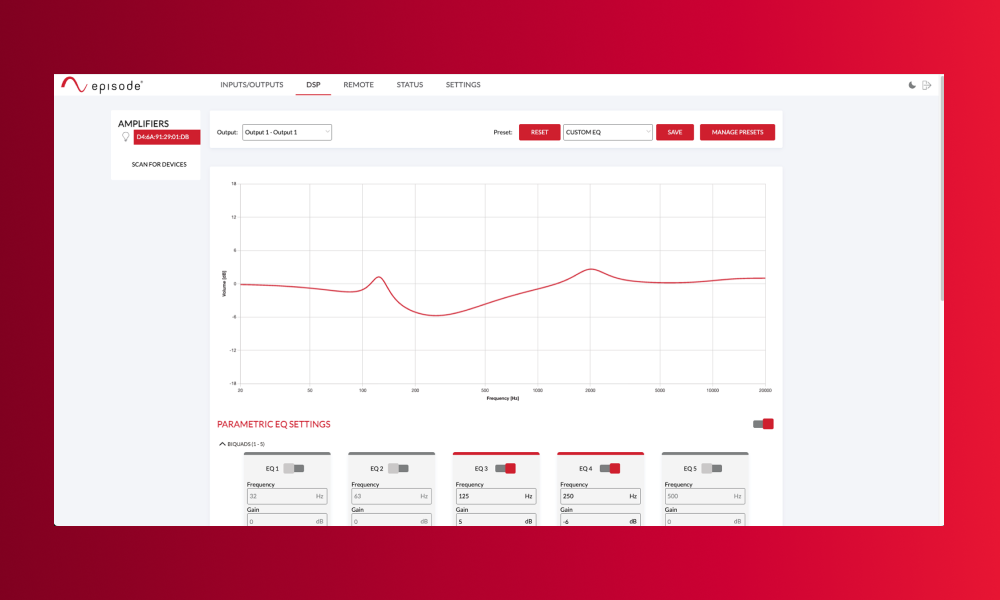

High-Powered DSP For Any Size Install
Tailor the audio system to match what’s needed for the space and application with tools to optimize gain structure, frequency response, and dynamic behavior. Input and output EQ, along with microphone processing features such as ducking, compression, gating, and de-essing, give you precise control over system tuning.

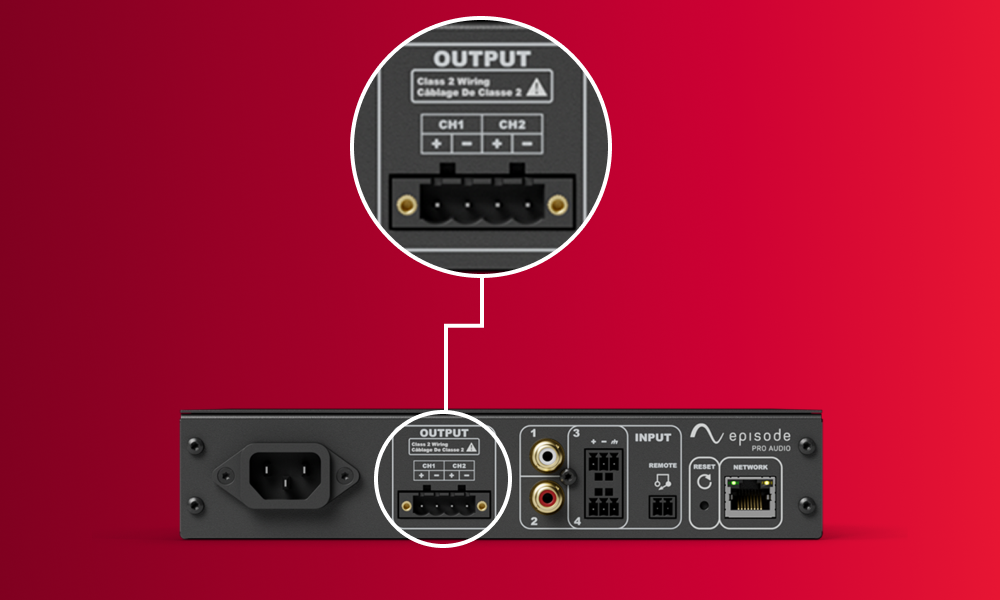

2-Channels of Robust Direct Drive Amplification Designed for Commercial Audio
160W of output per channel ensures crystal clear audio with power to spare, making this the perfect amp for background music, foreground music, paging, speech, and any other commercial application. Selectable 70V/100V/8-ohm/4-ohm output provides maximum flexibility in any install.

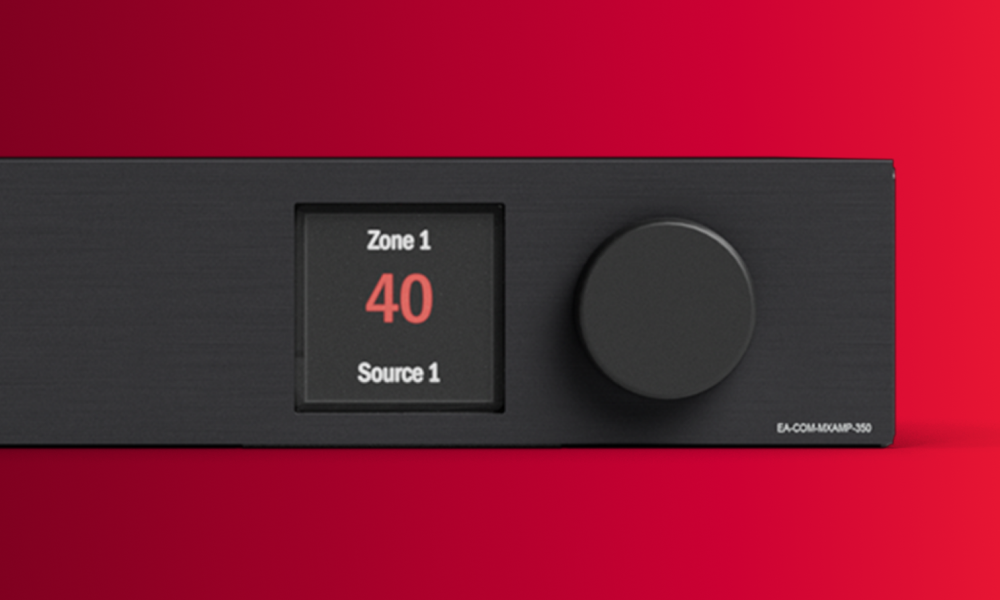

High-Resolution Color Front Panel Display
The easy-to-read, high-contrast color display makes navigation easy for any client, while light and dark modes enable it to blend into any space.

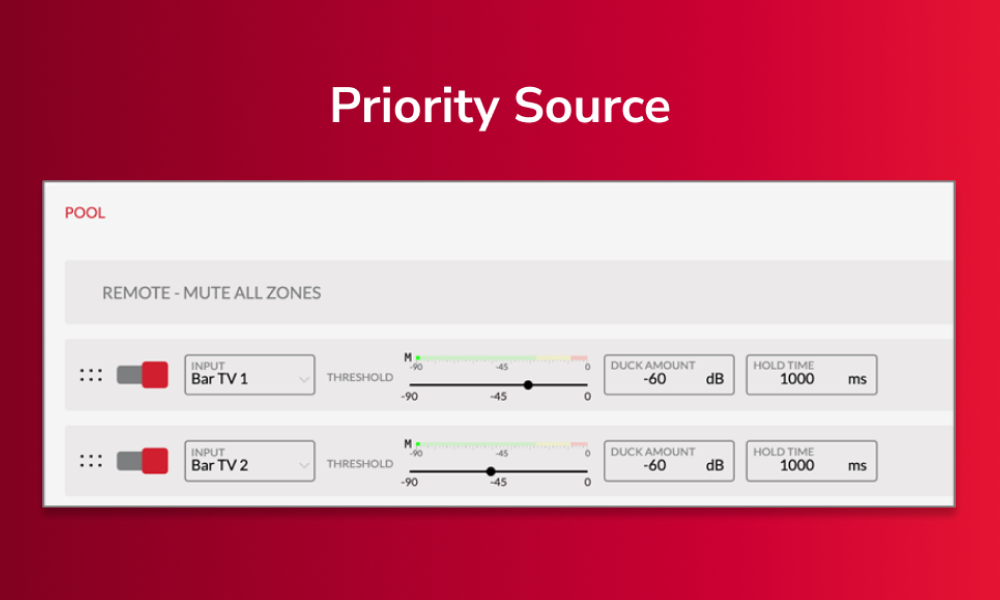

Priority Inputs and Ducking
Set priority inputs with configurable ducking to automatically playback any source when it senses a signal — great for paging microphones, message playback, or emergency communications.

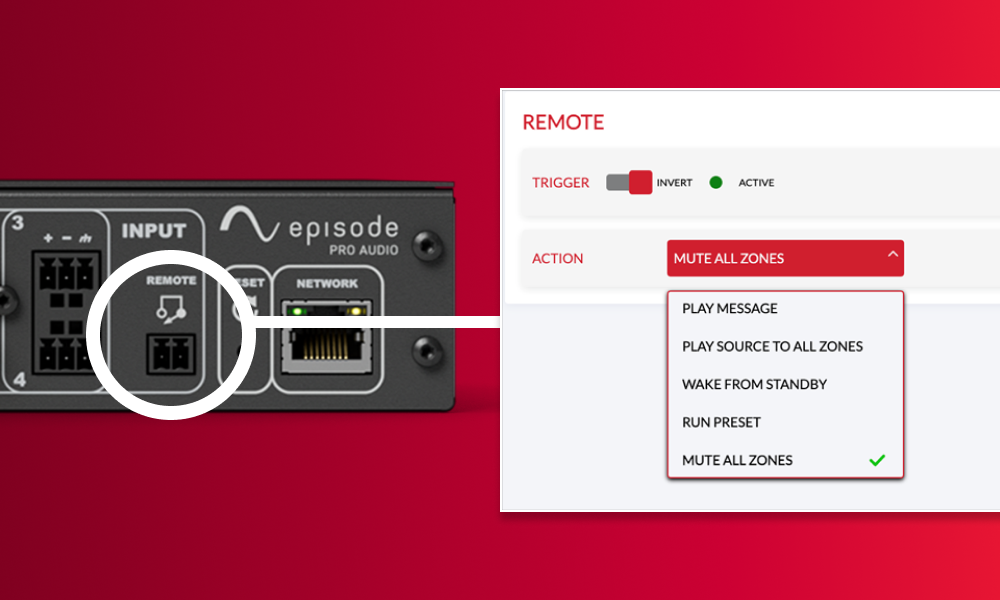

Remote Input for Automatic Action Triggering
The 2-pin contact closure can be configured to playback built-in or user-created audio messages, trigger a scene preset, mute all zones, play a source to any zone, and more.
Half Rack Profile for Minimal Rack Space
Fit plenty of power into a tight space with this amp's half-rack profile design. Enough room for as many Mixamps, DSPs and Amplifiers the job requires.
OvrC-Enabled
Utilize OvrC to simplify the complexity of setting up an audio system, allowing you to remotely monitor, configure, and troubleshoot without rolling a truck. Set up and tweak zones for the entire project, adjust volume up or down, change EQ settings for zones, switch sources, and more — all in one easy-to-use platform.
Specs
Specifications
| EA-COM-MXAMP-160 | EA-COM-MXAMP-350 |
|---|---|
2-Channel |
2-Channel |
101-200W |
301-500W |
160W RMS |
350W RMS |
160W RMS |
350W RMS |
0.8% THD+N @ 92Vrms, max load |
0.8% THD+N @ 92Vrms, max load |
20Hz to 20kHz, ± 2dB |
20Hz to 20kHz, ± 2dB |
3-Prong IEC-320 C-14 |
3-Prong IEC-320 C-14 |
CE, FCC CFR Part 15-Subpart B-Class B, RoHS2 Directive 2011/65/EU CE-marking, UL |
CE, FCC CFR Part 15-Subpart B-Class B, RoHS2 Directive 2011/65/EU CE-marking, UL |
Input signal = +20dBu, dynamic>98dB Input signal = -7.8dBu, dynamic>82dB |
Input signal = +20dBu, dynamic>98dB Input signal = -7.8dBu, dynamic>82dB |
20-90% RH (no condensation) |
20-90% RH (no condensation) |
"+14 ~ +122°F; -10 ~ +50°C (Indoor)" |
"+14 ~ +122°F; -10 ~ +50°C (Indoor)" |
-22 ~ +158°F; -30 ~ +70°C |
-22 ~ +158°F; -30 ~ +70°C |
6 lbs |
6 lbs |
9.5" x 1.75' x 14" |
9.5" x 1.75' x 14" |
55db Minimum @ full audio range |
55db Minimum @ full audio range |
20 Bands |
20 Bands |
115V / 230V Auto Switching |
115V / 230V Auto Switching |
Channels |
Watts Per Channel |
Power Output @ 4 ohm |
Power Output @ 8 ohm |
Total Harmonic Distortion (THD) |
Frequency Response |
Power Connection Type |
Certifications |
Dynamic Range |
Operating Humidity |
Operating Temperature |
Storage Temperature |
Weight |
Dimensions (W x H x D) |
Audio Crosstalk |
Parametric EQ |
Power Supply |
Support
5-Year Limited Warranty
This Episode® Amplifier product has a 5-Year Limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products which have been abused, modified or disassembled. Products to be repaired under this warranty must be returned to Snap One or a designated service center with prior notification and an assigned return authorization number (RA).
