Episode Business Music Bluetooth Audio Input Wall Plate

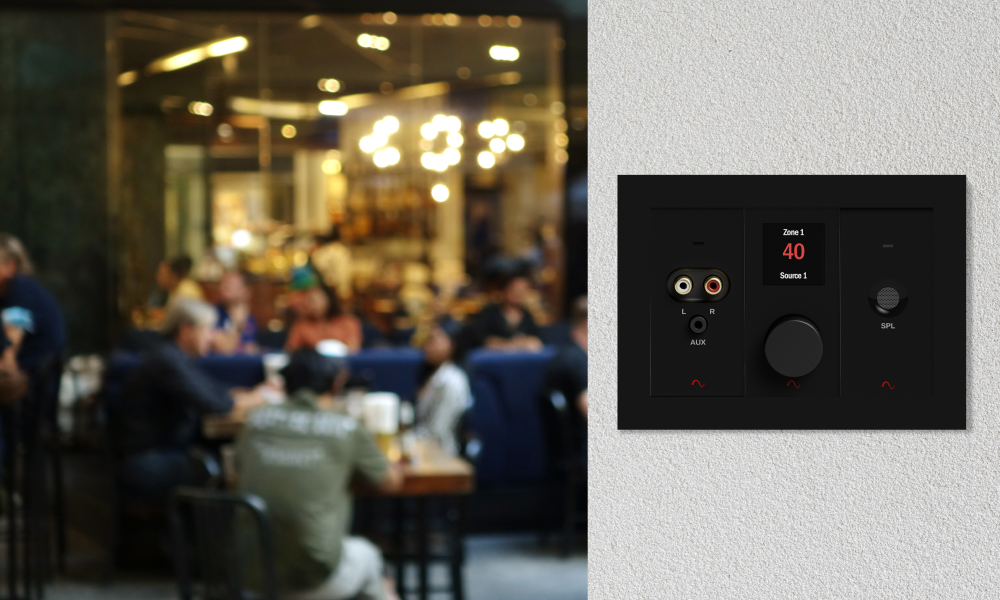

Episode Business Music Solution (EBMS) brings the Episode sound trusted by professionals worldwide to even more projects, with an extensive catalog of enterprise-level audio solutions for restaurants, gyms, retail spaces, and beyond. The fully configurable wall plate is built to withstand various environments, is fully customizable, and is MoIP-enabled for ultimate control flexibility.
Important Note - Compatible with EBMS DSPs and MoIP systems only.
When using with Binary MoIP or Episode MoIP Amps, a B-900-MOIP-4K-CTRL is required.
When using with Binary MoIP or Episode MoIP Amps, a B-900-MOIP-4K-CTRL is required.
Bring Your Own Device Flexibility
Bluetooth connectivity allows your client to connect their own Bluetooth device wirelessly for music playback, regardless of where the EBMS DSP is installed.

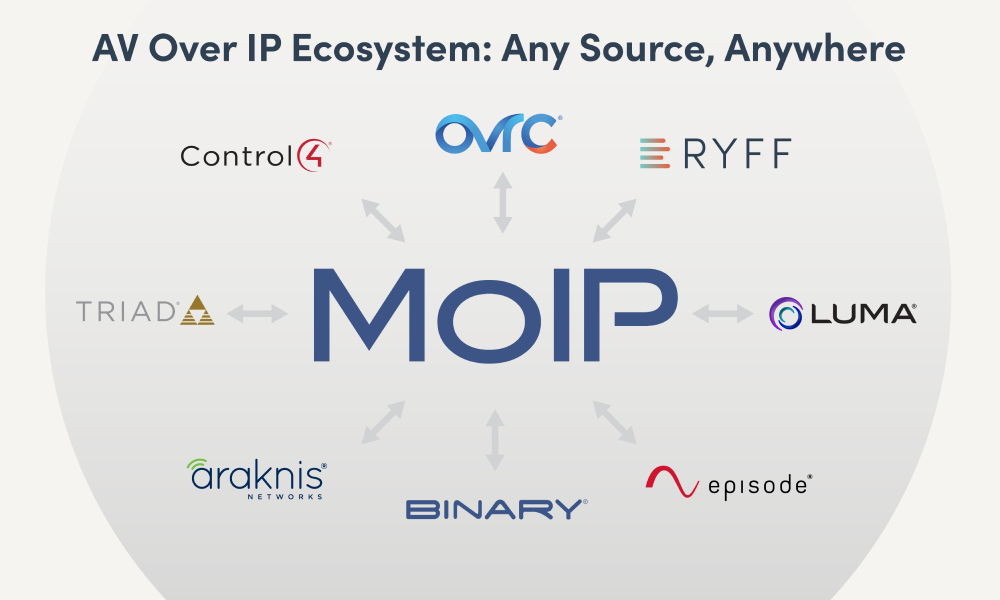

MoIP Enabled for Use With Any MoIP System
The built-in MoIP transmitter allows you to send audio to any MoIP receiver on the network, providing maximum flexibility in any install.
*MoIP Controller required when using with Binary MoIP devices or Episode MoIP Amps.
Fully Customizable and Configurable
Fully configurable pairing enables you to deliver the best experience for your clients. Don't want auto reconnect? No problem. Want to forget every connected device? Done.

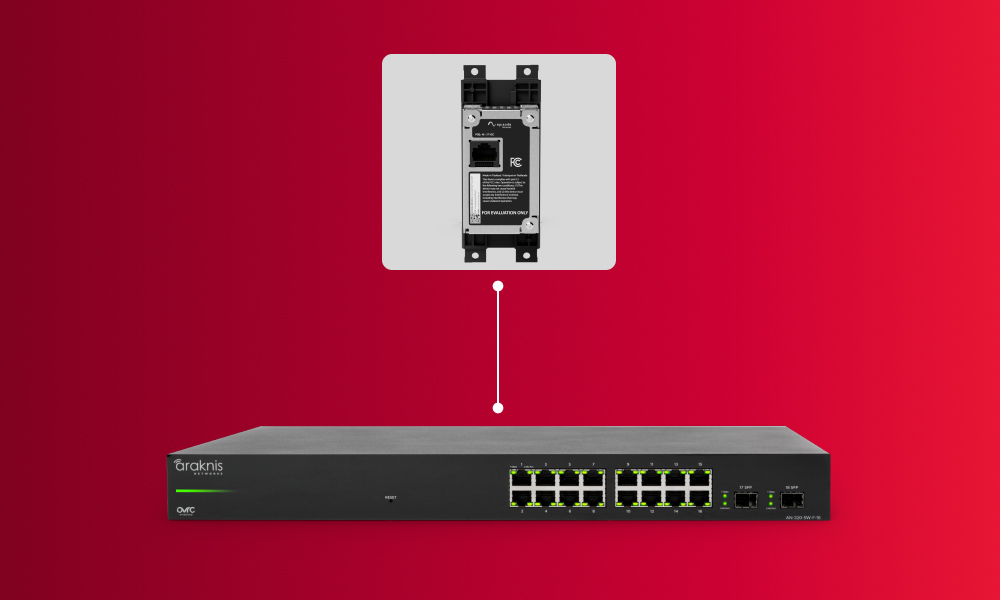

PoE Powered and Network Connected
Powered and controlled via a single CAT5e/6 cable connected to the network, this system offers easy installation and maximum control flexibility — you aren't limited to controlling one DSP in a space. Control any zone or source regardless of which zone controller you are at.
Maximum Durability in Any Environment

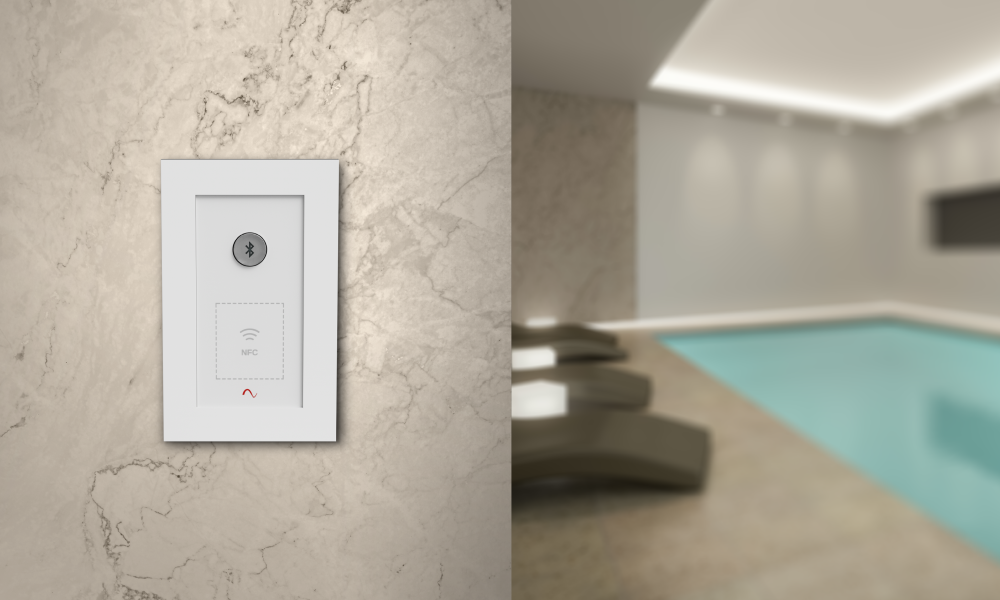

With a splash-proof design and acrylic, fingerprint-resistant face, this wall plate can withstand any indoor commercial space, from a busy kitchen to an indoor pool, and everything in between.
Patented Installation System
The exclusive, patented installation system is precisely engineered to provide a maximum working area and perfect alignment in a junction box or when installed straight into a wall. Side-by-side installation of multiple units provides a seamless, premium look. (Compatible with Control4 Lux 2-gang and 3-gang faceplates, sold separately)

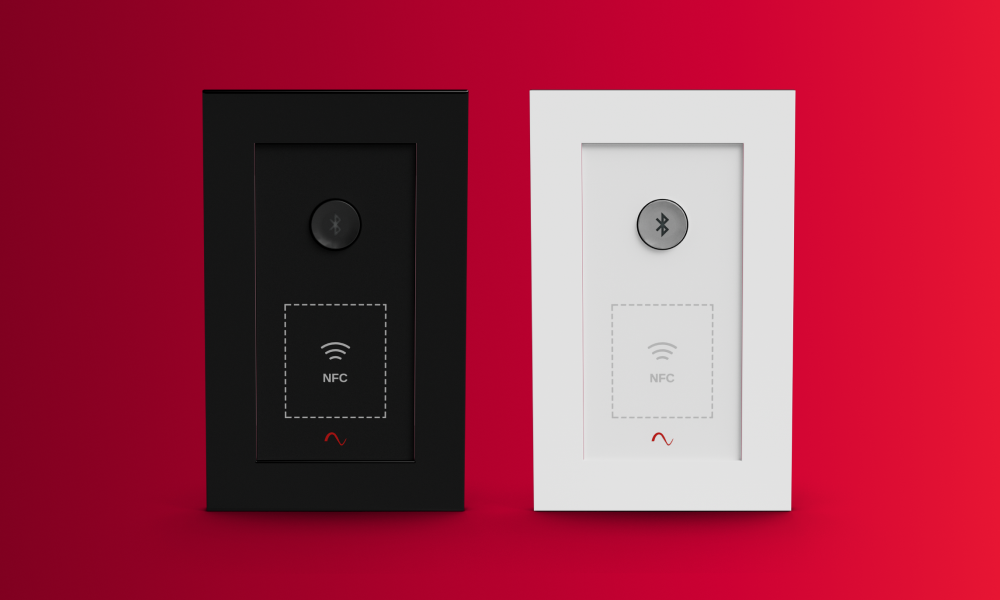

Available in Gloss White and Gloss Black
Its premium, scratch-resistant finish provides a professional, clean look for years to come in any environment. Single-gang faceplate included.
OvrC-Enabled

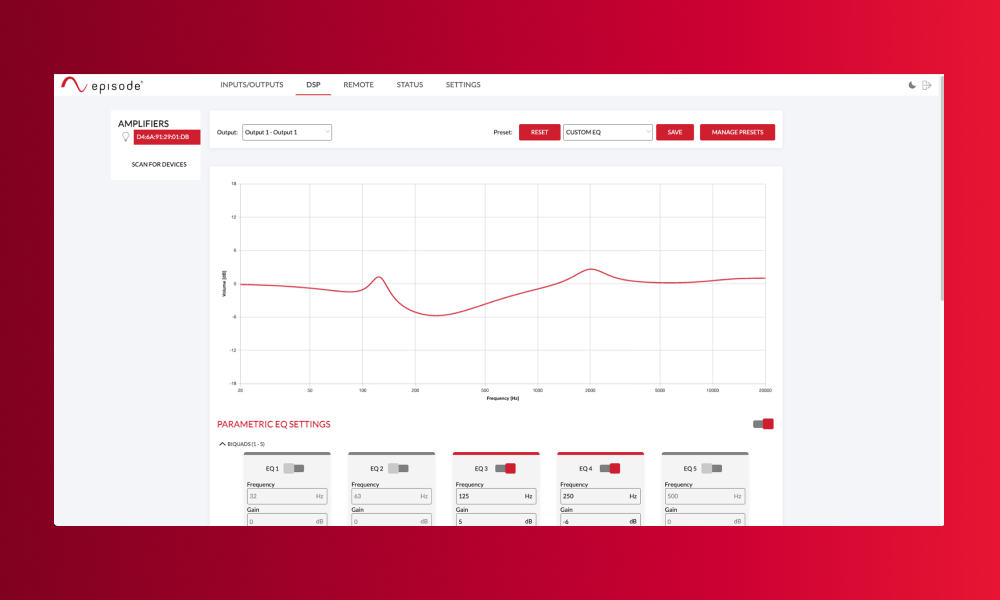

Utilize OvrC to simplify the complexity of setting up an audio system, allowing you to remotely monitor, configure, and troubleshoot without rolling a truck. Set up and tweak zones for the entire project, adjust volume up or down, change EQ settings for zones, switch sources, and more — all in one easy-to-use platform.
Specs
Specifications
| EA-COM-WP-BT-BL | EA-COM-WP-BT-WH |
|---|---|
Bluetooth Pairing Button, NFC Pairing Tag |
Bluetooth Pairing Button, NFC Pairing Tag |
4”h x 2.125”d x 2.125”w (Dimensions is without LAN cable installed) |
4”h x 2.125”d x 2.125”w (Dimensions is without LAN cable installed) |
20-90% RH (no condensation) |
20-90% RH (no condensation) |
"+14 ~ +122°F; -10 ~ +50°C (Indoor)" |
"+14 ~ +122°F; -10 ~ +50°C (Indoor)" |
Black |
White |
IEC 61000-4-2 Level 2 Contact, Level 3 Air-Gap, with additional testing based on port types (see reference documents) |
IEC 61000-4-2 Level 2 Contact, Level 3 Air-Gap, with additional testing based on port types (see reference documents) |
Reset button pinhole (Location on the back of the enclosure) |
Reset button pinhole (Location on the back of the enclosure) |
Metal |
Metal |
Overload, Over current, Short circuit; Temperature |
Overload, Over current, Short circuit; Temperature |
Control Features |
Dimensions (W x H x D) |
Operating Humidity |
Operating Temperature |
Color |
ESD Protection |
Reset Button |
Housing material |
Protection Rating |
Support
2-Year Limited Warranty
This Episode® product has a 2-Year Limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty will not apply to products which have been abused, modified or disassembled. Products to be repaired under this warranty must be returned to Snap One or a designated service center with prior notification and an assigned return authorization number (RA).
